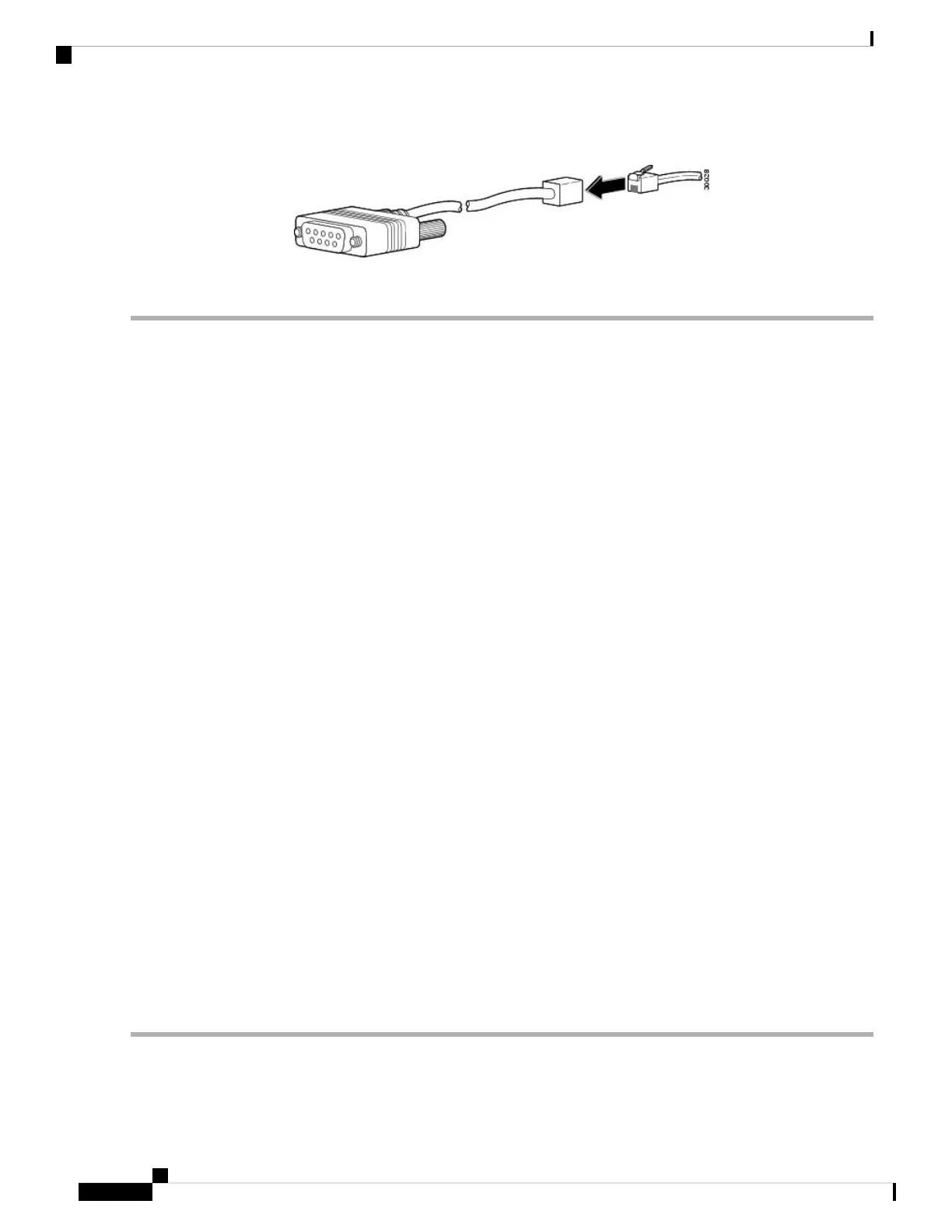

Figure 87: Connecting an RJ-45-to-DB-9 Adapter
Step 3 Connect the RJ-45-to-DB-9 adapter to the appropriate serial port on the terminal server.
What to do next
Route the cable through the Supervisor PIC cable management bracket and chassis-mounted fiber/cable routing
guide.
Cable Management for the Supervisor PIC in the Cisco cBR Chassis
The following accessories are used for routing the cables connected to the Supervisor PIC:
• Supervisor PIC cable management bracket
• Chassis-mounted cable strap-down clips
• Chassis-mounted snap-on plastic fiber/cable routing guides
Use the upper cable management bracket and fiber/cable routing guides for routing the cables connected to
the upper Supervisor PIC and the lower cable management bracket and fiber/cable routing guide for routing
the cables connected to the lower Supervisor PIC.
The strap-down clips have multiple uses. They can be used:
• to strap down cable bundles or conduit (there are multiple tie down points on each strap-down clip)
• as a base for two snap-on plastic fiber/cable routing guides
Before you begin
• Install the Supervisor PIC.
• Install the Supervisor PIC cable management bracket.
• Install the chassis-mounted cable strap-down clips and attach the snap-on plastic fiber/cable routing
guides, as necessary based on the cable routing preference.
• Connect the cables to the appropriate ports on the Supervisor PIC.
Required Tools and Equipment
• Cable ties
Step 1 Perform the following for the fiber-optic cables connected to the Supervisor PIC:
Cisco Converged Broadband Routers Hardware Installation Guide
124
Installing the Supervisor in the Cisco cBR Chassis
Cable Management for the Supervisor PIC in the Cisco cBR Chassis
