• Dust plugs for the SFP+ module
• Antistatic bag
Step 1 Disconnect the fiber-optic cable from the SFP+ port for removing the SFP+ module from the Supervisor PIC. Immediately
reinstall the dust plug in the optical bores and the fiber-optic cable LC connectors .
For reattachment of fiber-optic cables, note which connector plug is send (TX) and which is receive (RX).
Tip
Step 2 Release the bail clasp on the SFP+ module, by pushing the small tab up and outwards with your index finger to release
the bail clasp.

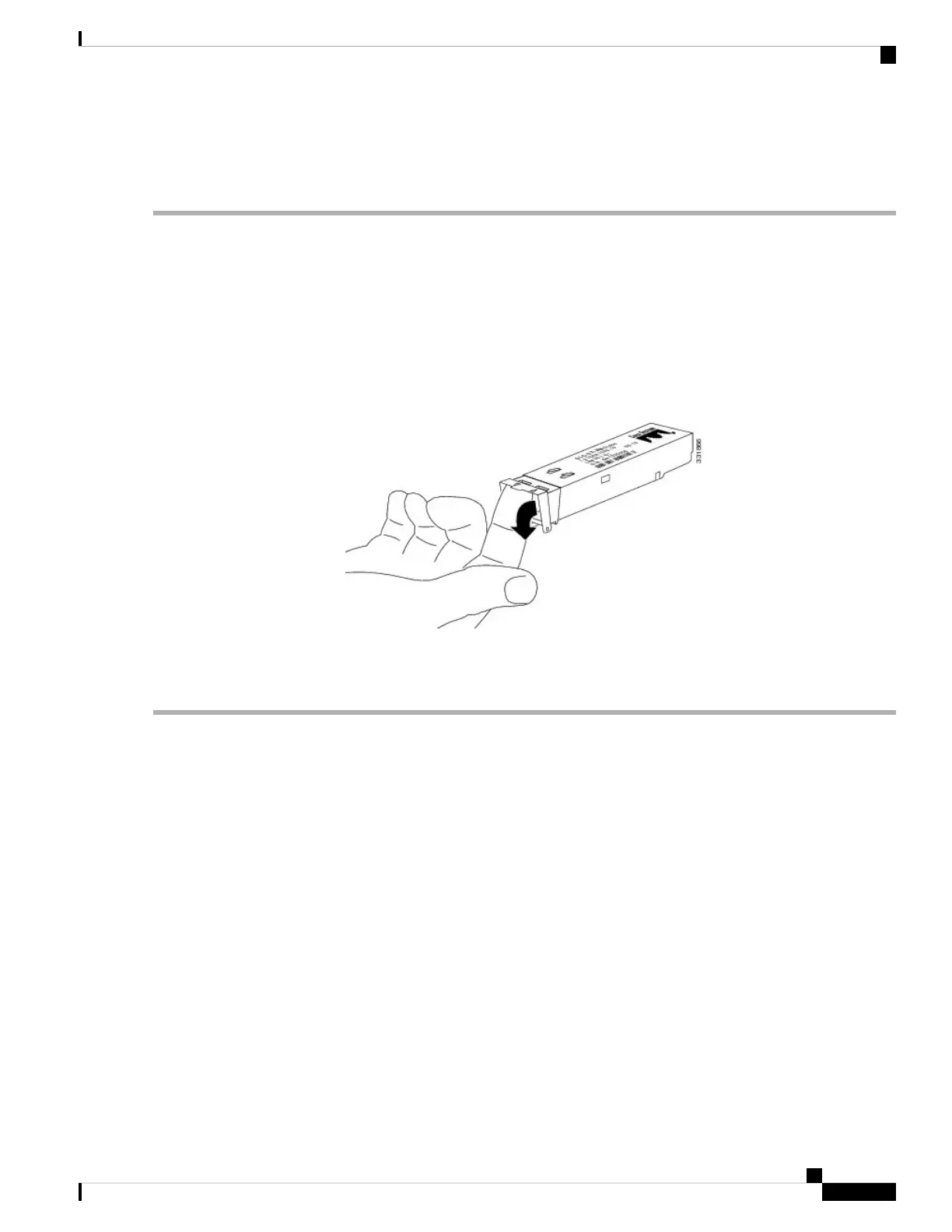

Figure 127: Removing the SFP+ Module Equipped with a Bail Clasp Latch with Tab
Step 3 Grasp the SFP+ module between your thumb and index finger and carefully remove it from the socket.
Step 4 Place the removed SFP+ module in an antistatic bag.
What to do next
Replace the SFP+ module (if required).
Removing the Supervisor PIC Cable Management Bracket
The Supervisor PIC cable management bracket is usually removed when the Supervisor PIC needs to be
replaced.
Before you begin
• Attach an ESD-preventive wrist strap to your wrist and connect the other end to the grounding lug
connected to the chassis.
• Remove all the cables that are routed through the Supervisor PIC cable management bracket.
Required Tools and Equipment
• ESD-preventive wrist strap
Cisco Converged Broadband Routers Hardware Installation Guide
203
Maintaining the Supervisor in the Cisco cBR Chassis
Removing the Supervisor PIC Cable Management Bracket
