Step 2 Connect the other end of the RJ-45 cable to the to the DTI server as a reference clock source.
What to do next
Route the RJ-45 cable through the Supervisor PIC cable management bracket and chassis-mounted fiber/cable
routing guide.
Using the NME Ports on the Supervisor PIC
Before you begin
• Install the Supervisor PIC.
• Install the Supervisor Card.
Required Tools and Equipment
• RJ-45 cable
• Switch
Step 1 Connect one end of the RJ-45 cable to the NME port on the Supervisor PIC.

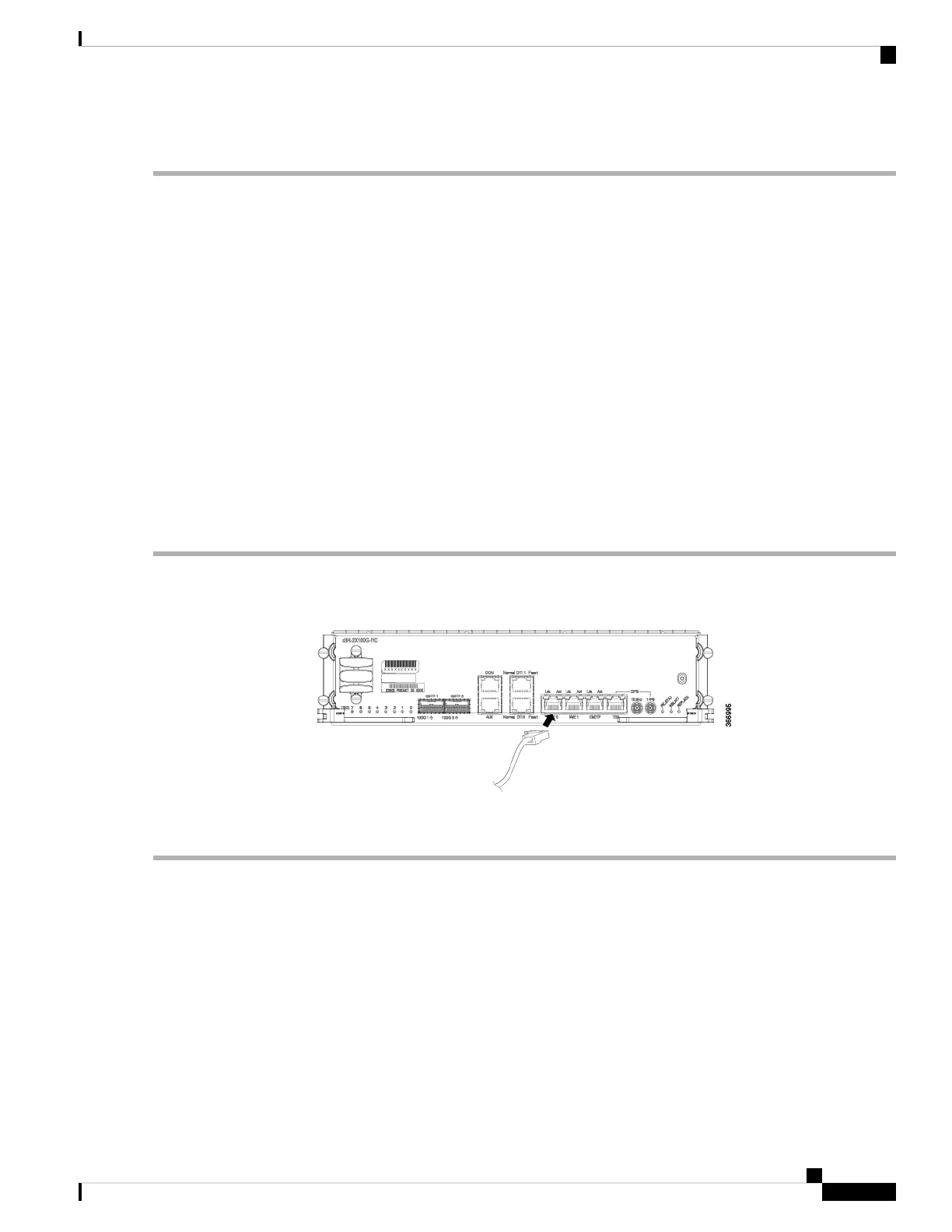

Figure 83: NME Port Connection on the Supervisor PIC
Step 2 Connect the other end of the RJ-45 cable to a switch.
What to do next
Route the RJ-45 cable through the Supervisor PIC cable management bracket and chassis-mounted fiber/cable
routing guide.
Using the Console Port on the Supervisor PIC
The console port provides local administrative access to the router and its command-line interface (CLI).
Cisco Converged Broadband Routers Hardware Installation Guide
121
Installing the Supervisor in the Cisco cBR Chassis
Using the NME Ports on the Supervisor PIC
