Cisco cBR Series Hardware Installation Guide

Before you begin
• Install the Supervisor PIC.
• Install the Supervisor Card.
Restrictions
• Each Supervisor PIC must have a console port connection when running a redundant configuration in
the chassis.
Required Tools and Equipment
• RJ-45 cable
• RJ-45-to-DB-9 adapter
• PC or terminal
Step 1 Connect one end of the RJ-45 cable to the console port on the Supervisor PIC.

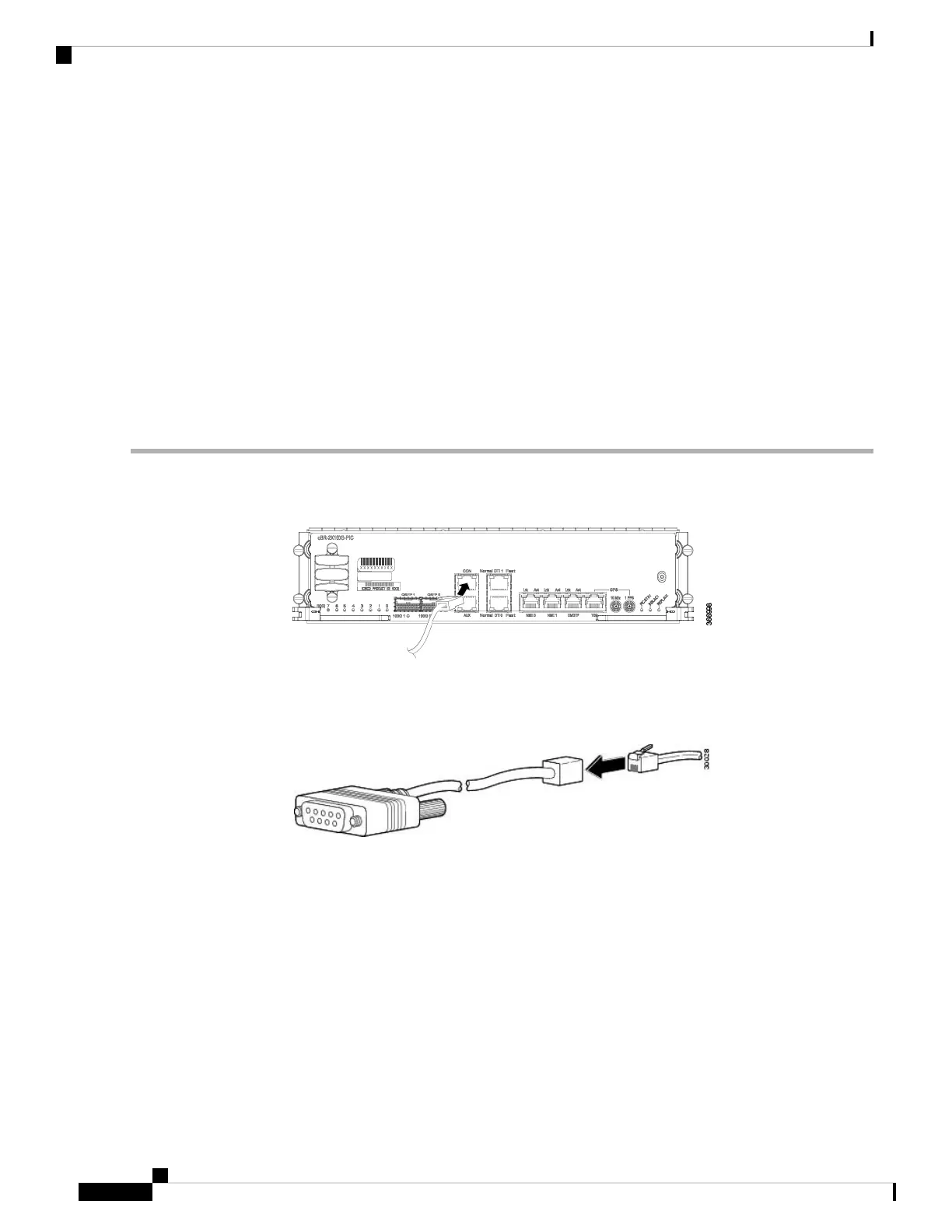

Figure 84: Console Port Connection on the Supervisor PIC
Step 2 Connect the other end of the RJ-45 cable to the RJ-45-to-DB-9 adapter.
Figure 85: Connecting an RJ-45-to-DB-9 Adapter
Step 3 Connect the RJ-45-to-DB-9 adapter to the appropriate serial port on the PC or terminal.
Step 4 Power up the PC or terminal.
Step 5 Configure the PC terminal emulation software or the terminal with the following settings:
• 9600 baud
• 8 data bits
• No parity generation or checking
• 1 stop bit
Cisco Converged Broadband Routers Hardware Installation Guide
122
Installing the Supervisor in the Cisco cBR Chassis
Using the Console Port on the Supervisor PIC
