Cisco cBR Series Hardware Installation Guide

• Attach an ESD-preventive wrist strap to your wrist and connect the other end to the grounding lug
connected to the chassis.
Required Tools and Equipment
• ESD-preventive wrist strap
• 3/16" flat-blade torque screwdriver
• RF Through PIC or RF Protect PIC or RF PIC Blank card
Step 1 Grasp the faceplate of the PIC with one hand and place your other hand under the PIC to support its weight.
Step 2 Carefully align the PIC with the plastic guides in the slot.
Step 3 Slide the PIC into the slot applying even pressure using both your hands until it is within an inch of full insertion.
Step 4 Open the ejector levers on the PIC and fully insert the PIC into the slot applying even pressure on both sides until it mates
with the midplane connectors.
To prevent damage to the midplane connector, do not use excessive force when inserting the card into the slot.
Caution
While installing a PIC Blank card, open the ejector levers and fully insert the PIC blank into the slot until the
ejectors touch the chassis flanges.
Note

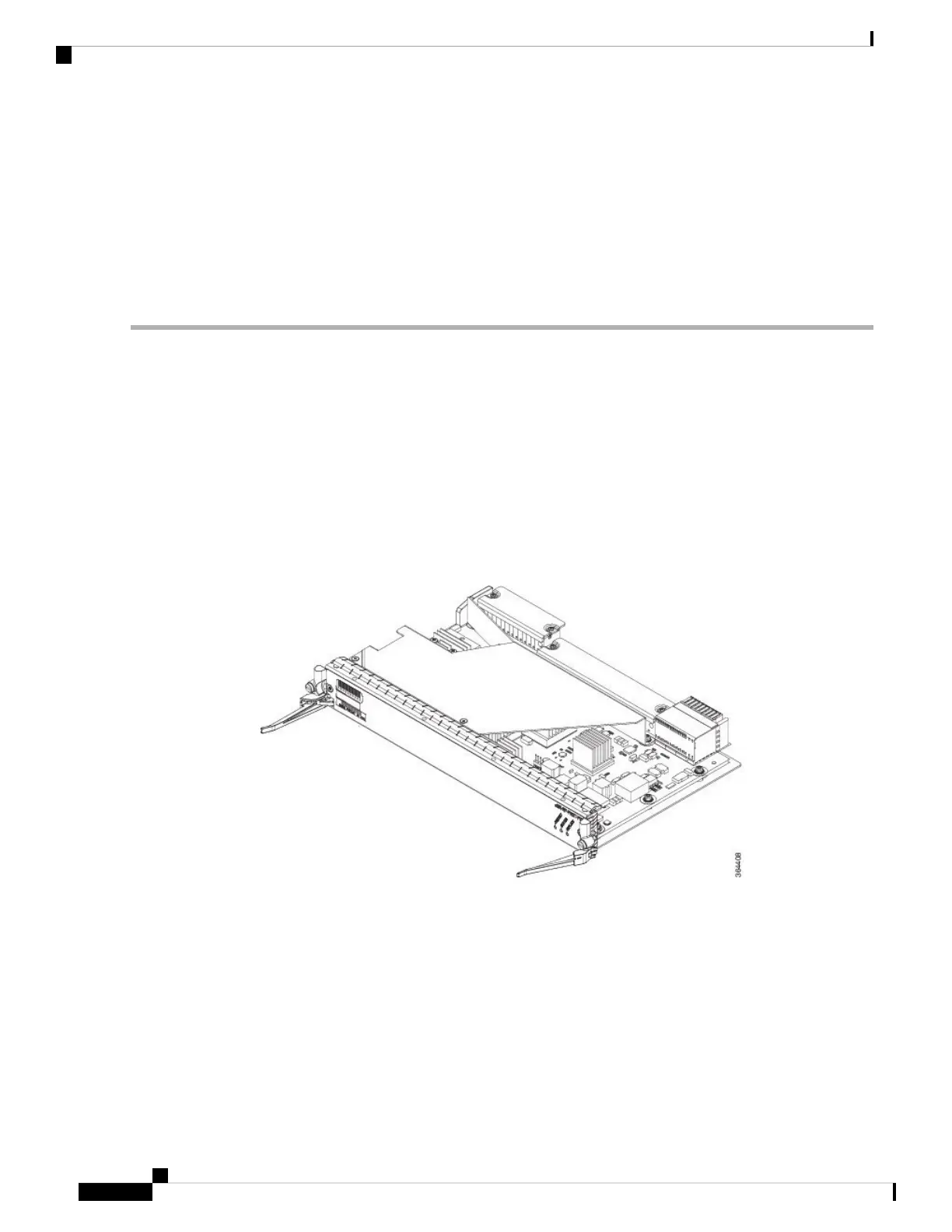

Figure 98: Opening the Ejector Levers on the PIC
Cisco Converged Broadband Routers Hardware Installation Guide
142
Installing the Interface Line and PIC Cards
Installing RF PIC in the Cisco cBR Chassis

Cisco cBR Series Specifications

General

Category	Network Router
Modular Design	Yes
Operating System	Cisco IOS XE
Model Examples	cBR-8, cBR-4
Product Series	cBR Series
Purpose	Converged Broadband Router
DOCSIS Support	DOCSIS 3.1
Redundancy	Yes
Management	Cisco Prime
Product Family	cBR Series
Downstream Frequency Range	Up to 1.2 GHz
Upstream Frequency Range	Up to 204 MHz
Modulation Schemes	QAM
Power Supply	Redundant AC or DC power supplies
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5 to 95% noncondensing
