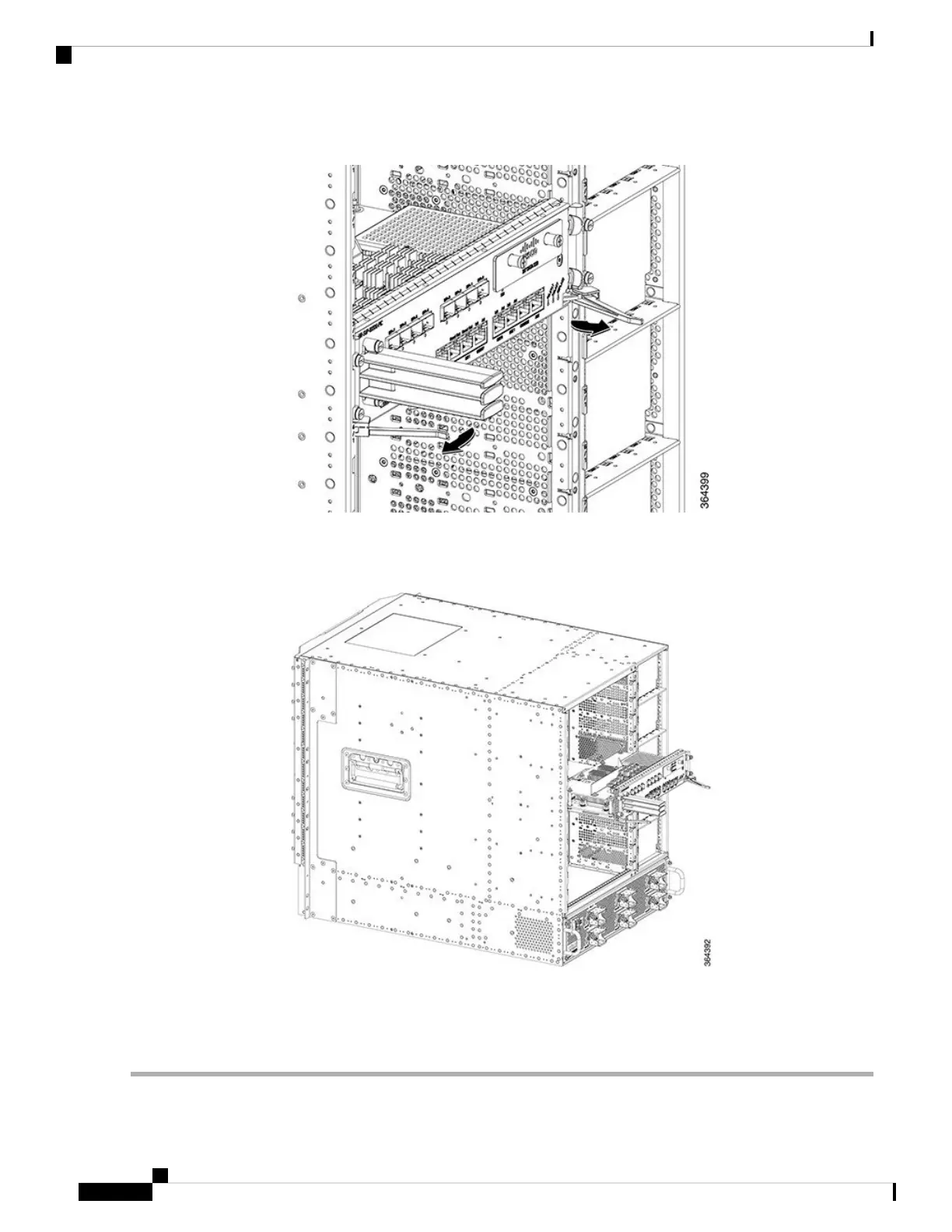

Figure 129: Opening the Ejector Levers on the Supervisor PIC

Step 3 Carefully slide the PIC out of the slot applying even pressure using both your hands.

Figure 130: Removing the Supervisor PIC from the Chassis

Step 4 Place the removed Supervisor PIC in an antistatic bag.

The removed blank PIC does not need to be placed in an antistatic bag.

Note

Cisco Converged Broadband Routers Hardware Installation Guide

206

Maintaining the Supervisor in the Cisco cBR Chassis

Removing the Supervisor PIC from the Cisco cBR Chassis
