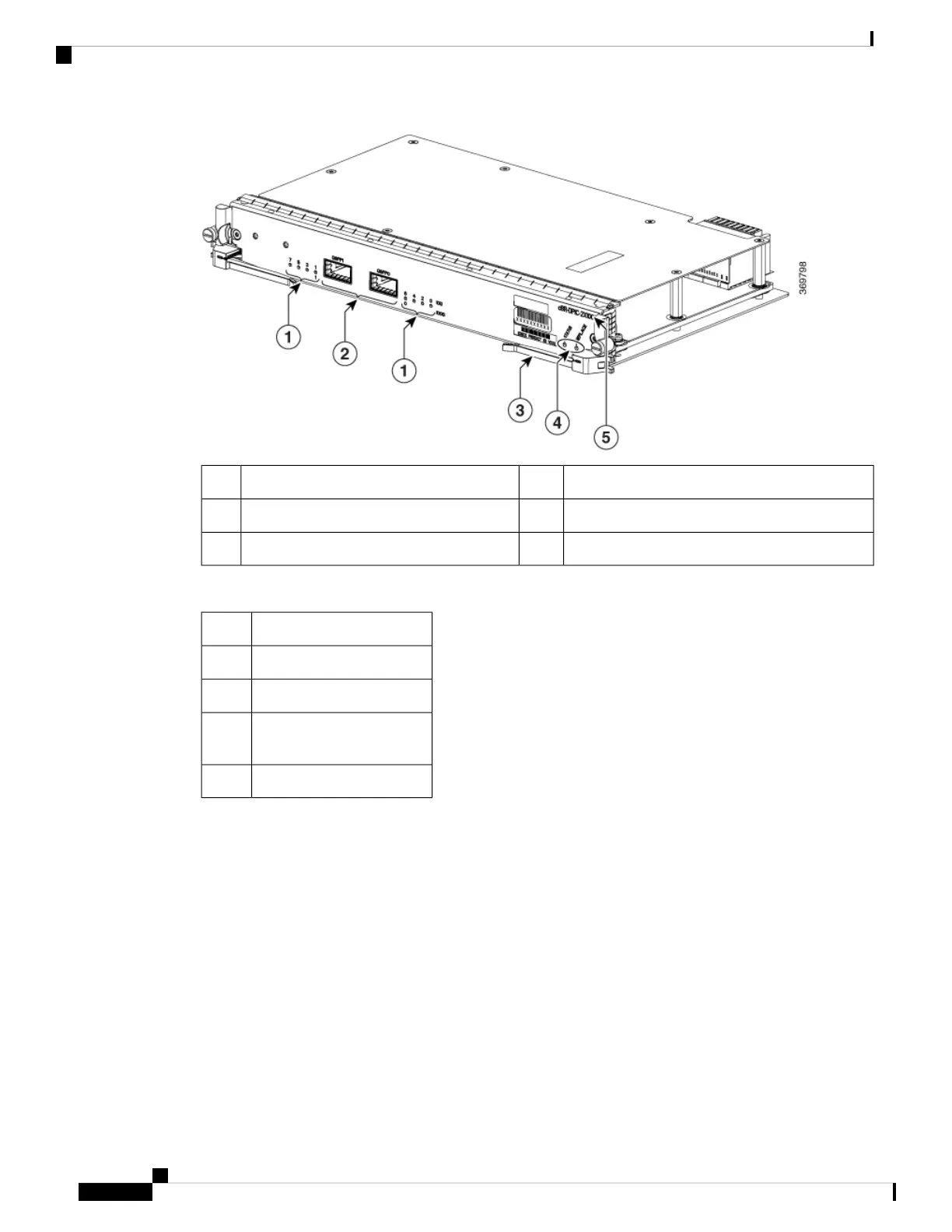

LEDs4Link LEDs1

Product Identifier (PID)5QSFP Ports2

Plastic latch3

Table 21: Physical Specifications of the 2x100G DPIC

DimensionsUnit

10.96 in (27.8cm)Width

1.43 in (3.6cm)Height

7.32 in (18.6cm) with

handle

Depth

2.943lb (1.335kg)Weight

The 2x100G DPIC supports:

• Two hundred gigabit Ethernet QSFP interfaces

• 100GE and 10GE working modes

• At least two 4x10G interfaces via breakout cables

• 1x100G + 1x100G interfaces with link layer redundancy

• QSFP-100GE-LR/QSFP-100GE-SR/QSFP-100GE-SM-SR/QSFP-40G-LR (4x10G mode) /QSFP-40G-SR

(4x10G mode) /QSFP-4X10G-AOCxM (4x10G mode) optic modules

• Backward compatible with SUP-60, SUP-160 and SUP-250

The faceplate of the 2x100G DPIC has the following:

• Optic Cable Clip—Helps route and manage the optic cables.
