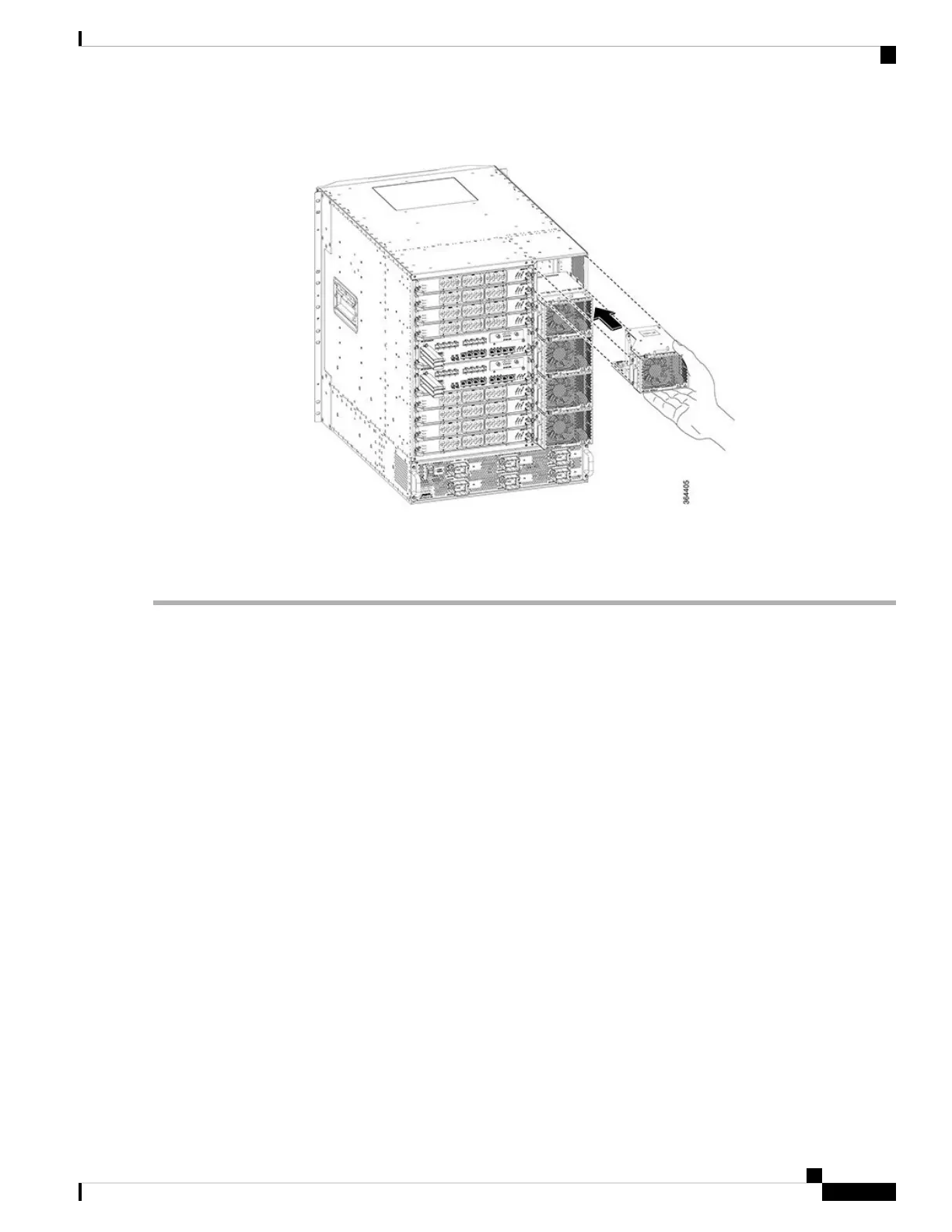

Figure 37: Aligning the Fan Module

Step 2 Tighten the captive screws on front left flange of the Fan Module.

To tighten the captive screws on the Fan Modules, apply 6-8 in-lb (0.67-0.90 Nm) torque.

Note

What to do next

• Visually check if the fans are working.

• If the RPLC LED on the Fan Module faceplate is illuminated, see Troubleshooting the Fan Assembly

section for corrective action.

Cisco Converged Broadband Routers Hardware Installation Guide

Installing the Fan Module in Cisco cBR

Installing the Fan Module in the cBR Chassis
