Cisco cBR Series Hardware Installation Guide

Before you begin
• Install the Power Cassette Module.
• Attach an ESD-preventive wrist strap to your wrist and connect the other end to the grounding lug
connected to the chassis.
• Be aware of the weight and size of the equipment. Handle it with care.
Required Tools and Equipment
• ESD-preventive wrist strap
• AC or DC FPEM
• T10 Torx torque screwdriver
Step 1 Remove the four #6-32 Torx-head screws located on the chassis mounting flanges using a T10 Torx torque screwdriver.
Step 2 Carefully slide the FPEM into the slot using the two handles applying even pressure to both the handles until the FPEM
is fully seated in the chassis.
To prevent damage to the midplane connectors, do not use excessive force when inserting the FPEM into the
slot.
Caution

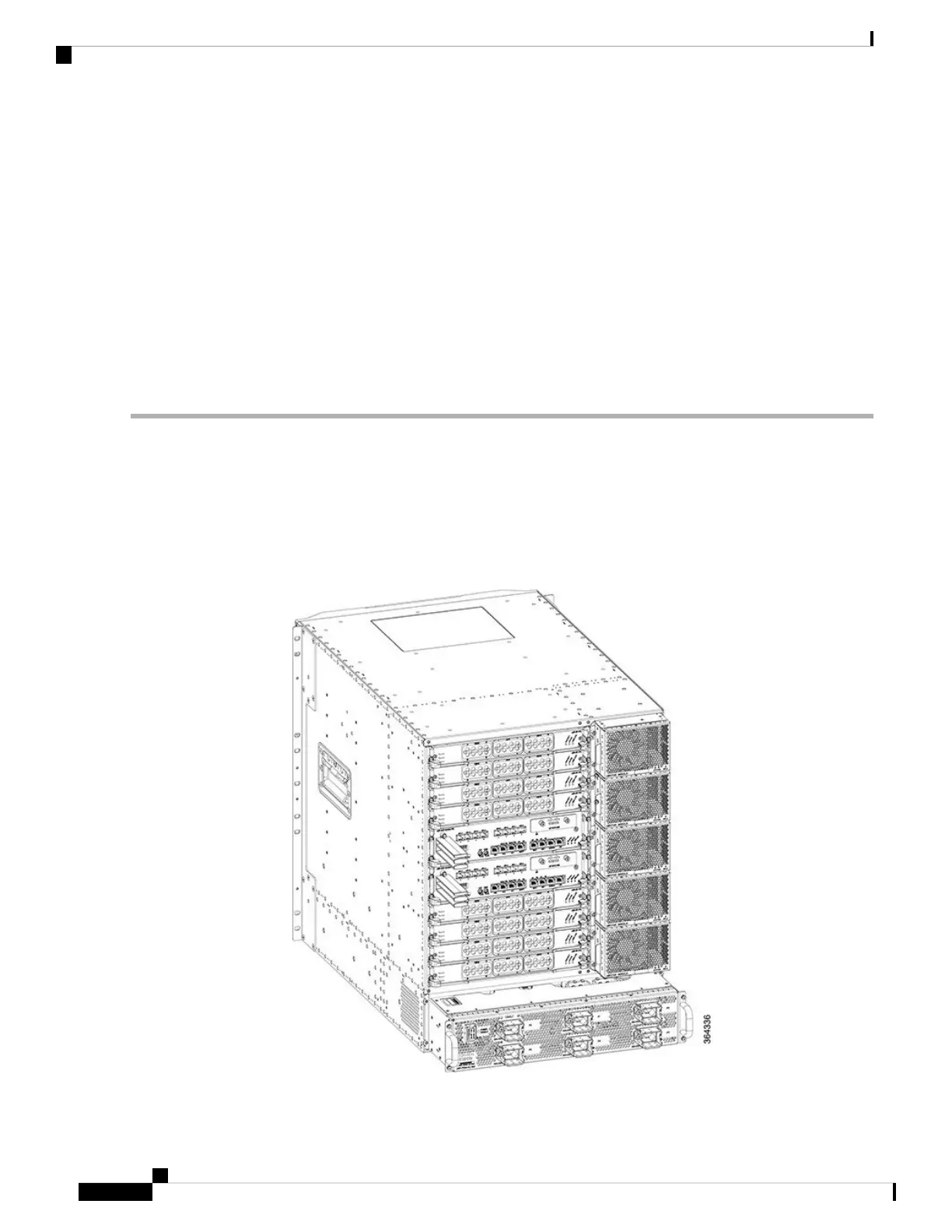

Figure 40: Installing the FPEM in the Chassis
Cisco Converged Broadband Routers Hardware Installation Guide
80
Installing the Power System in the Cisco cBR Chassis
Installing the FPEM in the Cisco cBR Chassis

Cisco cBR Series Specifications

General

Category	Network Router
Modular Design	Yes
Operating System	Cisco IOS XE
Model Examples	cBR-8, cBR-4
Product Series	cBR Series
Purpose	Converged Broadband Router
DOCSIS Support	DOCSIS 3.1
Redundancy	Yes
Management	Cisco Prime
Product Family	cBR Series
Downstream Frequency Range	Up to 1.2 GHz
Upstream Frequency Range	Up to 204 MHz
Modulation Schemes	QAM
Power Supply	Redundant AC or DC power supplies
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5 to 95% noncondensing
