Cisco D9865 User Manual

4-56 D9865 Satellite Receiver Installation and Operation Guide 4035197 Rev C
Setting the Unicast IP Address
Viewing the Unicast IP
Unicast transmission is used to send messages to a specific address. You can specify
up to six single network destinations. The Gateway address is necessary if the
network address is not on a local network.
Proceed as follows to view the Unicast IP addresses:
1. From the Network Setup screen, select Unicast IP Setup and click OK.

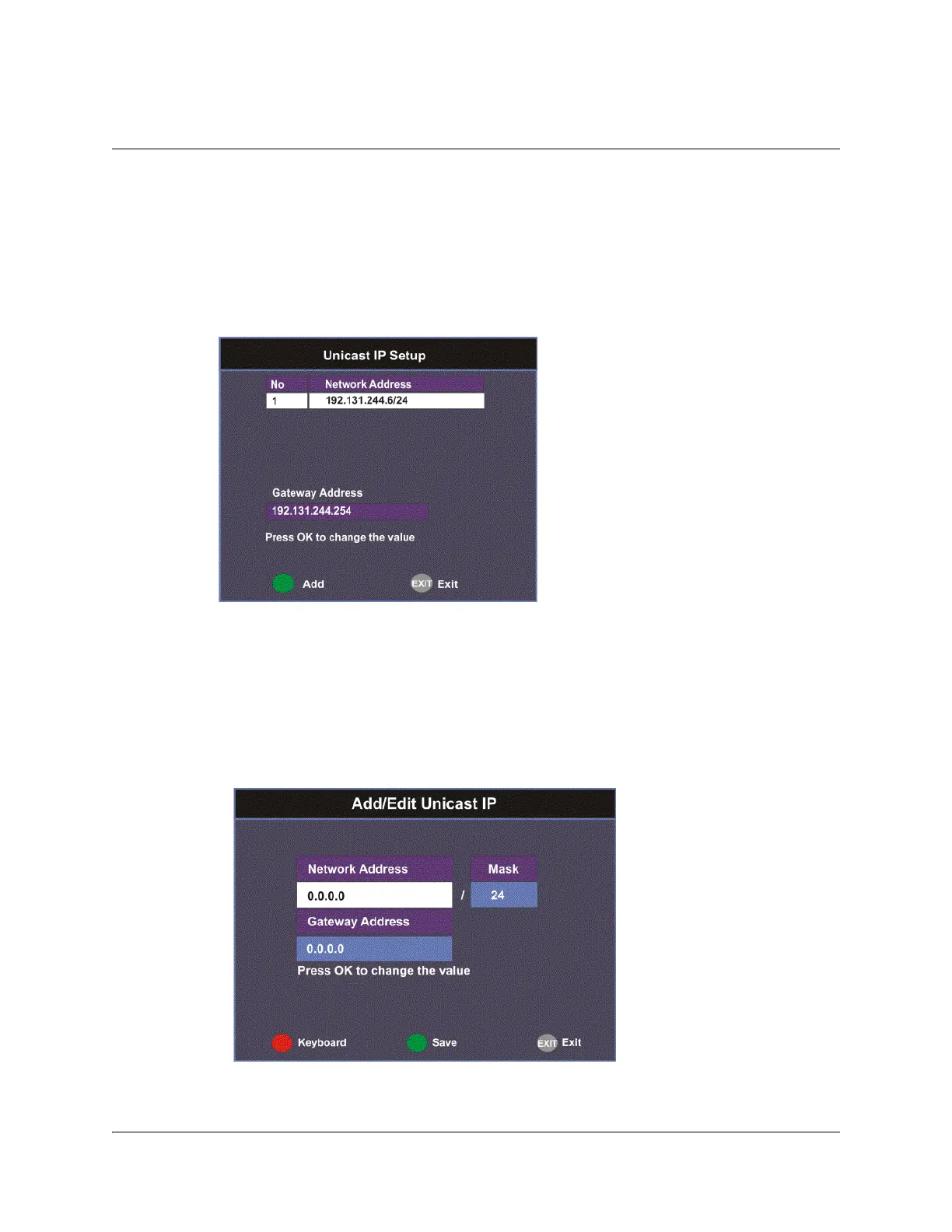

The Unicast IP Setup screen lists all the IP addresses and its Gateway addresses that
are participating in a Network environment.
Adding a Unicast IP Address
Proceed as follows to add a Unicast IP Address:
1. From the Unicast IP Setup screen, press the green button (Add) to add a new
address.

Cisco D9865 Specifications

General

Brand	Cisco
Model	D9865
Category	Receiver
Language	English
