Cisco TelePresence Multipoint Switch Release 1.1 Administration Guide
OL-12586-02
Chapter 4 Configuring CTMS Administration Software
Configuring and Editing Cisco TelePresence Manager Settings
• To register new or modified settings, click Apply.
• To restore the original settings, click Reset.
Configuring and Editing Cisco TelePresence Manager Settings
These setting are used to register CTMS with Cisco TelePresence Manager (CTS-Man) for scheduled
meetings.

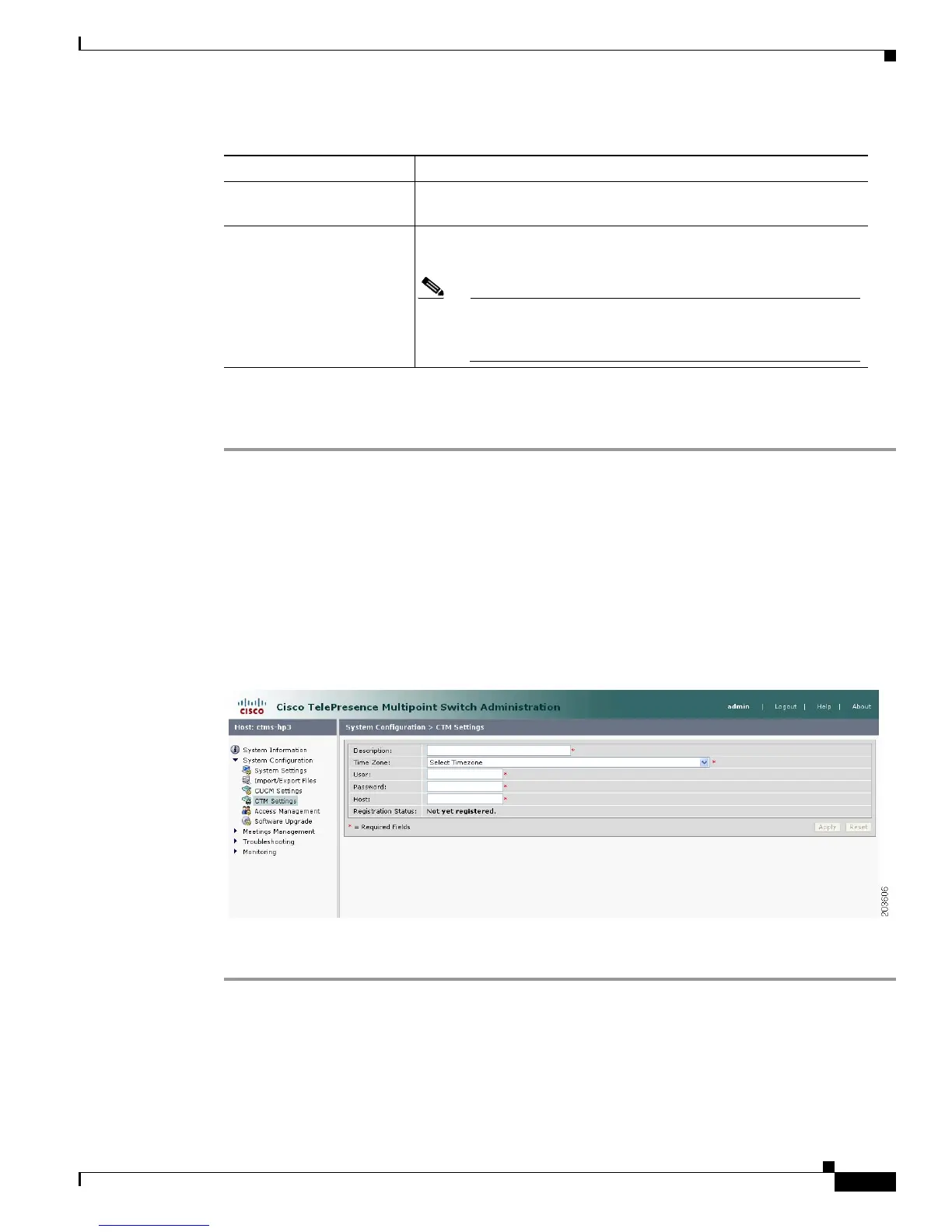

Figure 4-10 shows the Cisco TelePresence Manager Settings screen.
Figure 4-10 Cisco TelePresence Manager Settings
To configure or edit CTS-Manager settings:
Step 1 Click CTM Settings under the System Configuration folder in the Navigation Pane to open the CTM
Settings window.
Step 2 CTM Settings displays a table providing the Cisco TelePresence Manager Settings configuration fields.
Enter or edit settings (as needed) as described in Tabl e 4 -8
Stop Media Port Designates the stop real-time protocol (RTP) port for media. Media
port ranges from 16384 to 32766. Default specifies 32766.
Transport Layer Protocol Select TCP or UDP for this field. Both transport types are supported.
TCP is the recommended transport type.
Note Whenever the transport type is modified in CTMS, the
corresponding transport type for the Unified CM trunk
setting must be changed to match the CTMS transport type.
Table 4-7 SIP Profile Settings
Field or Button Setting
