6

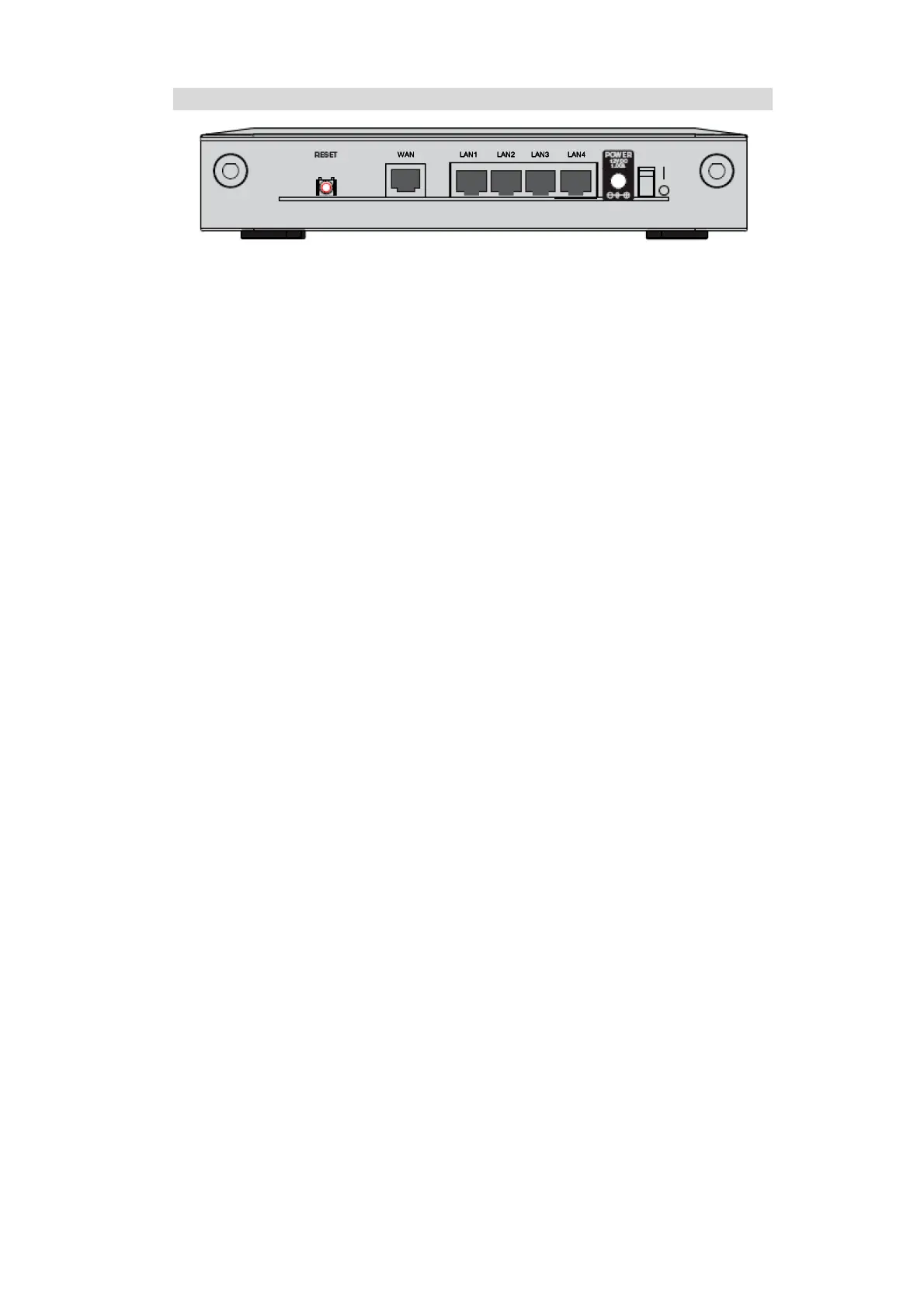

Rear Panel
RESET button
The Reset button can be used in one of two ways:
• If the Router is having problems connecting to the Internet,
press the Reset button for just a second with a paper clip or a
pencil tip. This is similar to pressing the Reset button on your
PC to reboot it.
• If you are experiencing extreme problems with the Router and
have tried all other troubleshooting measures, press and hold in
the Reset button for 10 seconds. This will restore the factory
defaults and clear all of the Router’s settings, such as port for-
warding or a new password.
WAN
Connect the DSL or Cable Modem here. If your modem came with
a cable, use the supplied cable. Otherwise, use a standard LAN
cable.
LAN 1-4
(10/100/1000BaseT)
Use standard LAN cables (RJ45 connectors) to connect your PCs to
these ports.
POWER
Connect the supplied power adapter here.
