Setup - LAN Screen
The LAN Setup section allows you t
o change th
e Router’s local net
work settings for the four
Ethernet ports.

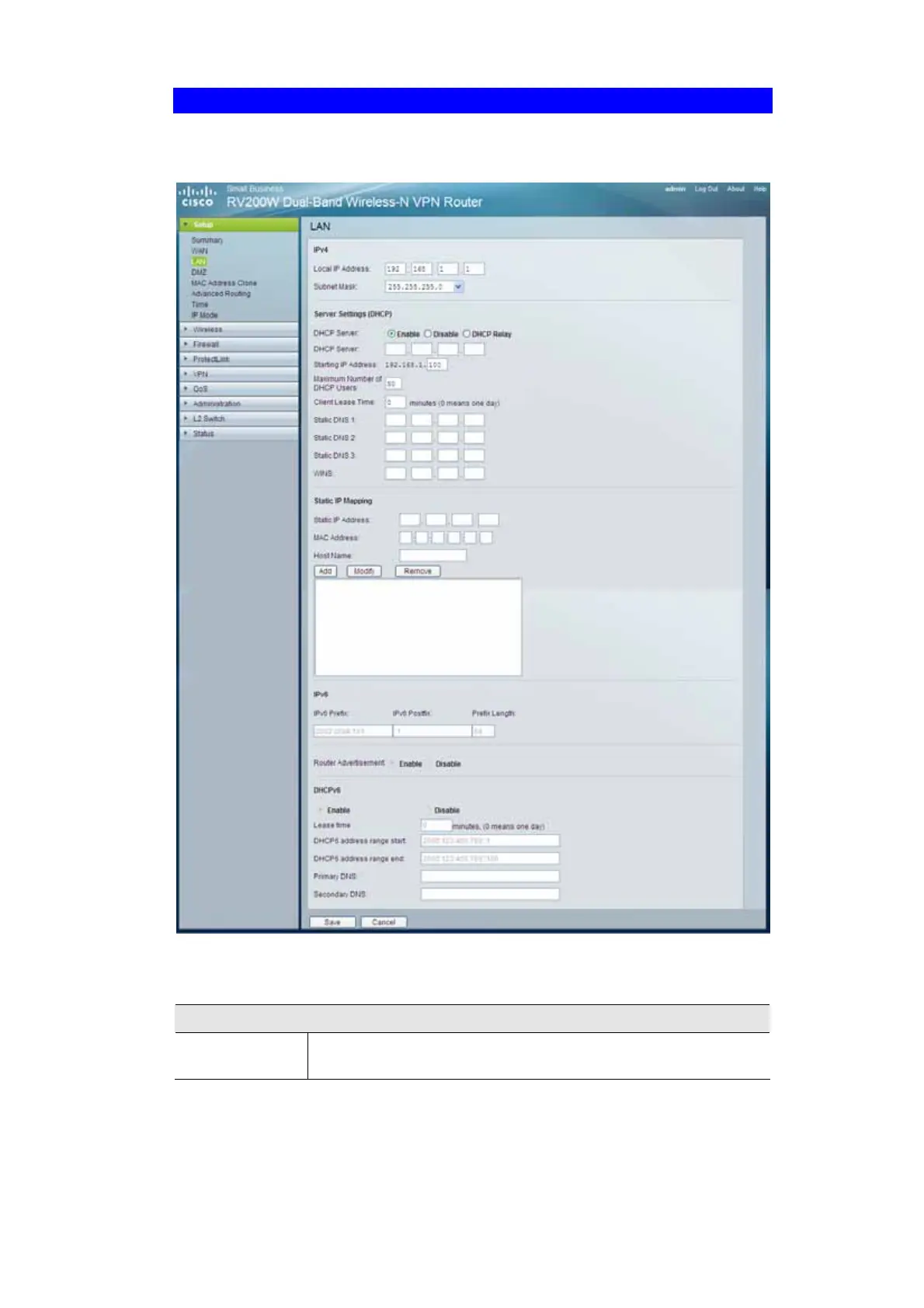

Figure 8: LAN Screen
Data - LAN Screen
IPv4
Local IP Address
Enter the IPv4 address on the LAN side. The default value i
s
192.168.1.1.
