DescriptionSignalPin
Transmit/receive data pair
2
TRP2-6
Transmit/receive data pair
4
TRP4+7
Transmit/receive data pair
4
TRP4-8
Management Port LEDs
The management port on the vEdge 1000 router has two LEDs that indicate link/activity and port status. See
Figure 2.

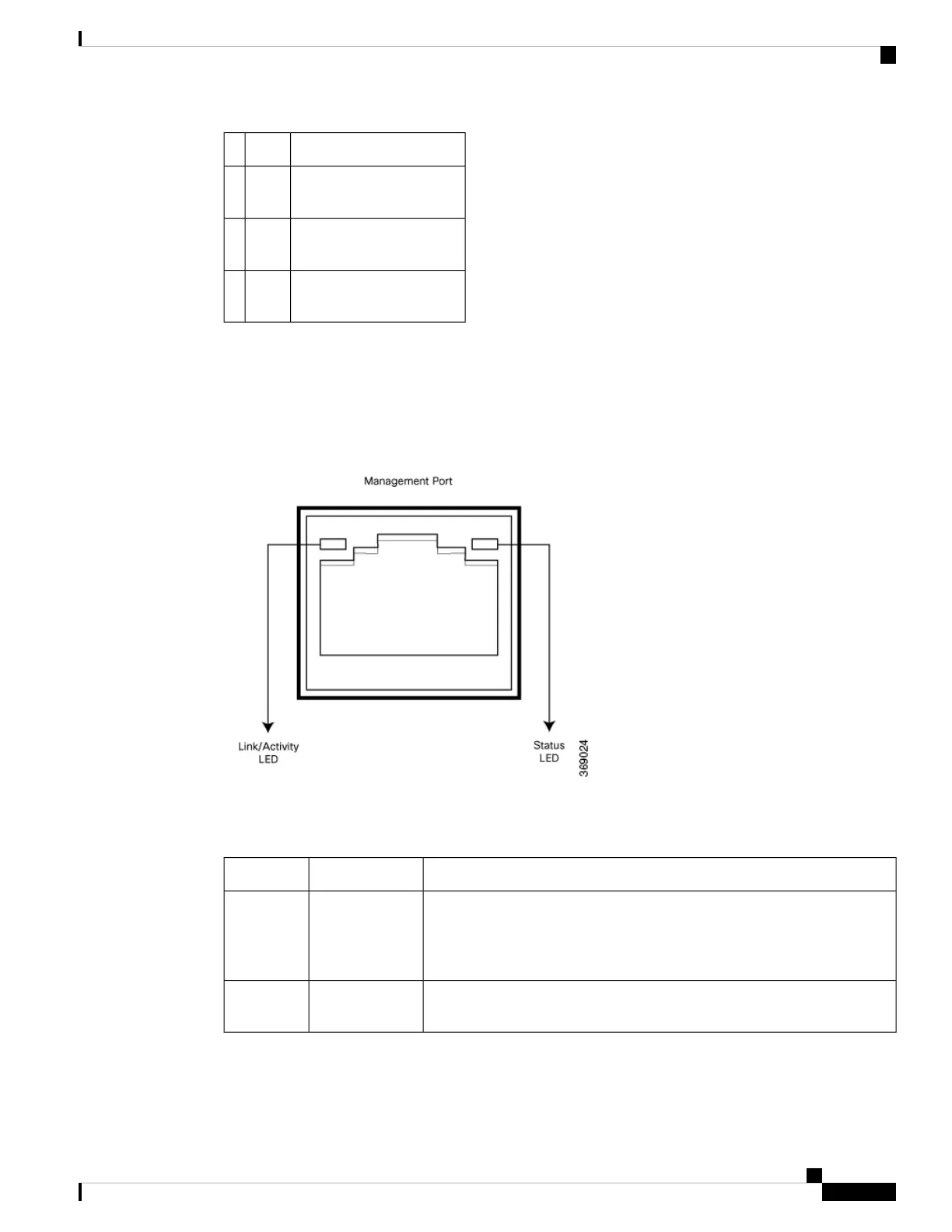

Figure 2: LEDs on the Management Port on a vEdge 1000 Router
Table 5 describes the LEDs on the management port.
Table 41:
State & DescriptionColorLED
Blinking—Link is up and there is link activity
Steady On— Link is up but there is no link activity
Off —Link is not up
GreenLink/Activity
Indicates the speed of the link: Green—1000 Mbps Yellow—100 Mbps
Off—10 Mbps
Green/Yellow/OffStatus
Hardware Installation Guide for vEdge Routers
123
vEdge 1000 Router
Ports and Connectors

Cisco vEdge Series Specifications

General

Connectivity Technology	Wired
Virtualization Support	Yes
High Availability	Yes
QoS Support	Yes
Product Type	Router
Data Link Protocol	Ethernet
Routing Protocols	BGP, OSPF
Interfaces	Gigabit Ethernet
Operating System	Cisco vEdge OS
Security	IPSec
Management	CLI
