Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-02
Chapter 2 Installation
Installing the Switch in a Rack

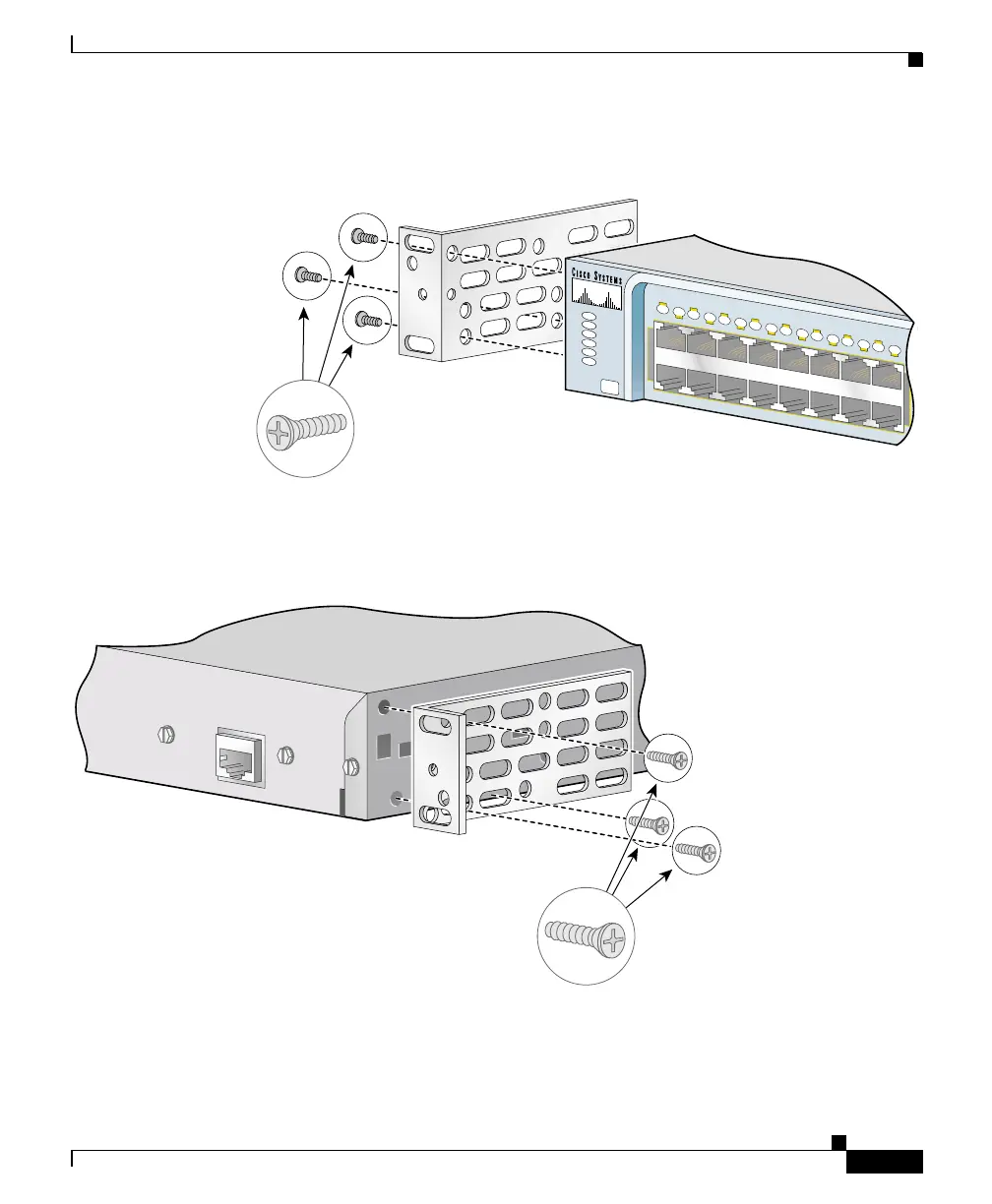

Figure 2-4 Attaching Brackets on the Catalyst 2950G-48-EI Switch in a 19-Inch
Rack (Front Panel Forward)
Figure 2-5 Attaching Brackets on the Catalyst 2950G-48-EI Switch in a 19-Inch Rack (Rear Panel
Forward)
SYST
RPS
S TAT
UTIL
DUPLX
SPEED
MODE
1X
2X
15X
16X
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Number-8
Phillips
flat-head
screws
65512
CONSOLE
Number-8
Phillips
flat-head
screws
65513
