Appendix B Connectors and Cables
Connector Specifications
1000BASE-X GBIC Module Ports
1000BASE-X Gigabit Interface Converter (GBIC) module ports use duplex SC
connectors, as shown in Figure B-4.

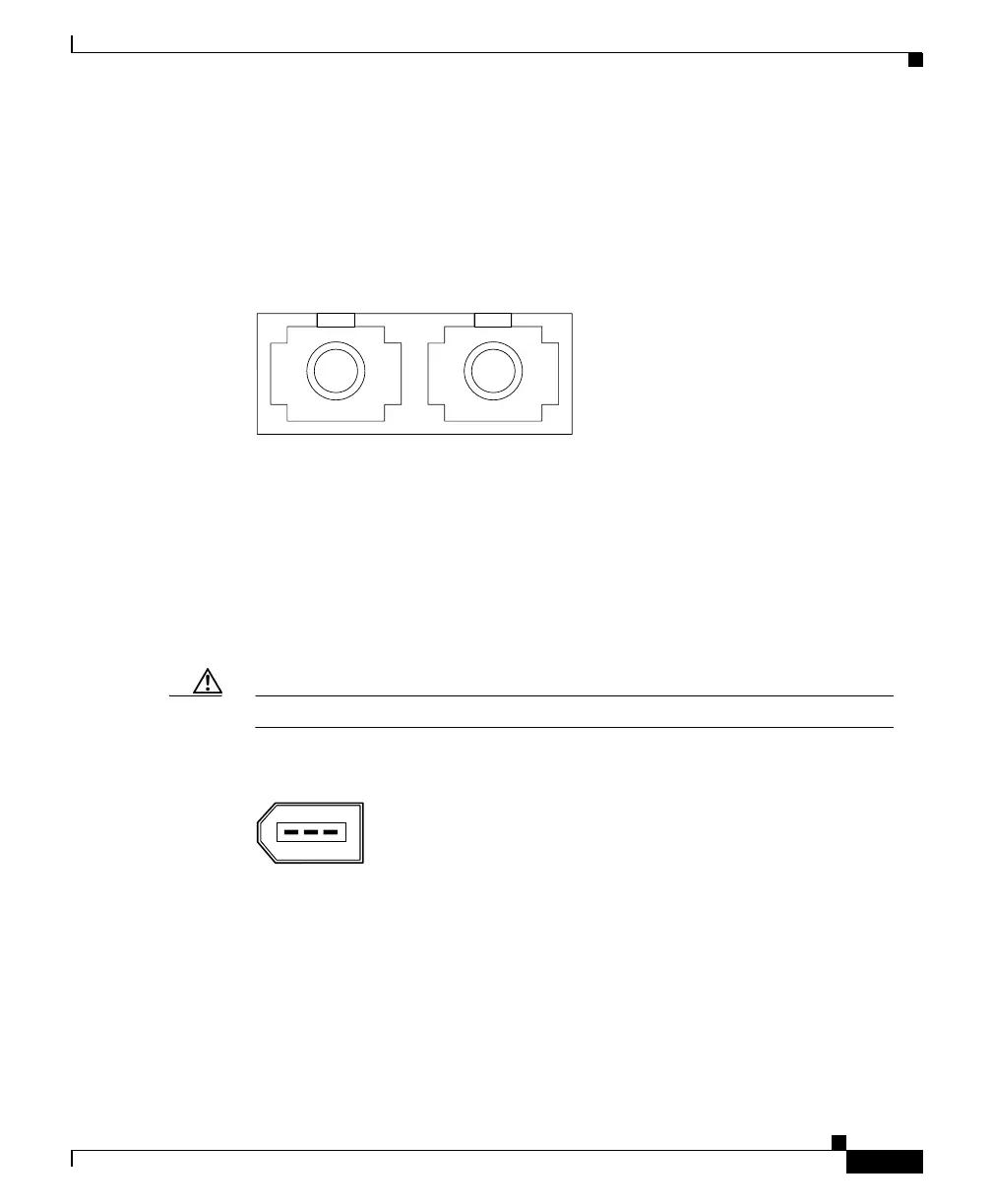

Figure B-4 1000BASE-X SC Connector
GigaStack GBIC Module Ports
The GigaStack GBIC module ports use proprietary connectors, as shown in
Figure B-5. The GigaStack GBIC cables are proprietary, high-data-rate cables
with enhanced signal integrity and EMI protection.
Caution Do not use standard IEEE 1394 cables with the GigaStack GBIC.
Figure B-5 GigaStack Connector
Console Port
The console port uses an 8-pin RJ-45 connector. You can connect a switch to a PC
through the console port and the supplied RJ-45-to-RJ-45 rollover cable and
RJ-45-to-DB-9 adapter. If you want to connect a switch to a terminal, you need to
60535
Tx Rx
60536
