Cisco WS-C2950-24 Hardware Installation Guide

B-7
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-02
Appendix B Connectors and Cables
Cable and Adapter Specifications
Four Twisted-Pair Cable Pinouts for 10/100 Ports

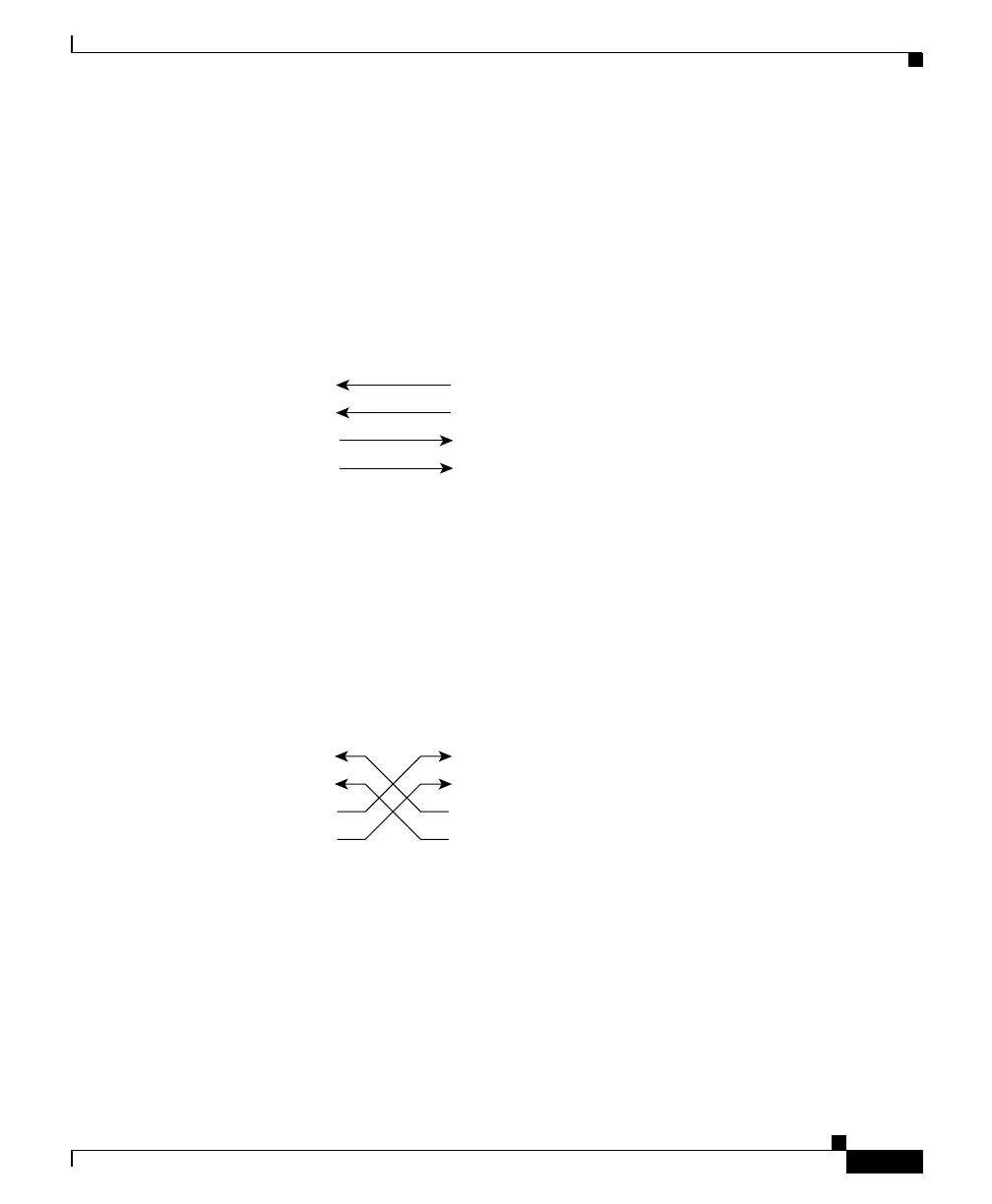

Figure B-8 and Figure B-9 show the schematics of four twisted-pair cables for
10/100 ports.
Figure B-8 Four Twisted-Pair Straight-Through Cable Schematic for
10/100 Ports
Figure B-9 Four Twisted-Pair Crossover Cable Schematic for 10/100 Ports
1 RD+
2 RD-
3 TD+
6 TD-
1 TD+
Switch Switch
2 TD-
3 RD+
6 RD-
4NC
5NC
7NC
8NC
4NC
5NC
7NC
8NC
65271
1 RD+
2 RD-
3 TD+
6 TD-
1 RD+
Switch Switch
2 RD-
3 TD+
6 TD-
4NC
5NC
7NC
8NC
4NC
5NC
7NC
8NC
65273
