Chapter 2 Installation
Running POST

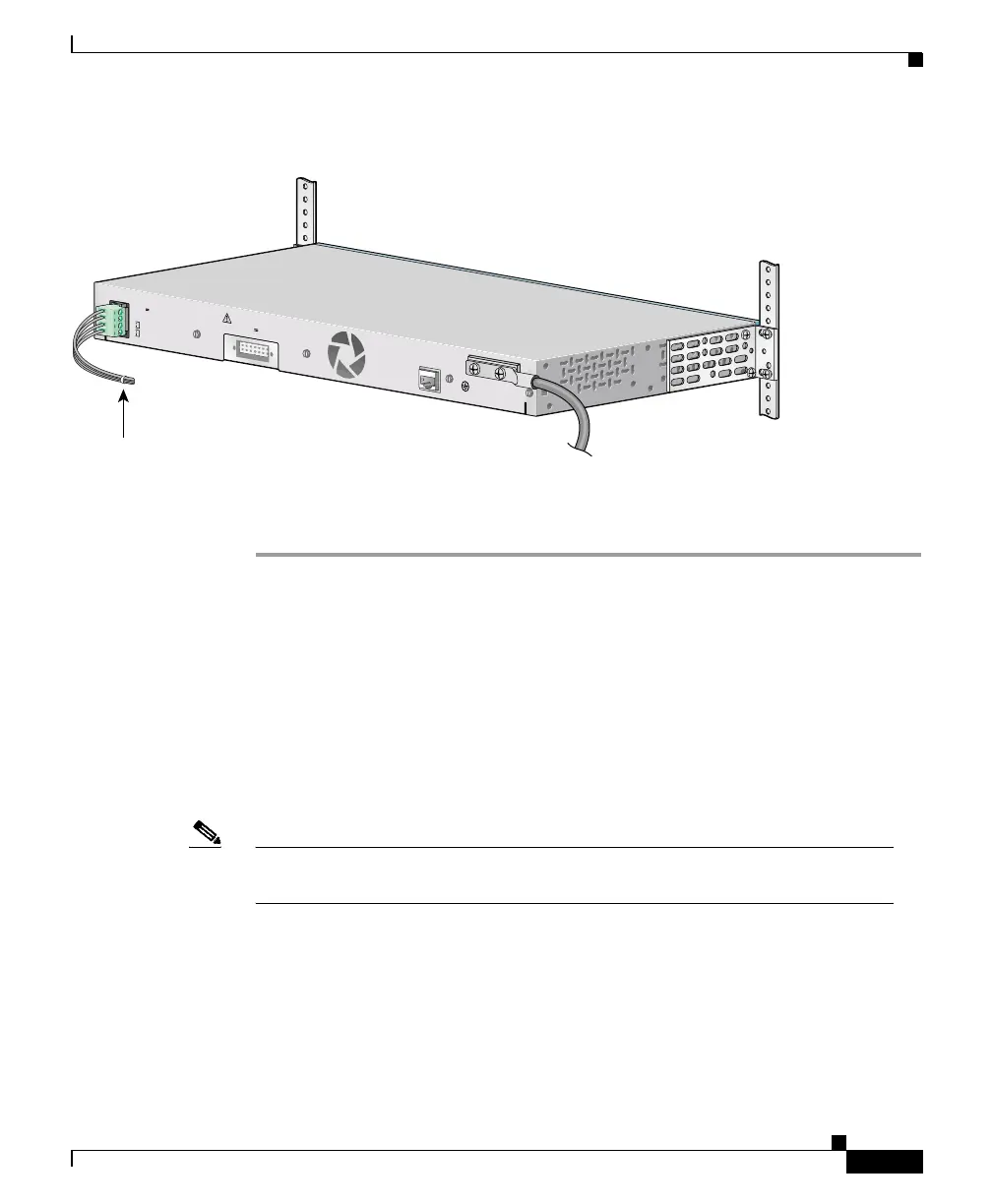

Figure 2-24 Inserting the Terminal Block in the Block Header
Step 8 Remove the tape from the circuit-breaker switch handle, and move the
circuit-breaker handle to the on position.
Running POST
After the power is connected, the switch automatically begins POST, a series of
tests that verifies that the switch functions properly. When the switch begins
POST, the system LED is off. If POST completes successfully, the LED turns
green. If POST fails, the LED turns amber. See Chapter 3, “Troubleshooting,” to
determine a corrective action.
Note POST failures are usually fatal. Call Cisco Systems immediately if your
switch does not pass POST.
DC INPUT FOR REMOTE
POWER SUPPLY
SPECIFIED IN MANUAL.
+12V @4.5A
36 - 72V
1 - 0.5A
CONSOLE
A
B
Tie wrap
65293
