Chapter 2 Installation
Installing the Switch in a Rack
2-18
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-02

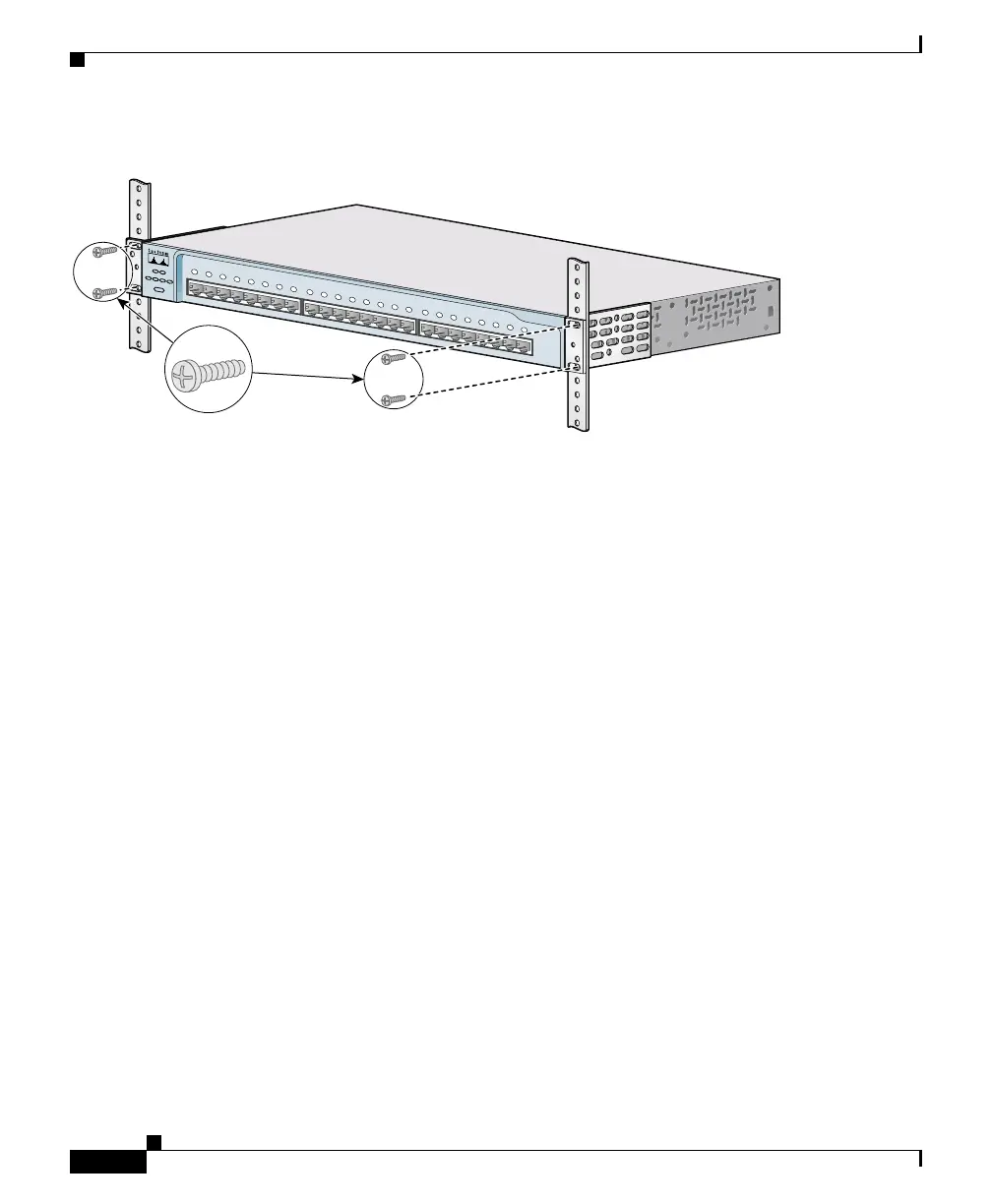

Figure 2-13 Mounting the Switch in a Rack
After mounting the switch in the rack, start the terminal-emulation software, and
provide power to the switch. See the “Powering On the Switch” section on
page 2-19 for instructions.
Attaching the Optional Cable Guide
We recommend attaching the cable guide to prevent the cables from obscuring the
front panels of the switch and other devices installed in the rack. Use the supplied
black Phillips machine screw to attach the cable guide to the left or right bracket,
as shown in Figure 2-14.
SYST
RPS
DUPLX
MODE
SPEED
UTIL
STAT
10Base-T / 100Base-TX
Catalyst 2950
SERIES
1x 2x 3x
4x 5x 6x
7x
8x
9x
10x
11x 12x
13x 14x
15x 16x
17x 18x
19x
20x
21x 22x
23x 24x
45572
Number-12
Phillips machine
screws
