Chapter 1 Overview
Front-Panel Description
Front-Panel Description
The switch front panel contains the ports, the LEDs, and the Mode button.
Figure 1-1 to Figure 1-8 show the switches.

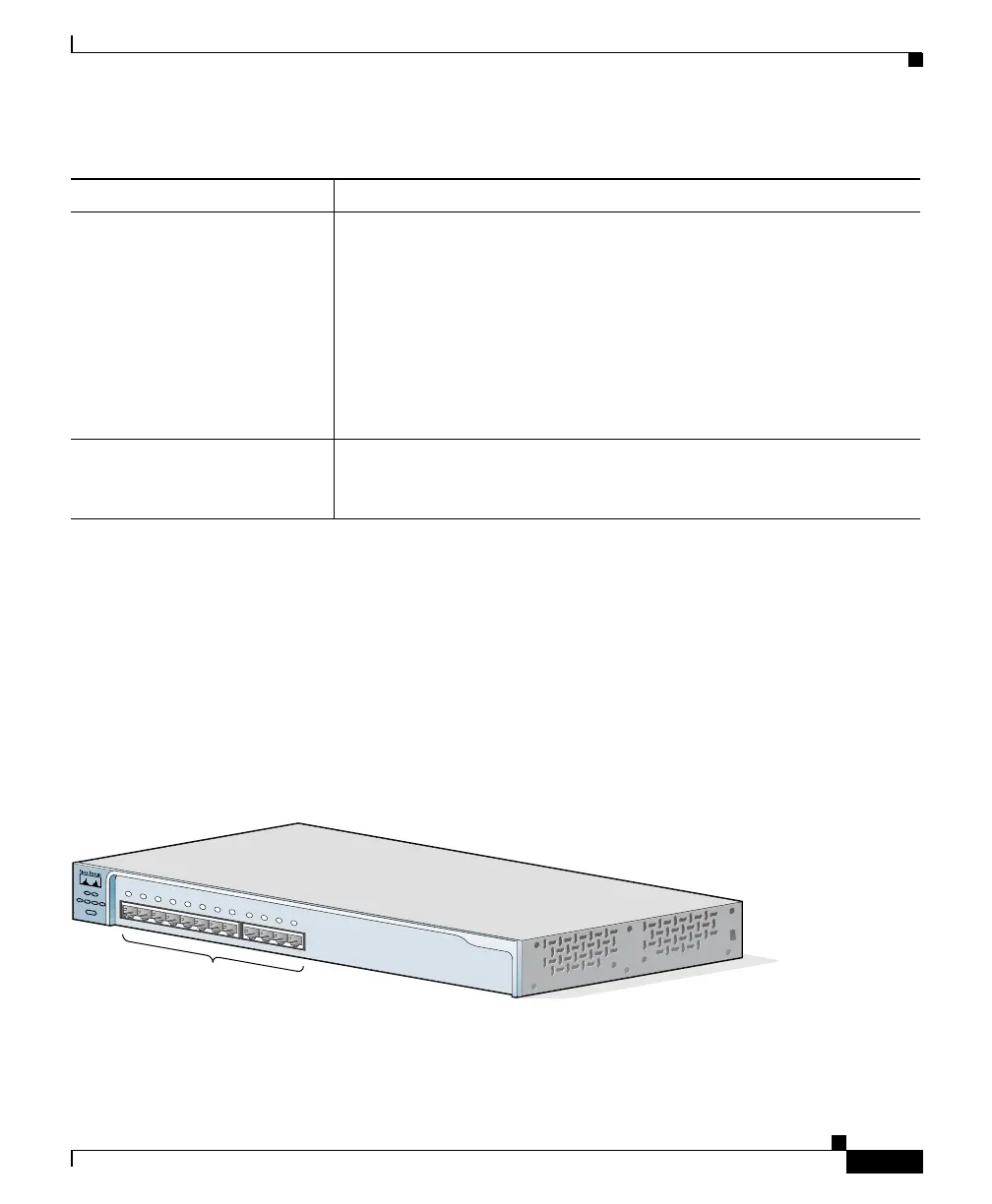

Figure 1-1 Catalyst 2950-12 Switch
Configuration • Autonegotiates the speed and duplex settings on 10/100 ports and
on 10/100/1000 ports
• Supports only 100-Mbps and full-duplex settings on
100BASE-FX ports
• Supports 8192 MAC addresses
• Checks for errors on a received packet, determines the destination
port, stores the packet in shared memory, and then forwards the
packet to the destination port
Power redundancy
• Connection for an optional Cisco RPS 300 Redundant Power
System (RPS) that uses AC
3
input and supplies DC output to the
switch
1. GBIC = Gigabit Interface Converter
2. DC = direct current
3. AC = alternating current
Table 1-1 Catalyst 2950 Switch Features (continued)
Feature Description
10/100 ports
45568
SYST
RPS
DUPLX
MODE
SPEED
UTIL
STAT
10Base-T / 100Base-TX
Catalyst 2950
SERIES
1x
2x
3x
4x
5x
6x
7x
8x
9x
10x
11x
12x
