Chapter 2 Installation
Installing the Switch in a Rack

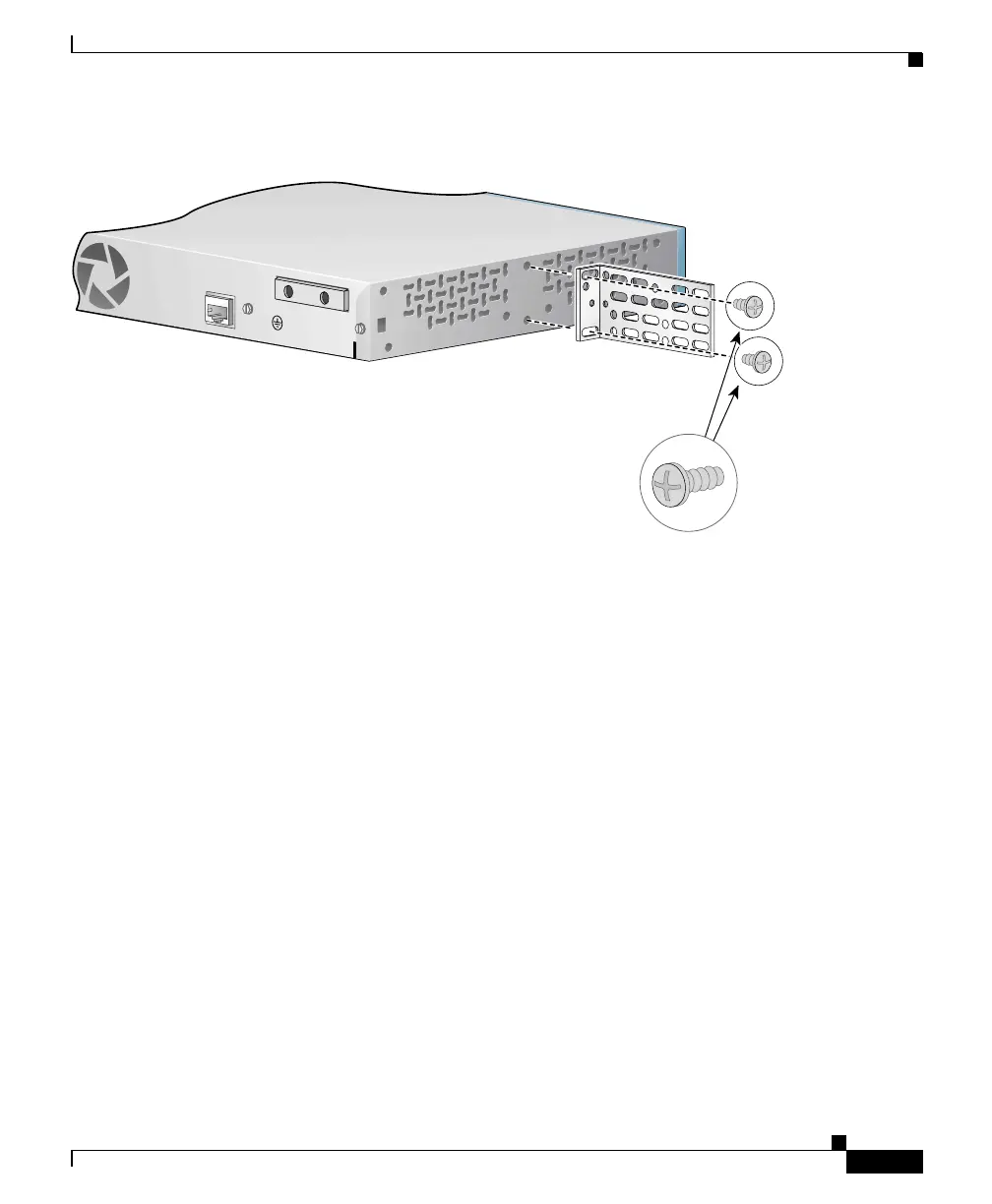

Figure 2-12 Attaching Brackets on the Switch in a 24-Inch Telco Rack
Mounting the Switch in a Rack
After attaching the brackets, use the four Phillips machine screws to securely
attach the brackets to the rack. Figure 2-13 shows how to mount a switch in a rack.
To prevent the cables from obscuring the switch and other devices in the rack, you
can also attach the cable guide to the rack. See the“Attaching the Optional Cable
Guide” section for instructions.
CONSOLE
65667
Number-8
Phillips
truss-head
screws
