Chapter 1 Overview
Front-Panel Description
1-6
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-02

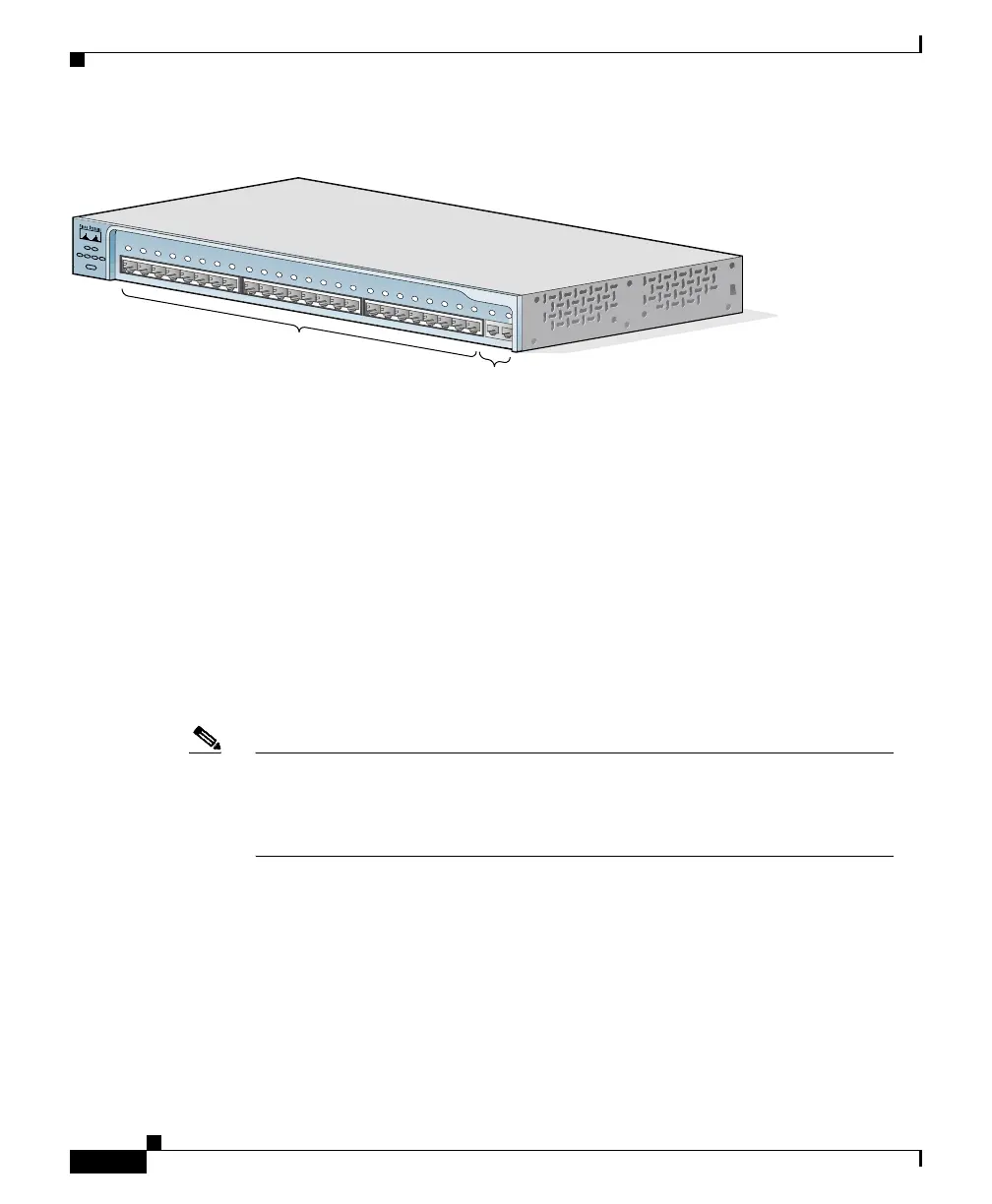

Figure 1-8 Catalyst 2950T-24 Switch
10/100 Ports
The 10/100 ports use RJ-45 connectors and twisted-pair cabling. The ports can
connect to these devices:
• 10BASE-T-compatible devices, such as workstations and hubs, through
standard RJ-45 connectors and two twisted-pair cabling. You can use
Category 3, 4, or 5 cabling.
• 100BASE-TX-compatible devices, such as high-speed workstations, servers,
hubs, routers, and other switches, through standard RJ-45 connectors and two
or four twisted-pair, Category 5 cabling.
Note When connecting the switch to workstations, servers, and routers, be sure that
the cable is a twisted-pair straight-through cable. When connecting the switch
to hubs or other switches, use a twisted-pair crossover cable. Pinouts for the
cables are described in Appendix B, “Connectors and Cables.”
The 10/100 ports can be explicitly set to operate in any combination of half
duplex, full duplex, 10 Mbps, or 100 Mbps. They can also be set for speed and
duplex autonegotiation, compliant with IEEE 802.3U. In all cases, the cable
length from a switch to an attached device cannot exceed 328 feet (100 meters).
10/100 ports
10/100/1000 ports
47337
SYST RPS
DUPLX
MODE
SPEED
UTIL
STAT
10Base-T / 100Base-TX
10/100/100Base-T
Catalyst 2950
SERIES
1x
2x
3x
4x
5x
6x
7x
8x
9x
10x
11x
12x
13x
14x
15x
16x
17x
18x
19x
20x
21x
22x
23x
24x
1
2
