Chapter 2 Installation
Connecting to DC Power
2-26
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-02
Warning
An exposed wire lead from a DC-input power source can conduct harmful
levels of electricity. Be sure that no exposed portion of the DC-input power
source wire extends from the terminal block plug.

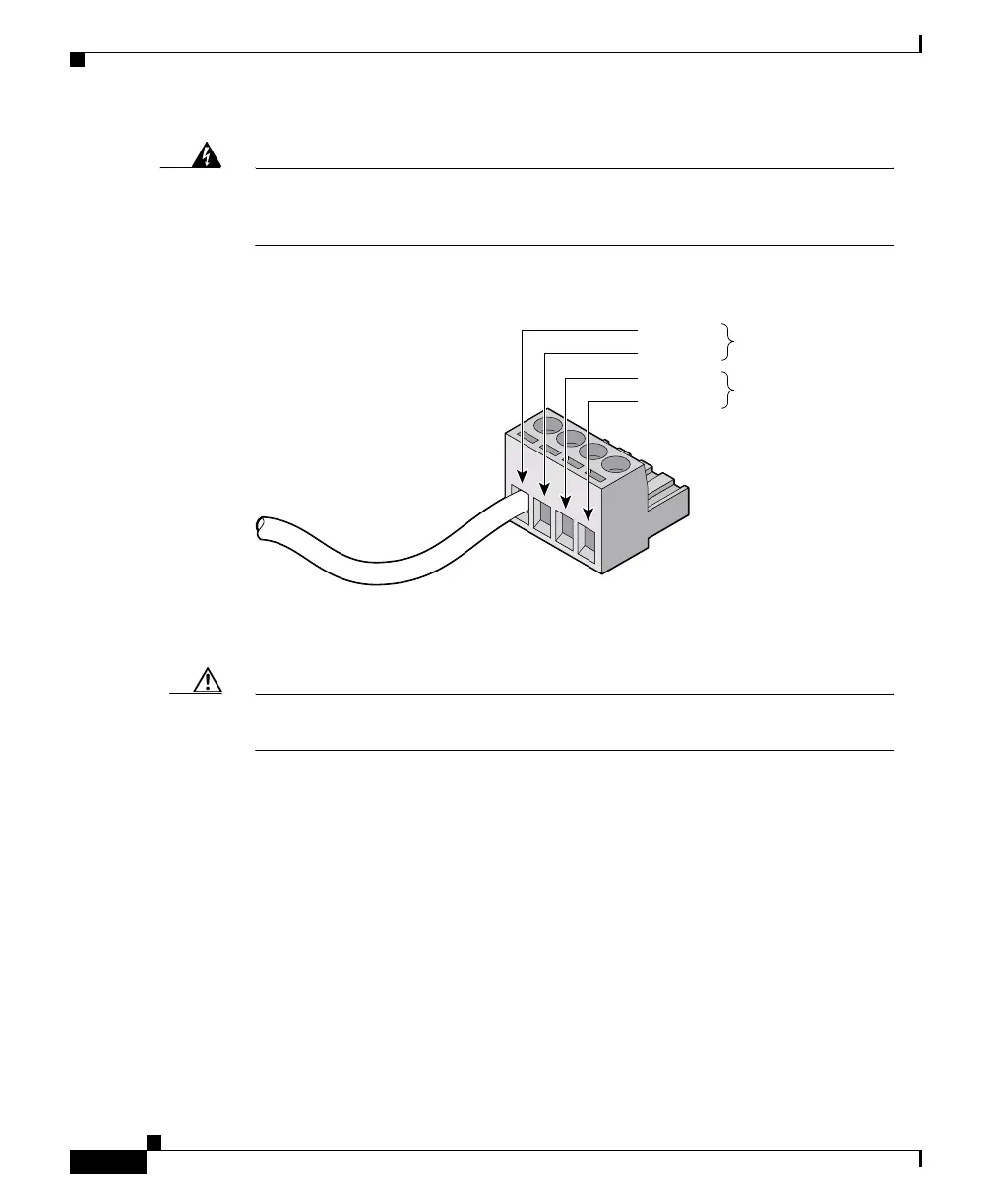

Figure 2-21 Inserting Wires in the Terminal Block Plug
Step 5
Use a ratcheting torque screwdriver to torque the terminal block captive screw
(above the installed wire lead) to 4.5 lbf-in. (72 ozf-in.). (See Figure 2-22.)
Caution Do not overtorque the terminal-block captive screws. The recommended
maximum torque is 4.5 lbf-in.
60532
Return
Negative
Return
Feed A
Feed B
Negative
To Next Page
