FreeSpeak II for Eclipse | User Guide
Blue: Transceiver is available.
Amber: Transceiver is configured, but not connected to the matrix. A download is required.
Green: Transceiver is connected to the matrix.
Gray: Transceiver is connected to another matrix, but it is not online.
Purple: Transceiver is already connected to another matrix.
6.10.3 Static configuration
By default, the E-IPA-HX card is DHCP enabled, and any IPTs are in DHCP mode. However,
you can allocate static IP addresses for an IPT. If the IP AES67 Admin and AES67 Audio IP
addresses are in DHCP mode, you must set them to static mode.

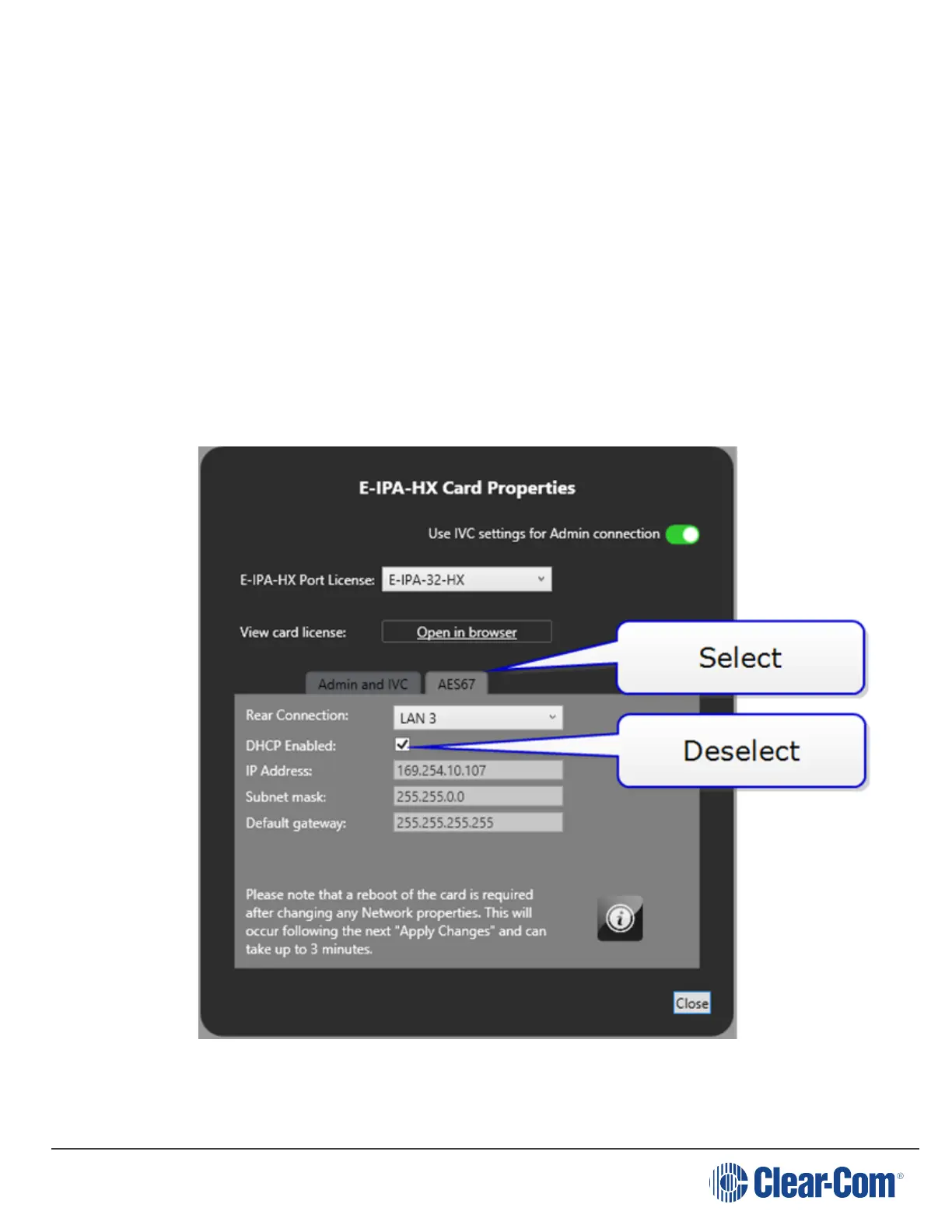

1. Navigate to Hardware > Cards and Ports, and then double-click the card slot containing
the E-IPA-HX card. The Card Properties screen appears.
2. Select the AES67 tab, and then deslect DHCP Enabled.
3. Enter the required static IP address, and then Apply Changes.
Page 71
