16 Tempest®900 4-Channel Wireless Intercom System

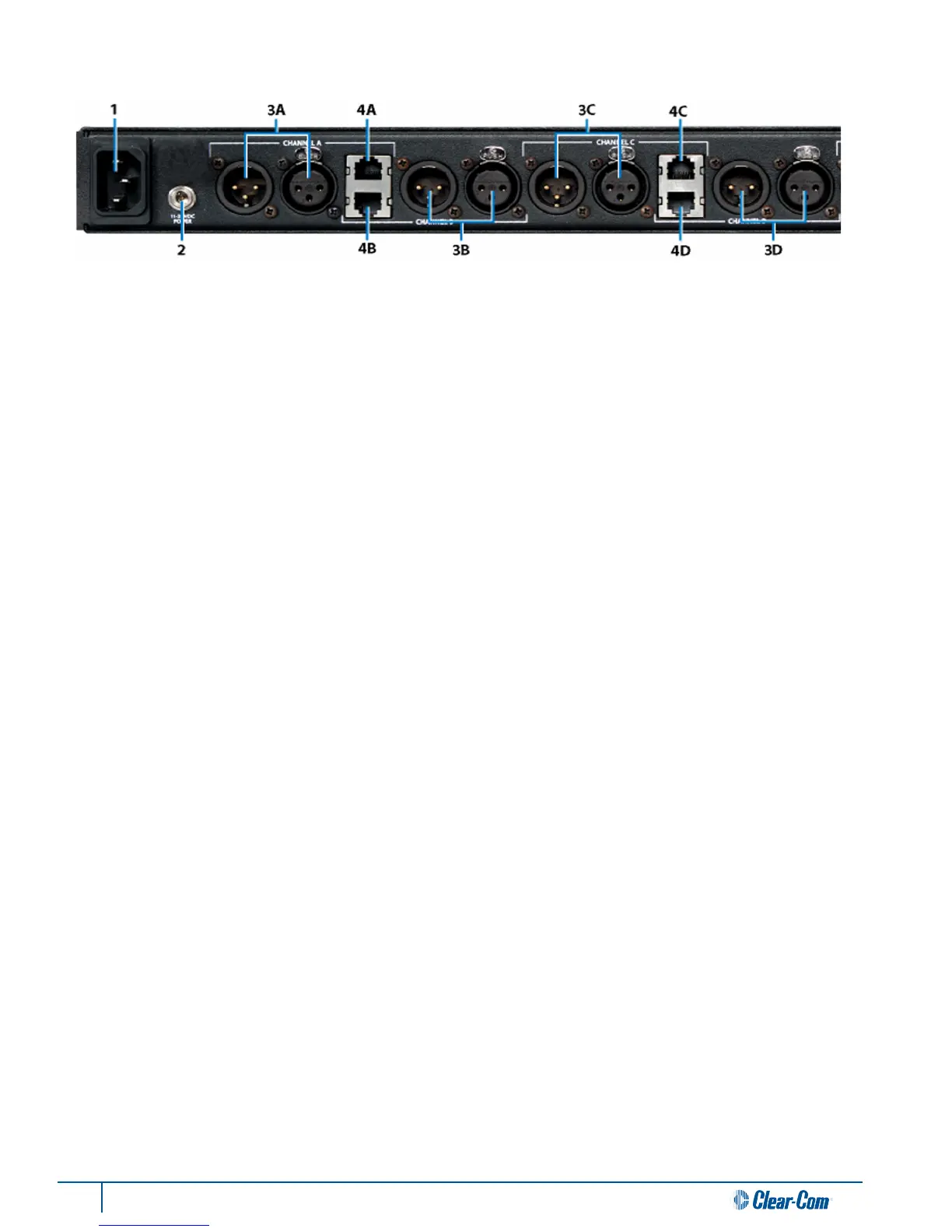

Rear Panel Le
1- AC Power Input Connector
The IEC AC Power Input Connector accepts the AC power cord. Use this connector with the supplied AC power cord to
power the Tempest BaseStaon from AC power between 85 and 260 VAC at 50 – 60 Hertz. The BaseStaon will draw
approximately 15 Was (125mA at 120VAC, 65mA at 230VAC).
2- DC Power Input Connector
The DC Power Input Connector accepts a Switchcra S760 2.1mm x 5.5mm power plug wired as center posive. Use this
connector with a user-supplied cable to power the Tempest BaseStaon from DC power (baery) between 11 and 32 VDC.
The BaseStaon will draw approximately 12 Was (990 mA at 12VDC).
3- Intercom Channel A/B/C/D Connectors
The Intercom Channel connectors (A/B/C/D) allow the user to connect the Tempest BaseStaon to 2-Wire external intercom
systems or other Tempest BaseStaons. The XLR-3M/F 2-Wire intercom connectors interface with Clear-Com, RTS, Balanced
and other compable intercom systems. The pairs of XLR3-M and XLR-3F are electrically idencal.
4- RJ-45 4-Wire Intercom A/B/C/D Connectors
The RJ-45 4-Wire Intercom connectors (A/B/C/D) interface with 4-Wire intercom systems and devices including Clear-Com
matrix systems. This is an intercom audio-only connector and does not support data transfer. The connector is balanced
and transformer isolated. Nominal line levels are -18 to +4 dB (IN) and -6 to +12 dB (OUT).
