Appendix G
Inmarsat GX satellites G
This appendix contains examples of satellite data for azimuth calibration.

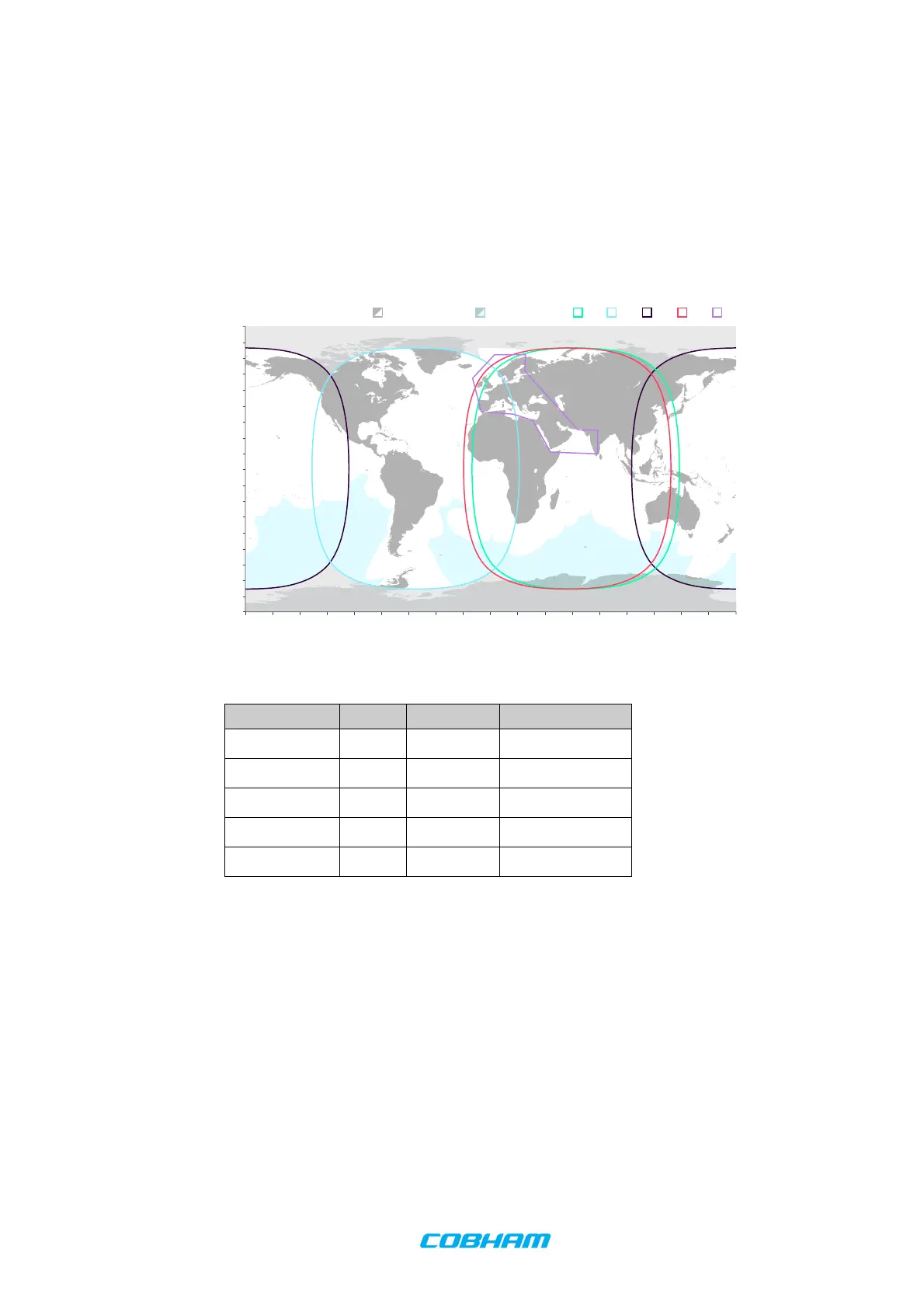

The following figure shows the coverage map of the GX service.
Figure G-1: GX coverage map
Satellite Position Frequency Satellite identifier
GX1 –IOR 62.6 E 19.707 GHz GSC
GX2 –AOR 55 W 19.707 GHz GSC
GX3 –POR 179.6 E 19.707 GHz GSC
GX4 –IOR 56.6 E 19.707 GHz GSC
GX5 –EME 11.0 E 19.701 GHz GSC
Table G-1: Inmarsat GSC satellite information
jÄÇüàõÇü¹èøº¯á¯øÚÇá¹èøàĆÇèáõċøõèü¯üèáÚĝá«áèºċøáĆ¯¯ÇüºÇĖ¯áè¹¤¤ċø¤ĝèøĨĆá¯ü ü¹èøõøĆǤċÚøċü¯ůèĖ¯øº¯Çüüċ£Ó¯¤ ĆĆè¤ÄắĆáĝĆÇà¯ů(Úè£Úõø¯üü¤èĖ¯øº¯FĝIJİIJİů
0°
10°
20°
30°
40°
50°
60°
70°
80°
90°
10°
20°
30°
40°
50°
60°
70°
80°
90°
0°20°40°60°80°100°120°140°160°180° 20° 40° 60° 80° 100° 120° 140° 160° 180°
Extendable Global Xpress
coverage via steerable beams
GX1 GX4GX3 GX2 GX5Global Xpress network available
over at least 99% of this area
