98-175666-A i
SAILOR XTR Ka
Quick guide
Installation wizard
This quick guide is for experienced service personnel who have installed the SAILOR XTR Ka system
before. It lists the minimum configuration tasks you have to make before the system can be used on-air
on a satellite.
1. Connect a PC to the front LAN connector of the Below Deck Unit (BDU).
2. Open an Internet Browser and type the default IP address of the SAILOR XTR Ka: https://192.168.0.1.
3. Bypass the admin password by pressing the left arrow key on the BDU for 5 seconds.

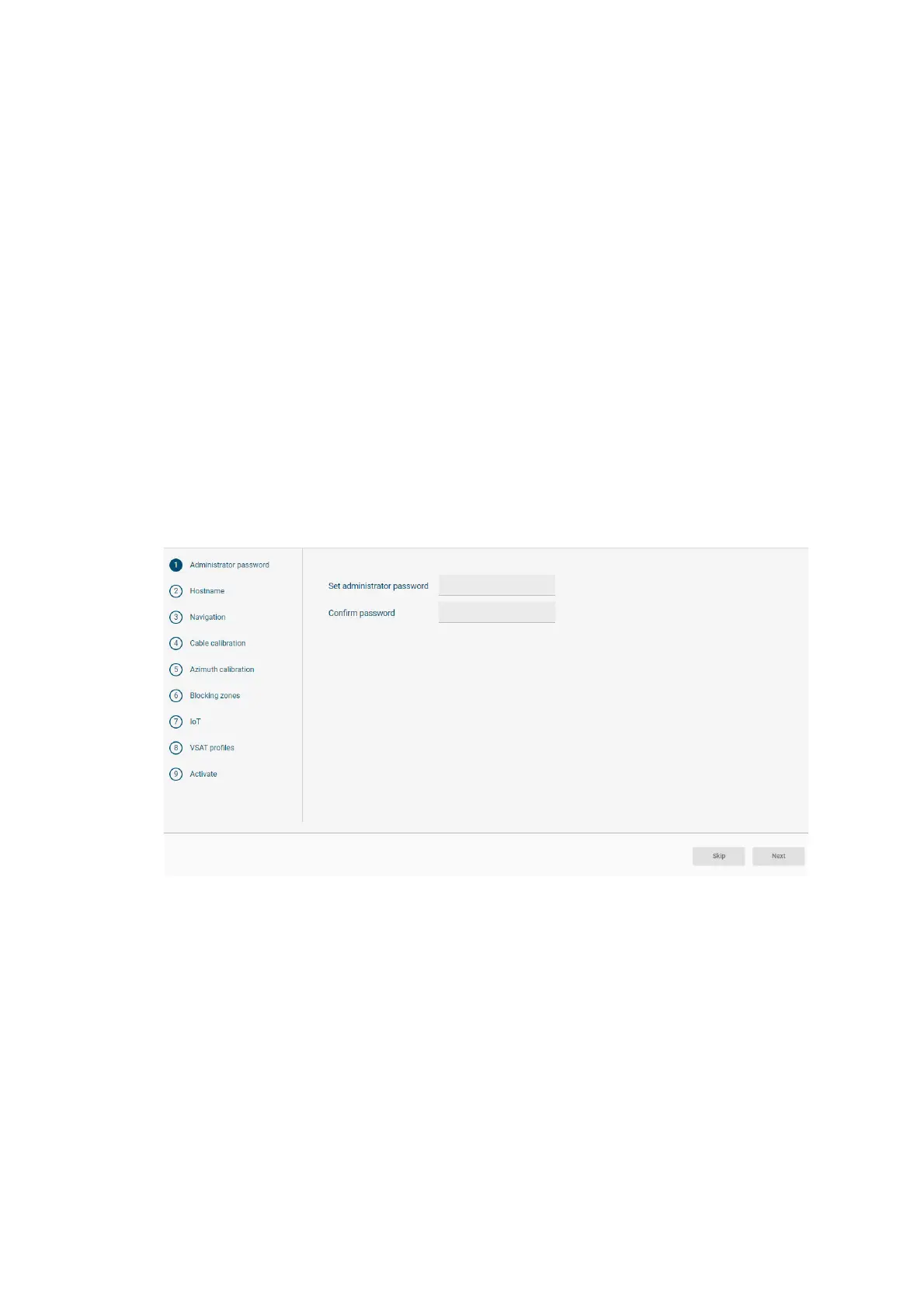

4. After opening the web interface for the first time after power up you can step through the installation
wizard.
5. Enter the necessary data on each page and click Next.
6. On the last screen click Finish to activate the VSAT profile.
For more detailed information about the setup tasks see chapter 4, Setup of the antenna.
