Site considerations
98-175666-A Chapter 2: Installation 2-15
The following figure shows the maximum mast length and the mast/brace connection point
over the outer mast diameter.
Example: The mast outer diameter is 150 mm. Then the mast length must be shorter
than 240 cm and the brace/mast connection point is 56 cm from the top of
the mast.
Make sure that the brace outer diameter is big enough for the selected mast length.
Example: For a mast length of 250 cm, the brace outer diameter must be minimum
65 mm.

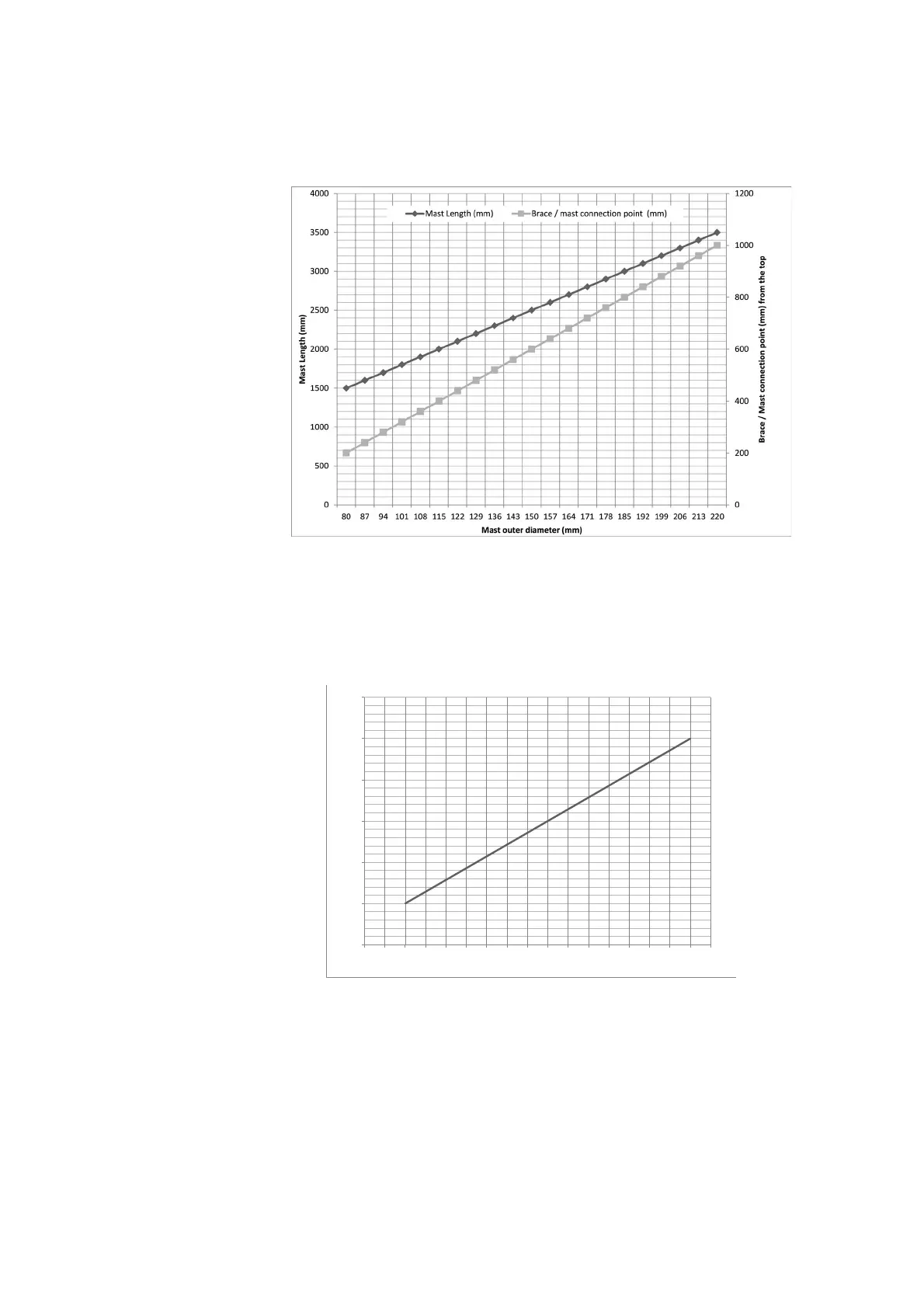

Figure 2-15: Maximum mast length and connection point for a mast with three braces
Figure 2-16: Minimum brace outer diameter
100
150
200
250
300
350
400
20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105
Mast Length (cm)
Brace outer diameter (mm)
