Introduction to the web interface
98-175666-A Chapter 4: Setup of the antenna 4-3
2. Wait until the LEDs on the front plate of the BDU show that the system is ready to be
configured.
•Power LED: Green
• Logon LED: Off
• Fail/Pass LED: Flashing green, during power-on self test, after that steady green.
3. Connect a PC to the service port on the front panel of the BDU.
4. Open an Internet browser and enter the IP address of the BDU. The default IP address is
http://192.168.0.1. When the login screen is displayed you have verified that the
connection to the SAILOR XTR Ka can be established.
There is an admin and a guest login. A guest can only access the functions that are allowed
by an administrator. With the guest login (user name: guest, password: configured by the
administrator) you can protect the system from accidental changes of the configuration.
Sections on the Dashboard

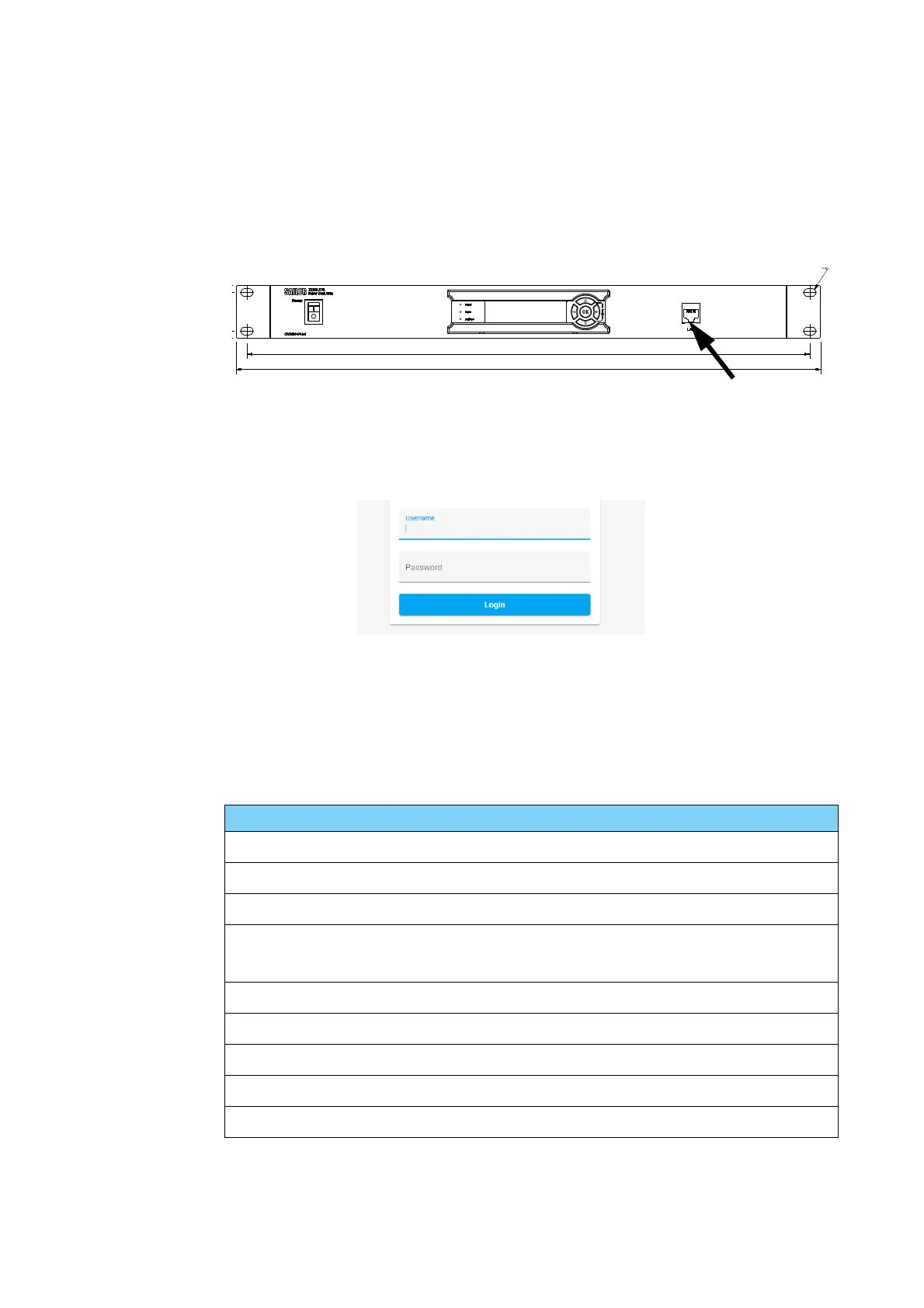

Figure 4-3: BDU, service port
Figure 4-4: Login
Parameter Description
ANTENNA
VSAT profile Name of the currently active VSAT profile
Satellite position Longitude position of the satellite
RX polarization
LHCP or RHCP, auto-selected by the modem
TX polarization Co-pol or X-pol, auto-selected by the modem
RX RF frequency Receiving transponder frequency
LNB LO frequency Block-down Local Oscillator, auto-selected by the modem
TX RF frequency Modem transmit frequency
BUC LO frequency Block-Down Local Oscillator, depending on antenna hardware
Table 4-1: Sections and parameters on the Dashboard
