Settings
98-175666-A Chapter 4: Setup of the antenna 4-10
4.2.3 Network settings
On this page you enter the host name and set up the network settings for the LAN ports of
the BDU and the LAN ports of the ADU.
Static IP or DHCP Client
The default setting for LAN Port 3 is DHCP client.
If you select DHCP client the network IP address and sub-net mask must be provided by a
DHCP server on that network. If you select Static IP address you must specify a unique IP
address and a sub-net mask.
DHCP Server Settings.
On the service LAN port 5 at the front you can select to run a DHCP server. Select the check
box DHCP Server. The DHCP start and end addresses must be on the same network as the
port's static IP.
DNS setup
If you have access to a Domain Name Server (DNS) you can specify the address of the e-
mail server by using the server name instead of its IP address. This can be used in Outgoing
mail server in E-mail setup (secure e-mail) on page 4-17. You may statically specify the
address of one or two DNS. Select the DNS source as static and fill in IP address or
addresses. Alternatively, if your DHCP server can provide a DNS address and you have
selected DHCP client above, then select the same LAN as your DNS source.
Gateway setup
If the BDU needs to communicate with network units outside the specified sub-nets, you
must specify a default gateway (typically a router). The default gateway can be set as a

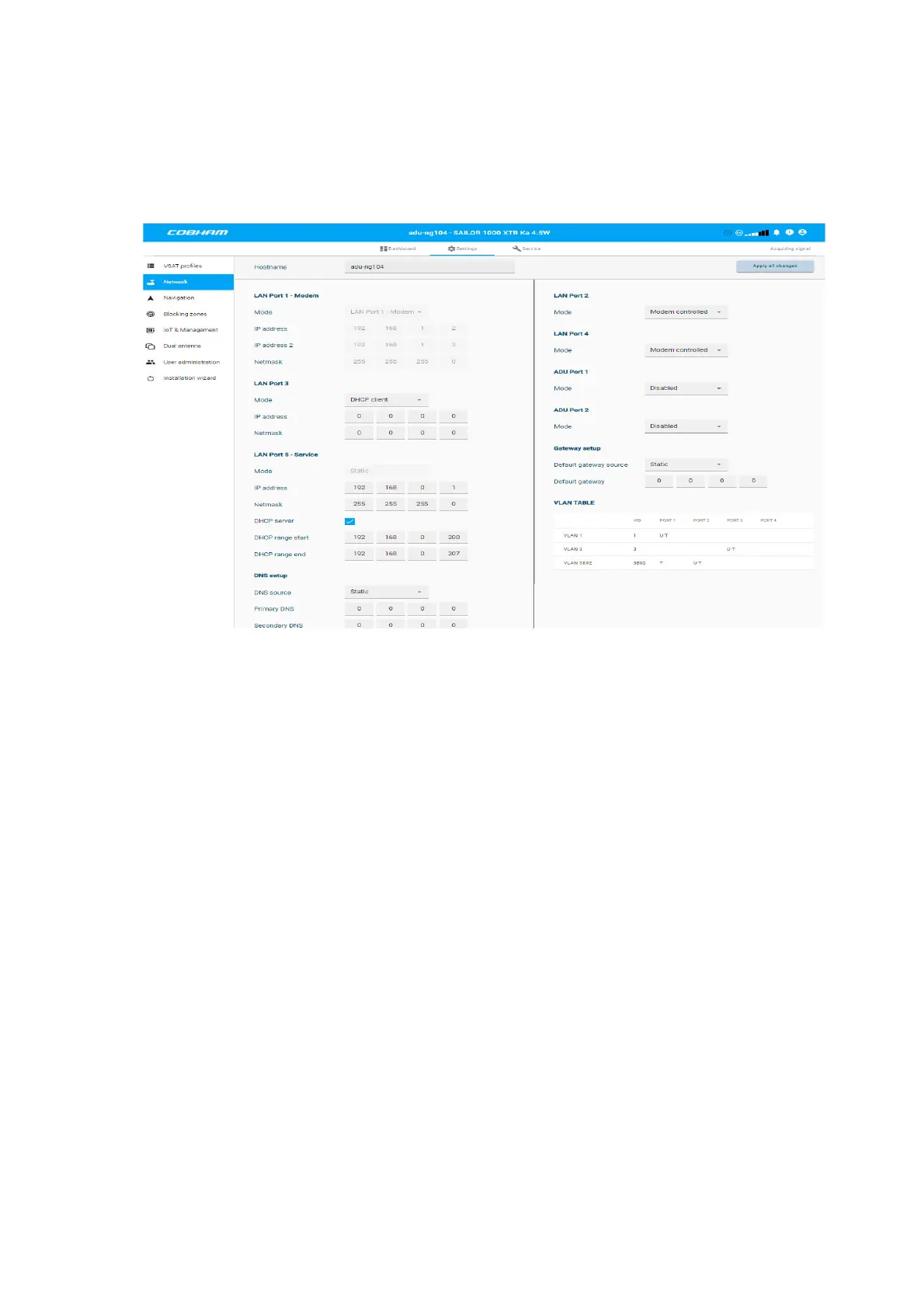

Figure 4-10: Settings, Network page (example)
