COBHAM SAILOR Global Xpress Modem Unit GMU User Manual

Site considerations
98-175666-A Chapter 2: Installation 2-14

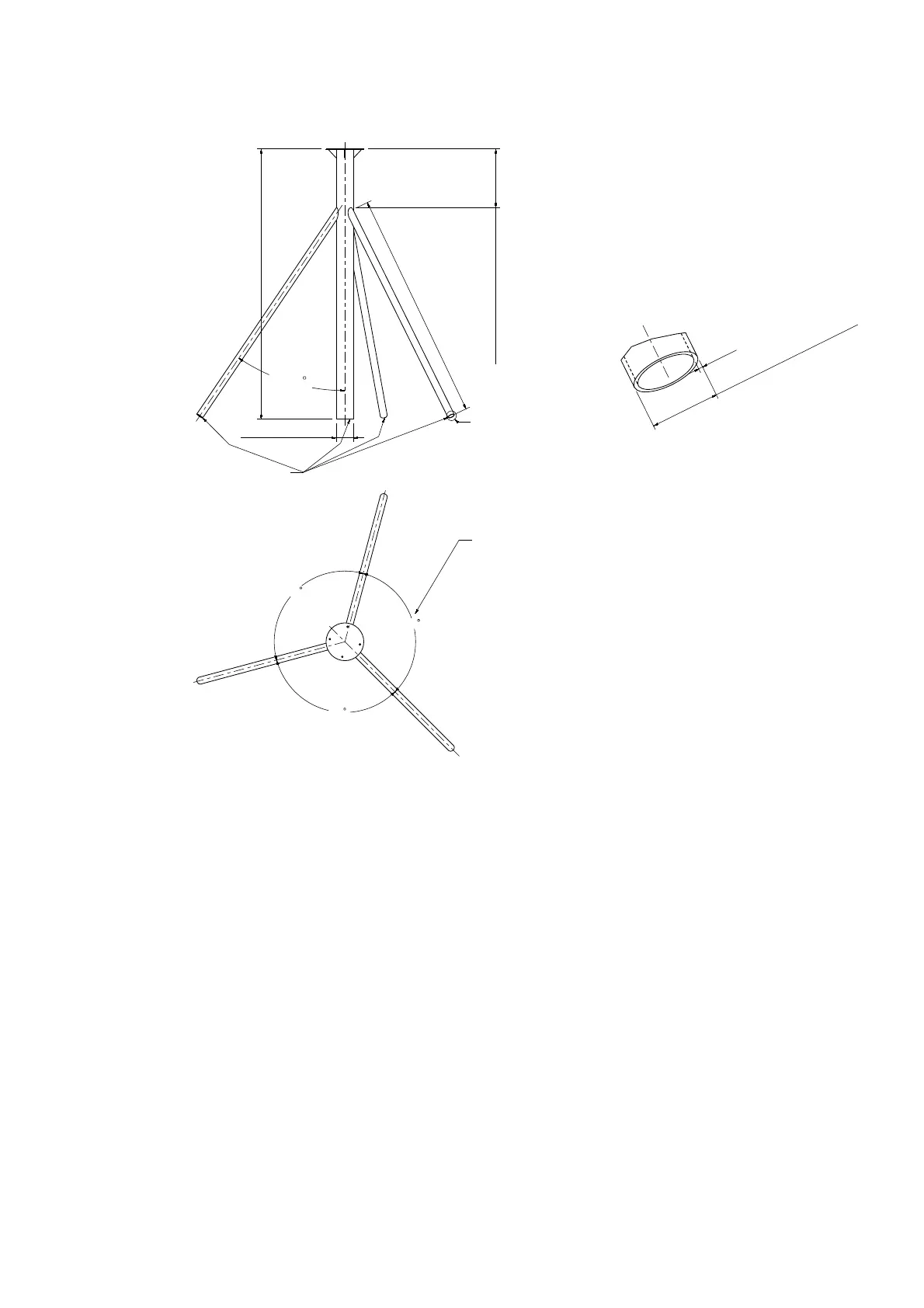

Figure 2-14: Mast with three braces (measures in mm) (60 cm)
30 - 40
brace as short as possible - see note
120
120
120
variable brace connection point
- see graph
variable mast length - see graph
variable diameter
- see graph
min. 4
variable diameter - see graph
evenly distributed, applying more evenly
distributed braces increases the stiffness
Detail: A
as rigid a foundation as possible
SEE DETAIL A
