Site considerations
98-175666-A Chapter 2: Installation 2-13
Mast length 60 cm
Mast without braces

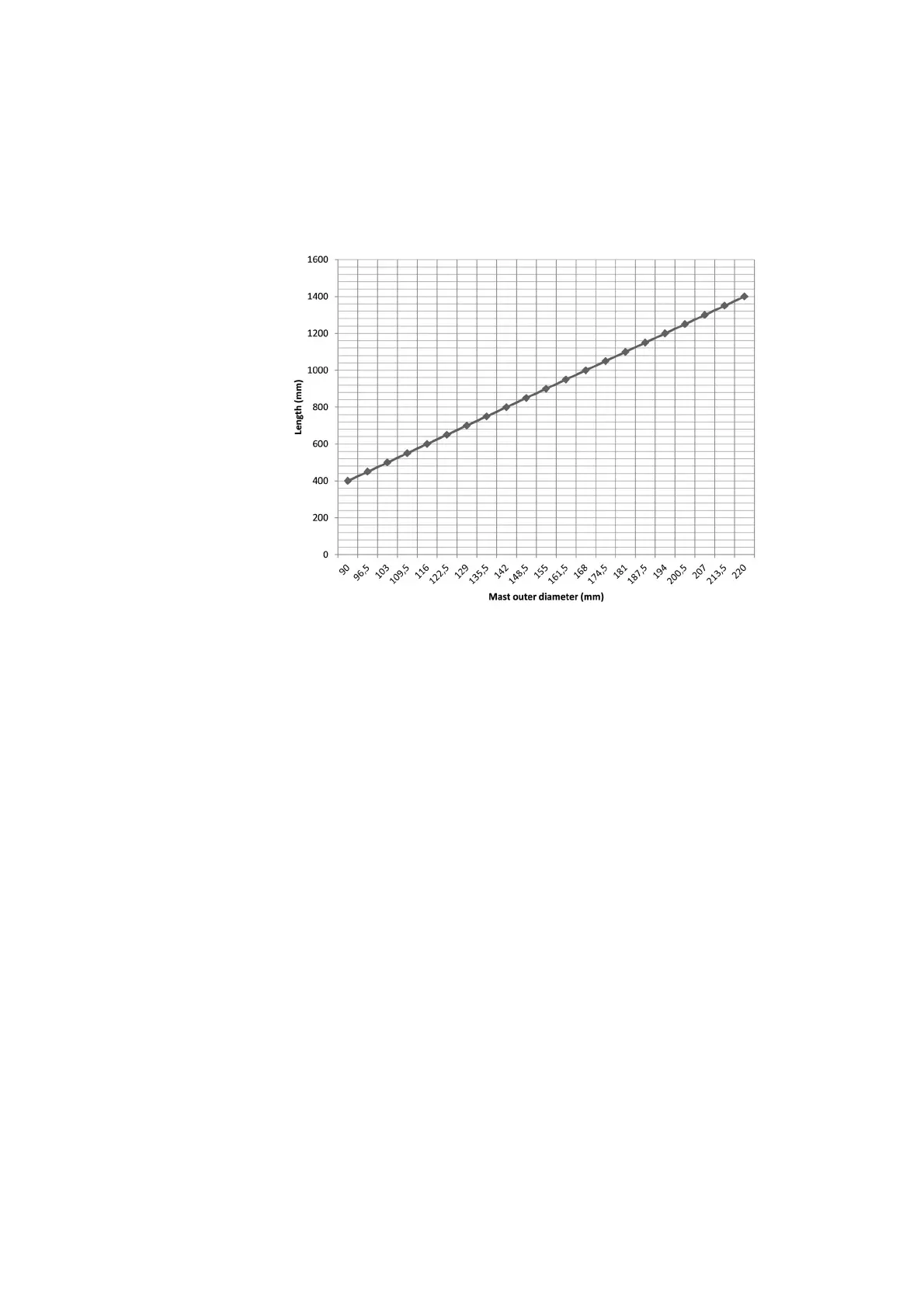

The following figure shows the maximum mast length over the outer mast diameter.
Example: The mast outer diameter is 150 mm. Then the mast length must be shorter
than 82 cm.
Mast with three braces
For a mast with three braces consider the following dimensions when you design the mast
and braces:
Mast length
Mast outer diameter
Connection point where the brace join the mast.
Brace outer diameter
The shorter the braces become the more support they add to the mast. The 30 - 40 degrees
between the braces and the mast should be respected.
Figure 2-13: Maximum mast length for a mast without braces (60 cm)
