The channel screen
The channel screen shows the following information:
• the name of the currently selected channel
• the transmit and receive frequencies, if applicable
• a bar graph that indicates the signal strength on receive
(green) and the output power on transmit (red)
• the transmit power level setting
• the call type icon (when calling)
• the mute type indicator
• the mode

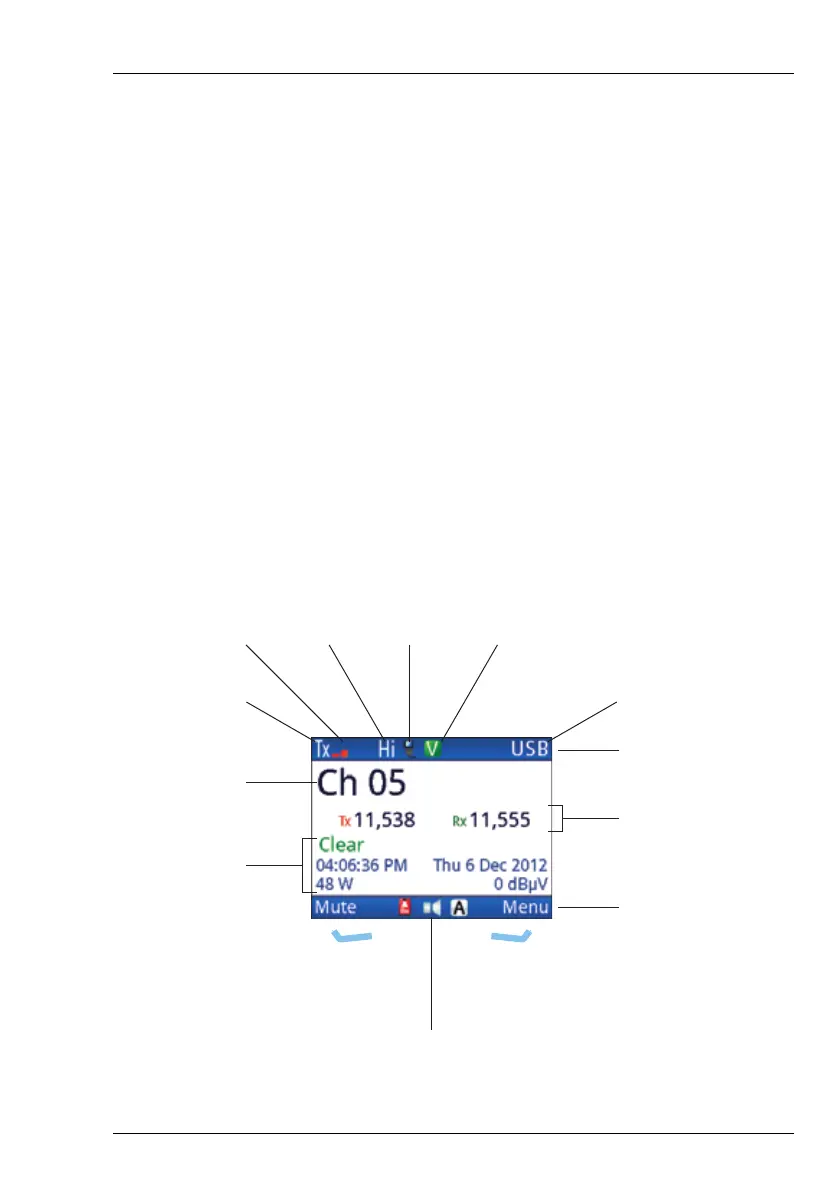

Figure 17: Channel screen
channel name
Tx/Rx frequency
status areas
menu bar
title bar
mode
mute type
indicator
(highlighted
when mute is on)
call type
icon
Tx power
setting
signal
strength
indicator
Rx/Tx
indicator
left
software
key
right
software
key
volume
indicator
