INSTALLING THE TRANSCEIVER
OVERVIEW OF MOBILE STATIONS
Envoy™ Transceiver Getting Started Guide 81

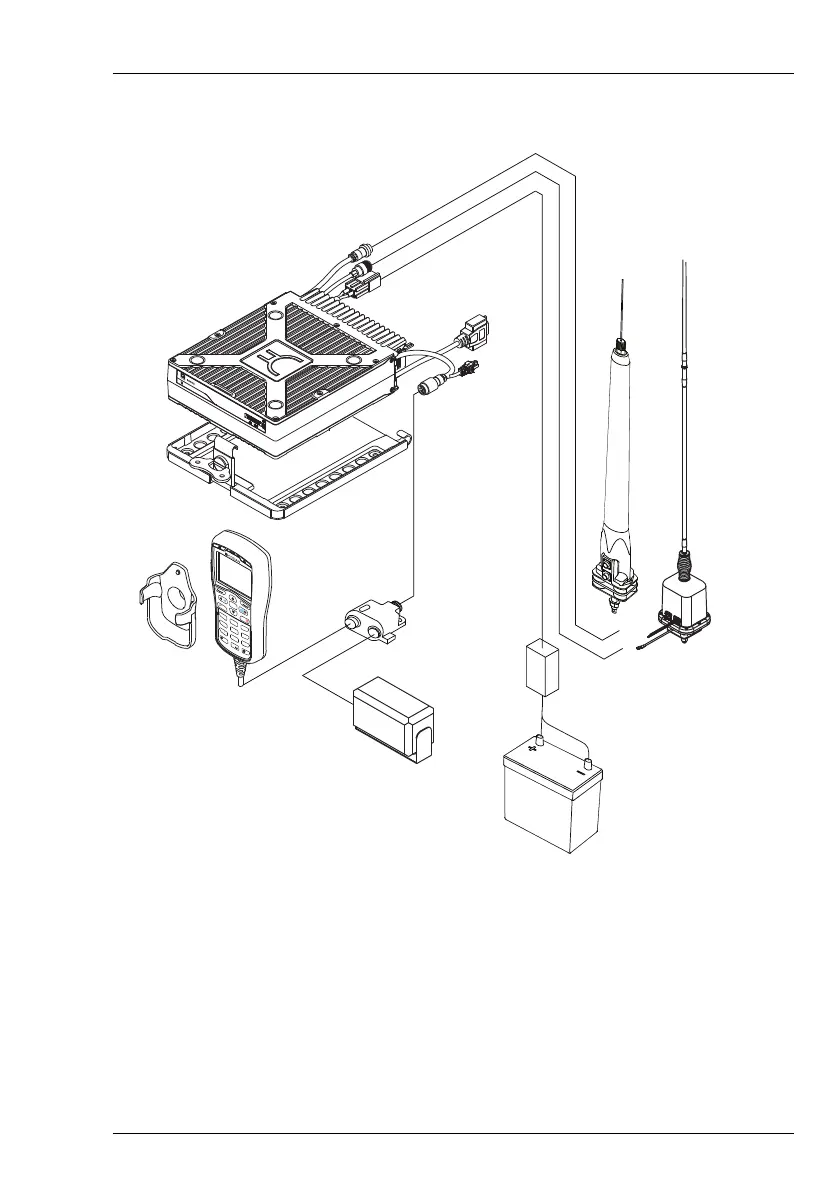

Figure 21: Typical mobile station
NOTE: A range of ancillary equipment may be
connected to the Envoy™ Transceiver using the
6-way and 15-way connectors at the rear of the
RF unit.
CALL
SCAN
OK
1
TUNE
FUNC
MODE
FREE Rx
SEC
V
S
VIEW
EASI
TALK
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
2
3
4
5
6
7
8
9
0
RF Unit
™
Type 2210
Serial No.
antenna control
antenna
battery
battery
speaker
handset
handset cradle
RF unit
RF unit cradle
handset and speaker
connector
10-way
connector
15-way
connector
6-way
connector
9350
3040
