InteliMains
NT
, SW version 3.0
InteliMains-NT-BTB-3.0-Reference Guide.pdf, ©ComAp – June 2013
To disable issuing the breaker close command (i.e. for test purpose) adjust
this setpoint to 0. Synchronizing will continue until timeout occurs or the
breaker is closed externally.
NOTE:

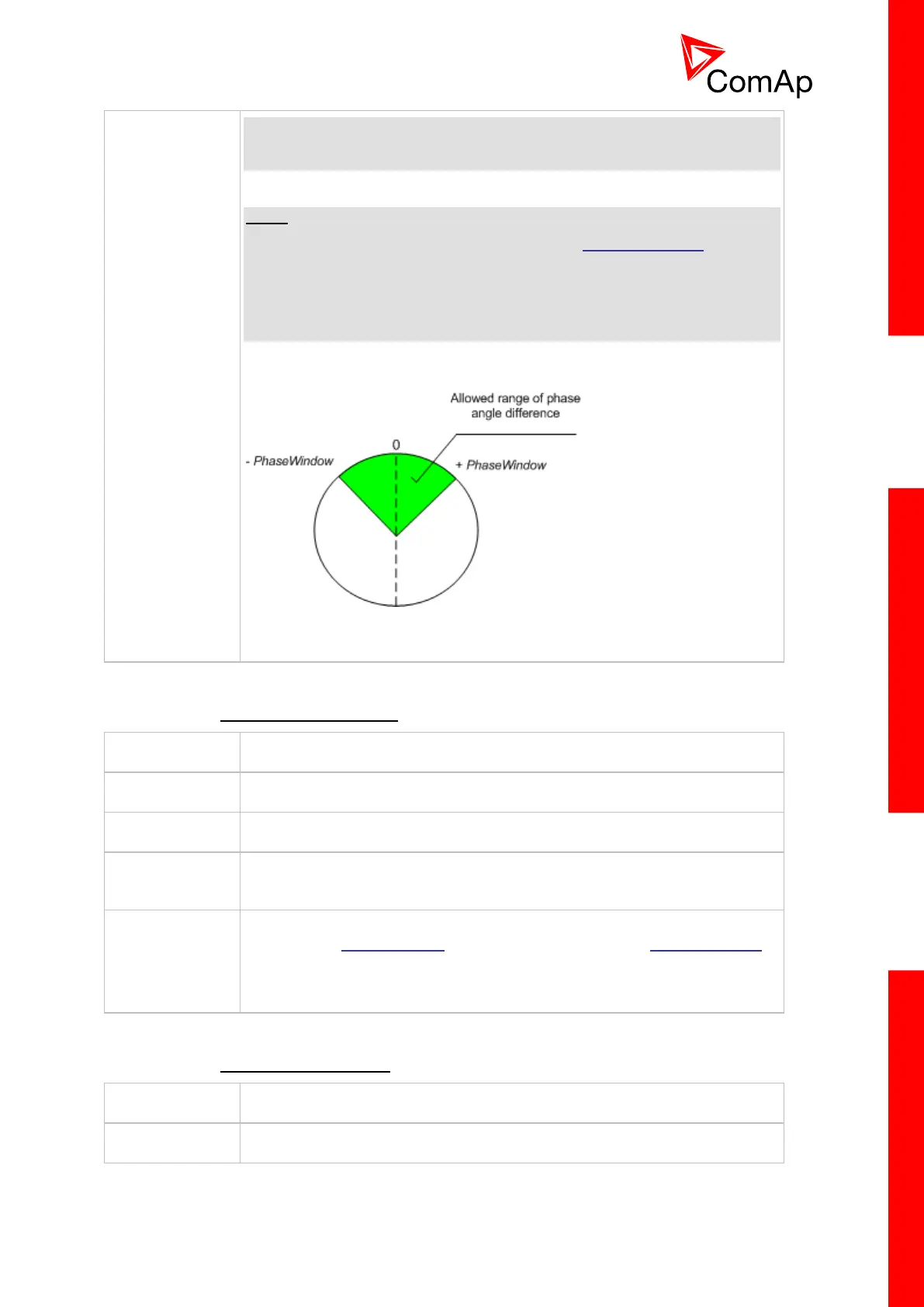

The setpoint works as a window surrounding the BRtoBLAngleReq setpoint.
E.g. for BRtoBLAngleReq = +30° and Phase window = 5°, the breaker
closure is allowed for phases +25° to +35°.
If you want to lock out the breaker closing during synchronizing control loop
test, set Phase window = 0. This allows the control loop setpoints to be tuned
while actual breaker closing is blocked.
12.2.9.4 Setpoint: Dwell time
This setpoint adjusts the period of time that the phase angle difference must
stay within +/-Phase Window and voltage difference within Voltage Window
before the respective breaker, which is actually beeing synchronized, is
closed.
12.2.9.5 Setpoint: Freq gain
