InteliATS

PWR, SW version 2.5, ©ComAp – May 2015 32

IA-NT- PWR-2.5-Reference Guide.pdf

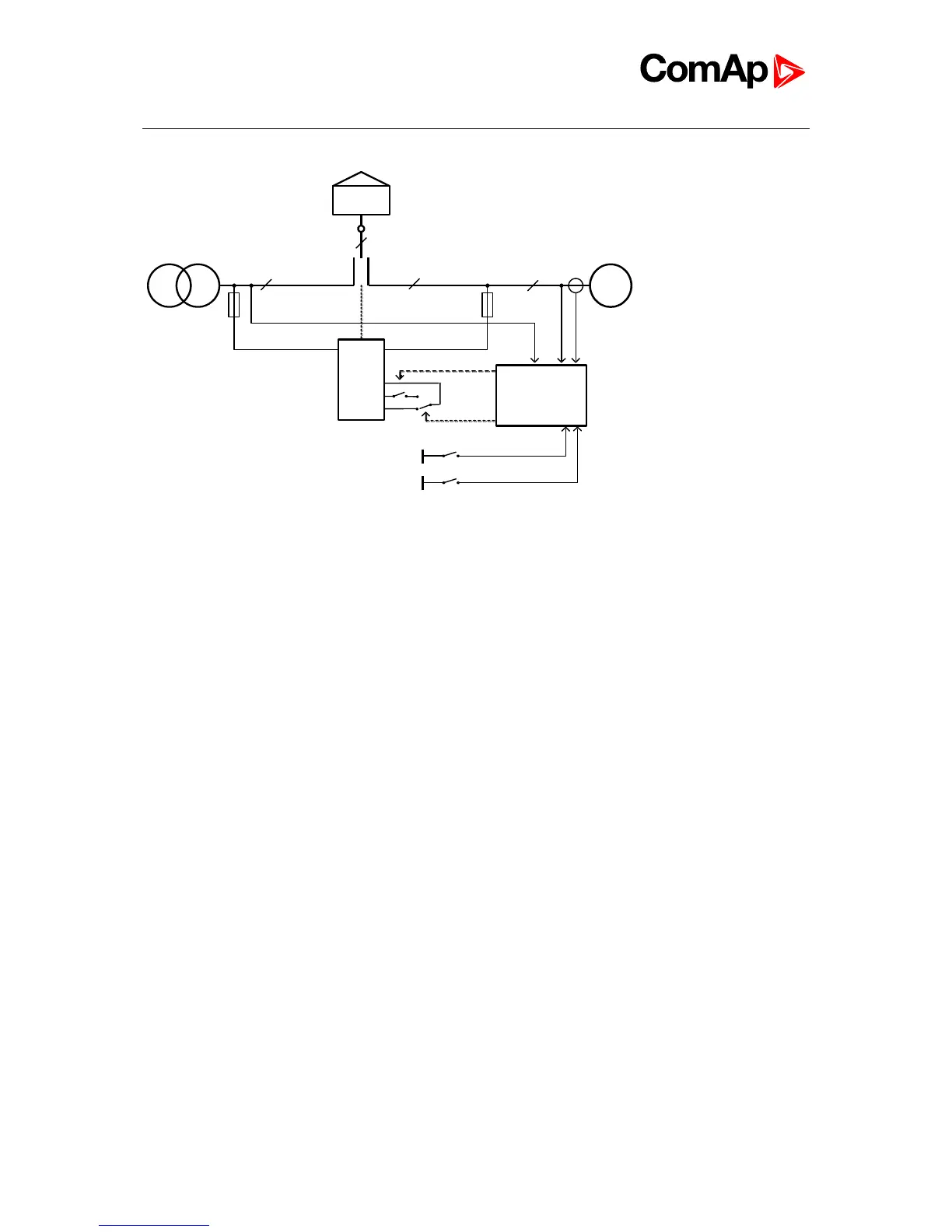

AMF using three-position ATS with feedbacks

IA-NT

3xU

MCB FEEDBACK

GCB FEEDBACK

MCB CLOSE/

OPEN

GCB CLOSE/

OPEN

ATS on "II" position

LOAD

ATS

I II0

ATS on "I" position

Specification

 Automatic remote gen-set start when the mains fails (AUT mode)

 Three-position ATS control with feedbacks, pass through neutral position

 Break transfer on mains failure

 Break return on mains return (Load reclosing)

 Test mode (set running and waiting for mains failure)

Hardware requirements

1x IA-NT PWR

Setpoints

MCB Logic = “CLOSE-ON”

Table of Contents1
Table of Contents2
Document Information4
- Clarification of Notation4
- Text4
- Conformity Declaration4
General Guidelines5
- What Is in this Manual5
Description7
- Description of the Controller System7
- Configurability9
- What Is in the Package9
- IL-NT RS232 Communication Module10
- IL-NT RS232-485 Communication Module13
- IL-NT S-USB Service USB Communication Module14
- IL-NT RD Remote Display Software15
- IB-Lite Communication Module15
- IL-NT-GPRS GSM and GPRS Plug-In Modem19
- IL-NT AOUT8 Gauge Driver Module20
- IL-NT BIO8 Hybrid Binary Input/Output Module21
- Internetbridge-NT22
- Programming of IA-NT Controller23
User Interface24
Terminals25
- IA-NT PWR Terminals and Face25
Installation26
- Mounting26
- Dimensions27
Recommended Wiring28
- IA-NT PWR - Wiring Diagram28
Applications29
- AMF Using Two Separate Breakers with Feedbacks (MCB and GCB)29
- AMF Using Two Separate Breakers with Feedbacks (MCB and GCB) + Test on Load30
- AMF Using Two-Position ATS with Feedback31
Getting Started35
- How to Install35
- Current Measurement37
- CT Location38
- Voltage Measurement and Generator Connection Types38
- RS485 Connection42
Inputs and Outputs44
- Binary Inputs IA-NT - Default45
- Binary Inputs - List45
- Binary Outputs IA-NT - Default48
- Binary Outputs - List48
Setpoints54
- Password54
- Basic Settings54
- Comms Settings61
- Engine Params64
- Gener Protect67
- AMF Settings69
- Sync Ctrl73
- Date/Time74
- SMS/E-Mail75
Function Description77
- Operating Modes77
- Circuit Breakers Timing80
Alarm Management82
- Warning (WRN)82
- Trip (TRP)82
- Mains Failure (MF)82
- AMF Time Chart - Genset OK83
- AMF Time Chart - Genset Not Started Properly83
- Voltage Phase Sequence Detection84
Gen-Set Operation States85
- List of Possible Events85
- History File86
Init Screens88
- Customer Logo Screen88
- Firmware Init Screen88
- Language Screen88
- User Interface Screen88
Remote Control and Data Logging89
- PC Software - Liteedit89
- Direct Cable Connection89
- Modem Connection90
- Internet Connection91
- IB-Lite92
- Il-Nt-Gprs93
- Airgate96
- Locate96
- Modbus Protocol97
IL-NT-RD Remote Display Software102
- General Description102
- Warning102
- IL-NT-RD Software Installation102
- IL-NT-RD Wiring103
- Function Description105
- SW Compatibility105
Maintenance106
- Backup Battery Replacement106
Technical Data108
- Inputs/Outputs Overview108
- Power Supply108
- Operating Conditions108
- Dimensions and Weight108
- Mains and Generator109
- Binary Inputs and Outputs109
- IL-NT RS232 Interface (Optional Card)109
- IL-NT RS232-485 Interface (Optional Card)110
- IL-NT S-USB Interface (Optional Card)110
- IB-Lite Interface (Optional Card)110
- IL-NT-GPRS Interface (Optional Card)110
- IL-NT AOUT8 Interface (Optional Card)110
- IL-NT BIO8 Extension Module (Optional Card)111
