For generator voltage from 10V to < 50% of nominal voltage, Wrn Stop Fail has delay 1s
For generator voltage > 50% of nominal voltage, Wrn Stop Fail has delay 200ms
Oil pressure > Starting Oil Pressure (page 228), Wrn Stop Fail has delay 1 s
Binary input OIL PRESSURE (PAGE 454) is in logical 0, Wrn Stop Fail has delay 1s
For detected RPM, there is no delay.
Stop engine conditions
If no engine running conditions are validated, then the controller will wait extra 12s before leaving the
Machine Stop state and releasing the STOP SOLENOID (PAGE 502) output.

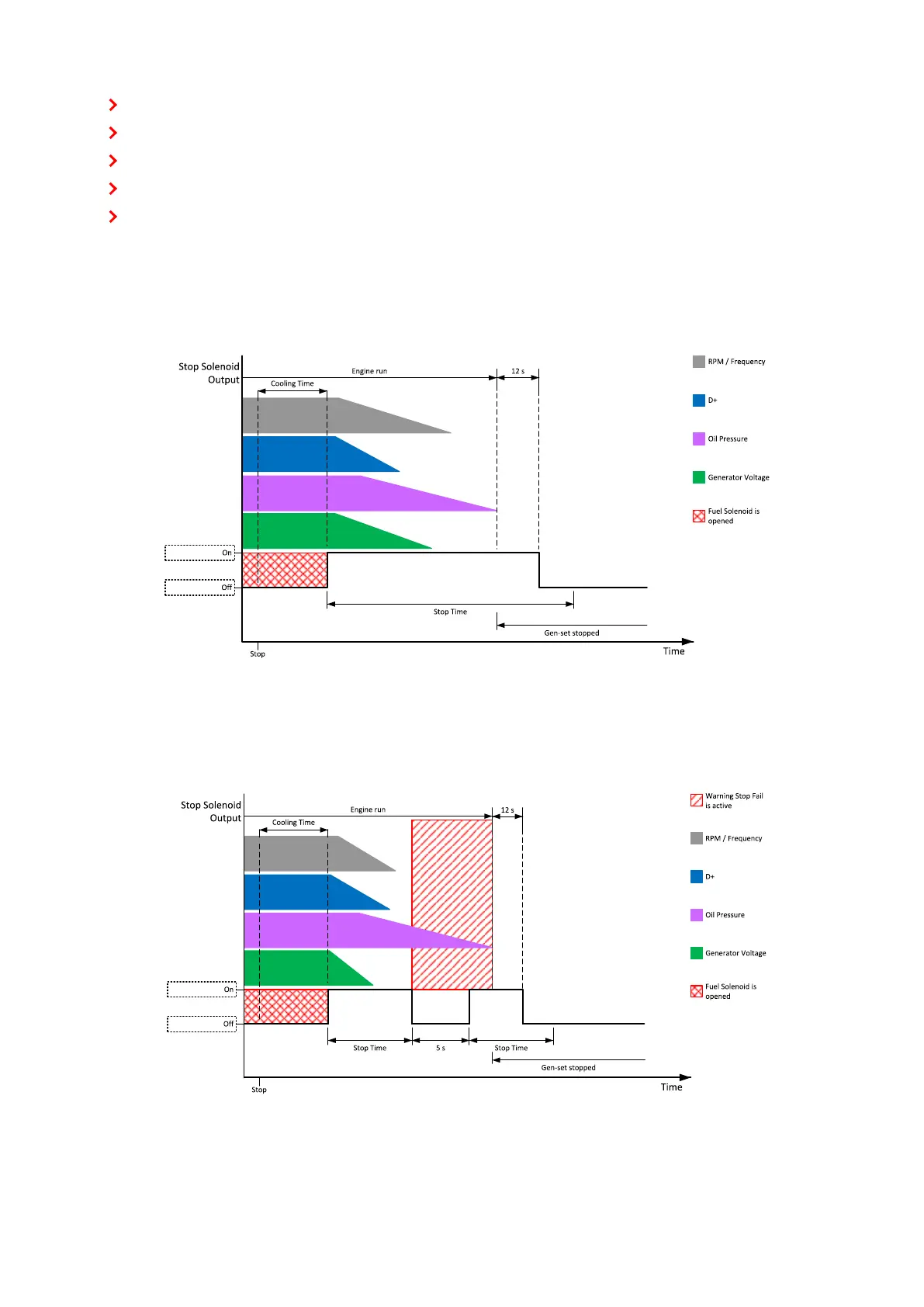

Image 5.17 Engine stops in Stop Time (page 240)
If the total stopping time will exceed setpoint Stop Time (page 240) then the Wrn Stop Fail (page 537) and
binary outputs for stopping are activated. The controller will continuously try to stop the engine.
Image 5.18 Engine stops after first Stop Time (page 240)
