Selecting the input for limit.
Setpoints must have the correct resolution and dimension as protection source value.
Existing setpoint
New user setpoint
Existing user setpoint
Prefix is added to the name based on protection type / level
Selecting the input for delay.
Setpoints must have the correct resolution 0.1 and dimension [s]
Existing setpoint
New user setpoint
Existing user setpoint
Prefix is added to the name based on protection type / level.
Text input for Alarm / History message.
If user protection state is checked then created user protection has LBO located in Bin Values
in the Group:User Protection States (page 422).

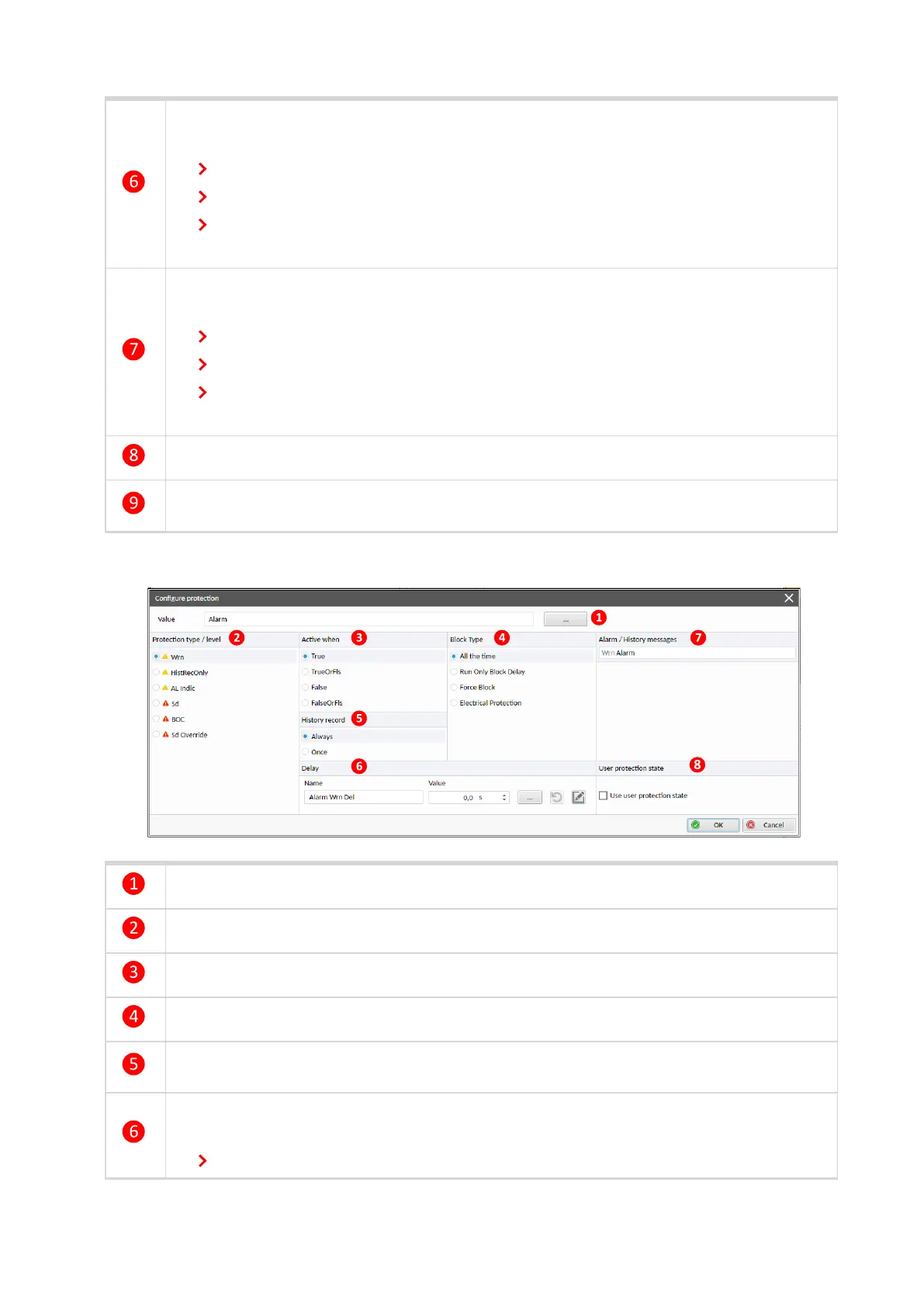

Adding binary protection
Selecting the input source see User Protections on page 123.
Selecting the protection type see Fixed Protection types on page 120.
Selecting the protection activation see Protection activation on page 123.
Selecting the block type see Protection blocking on page 125.
Selecting if the occurrence of a protection is recorded every time or only once after a Fault
Reset.
Selecting the input for delay.
Setpoints must have the correct resolution 0.1 and dimension [s]
Existing setpoint
