Description
Use this input to start and stop the Gen-set in AUTO and TEST mode.
Note: If the binary input Remote Start/Stop is active and engine is running and mains failure occurs,
the MCB breaker opens, after Transfer Delay (page 270) the GCB breaker is closed. Once the mains
is OK, the Mains Return Delay (page 269) elapses and the GCB breaker is opened. Then after
Transfer Delay (page 270) is MCB breaker closed. Gen-set remains running as long as binary input
Rem Start/Stop is active. For more details see timing diagram below.

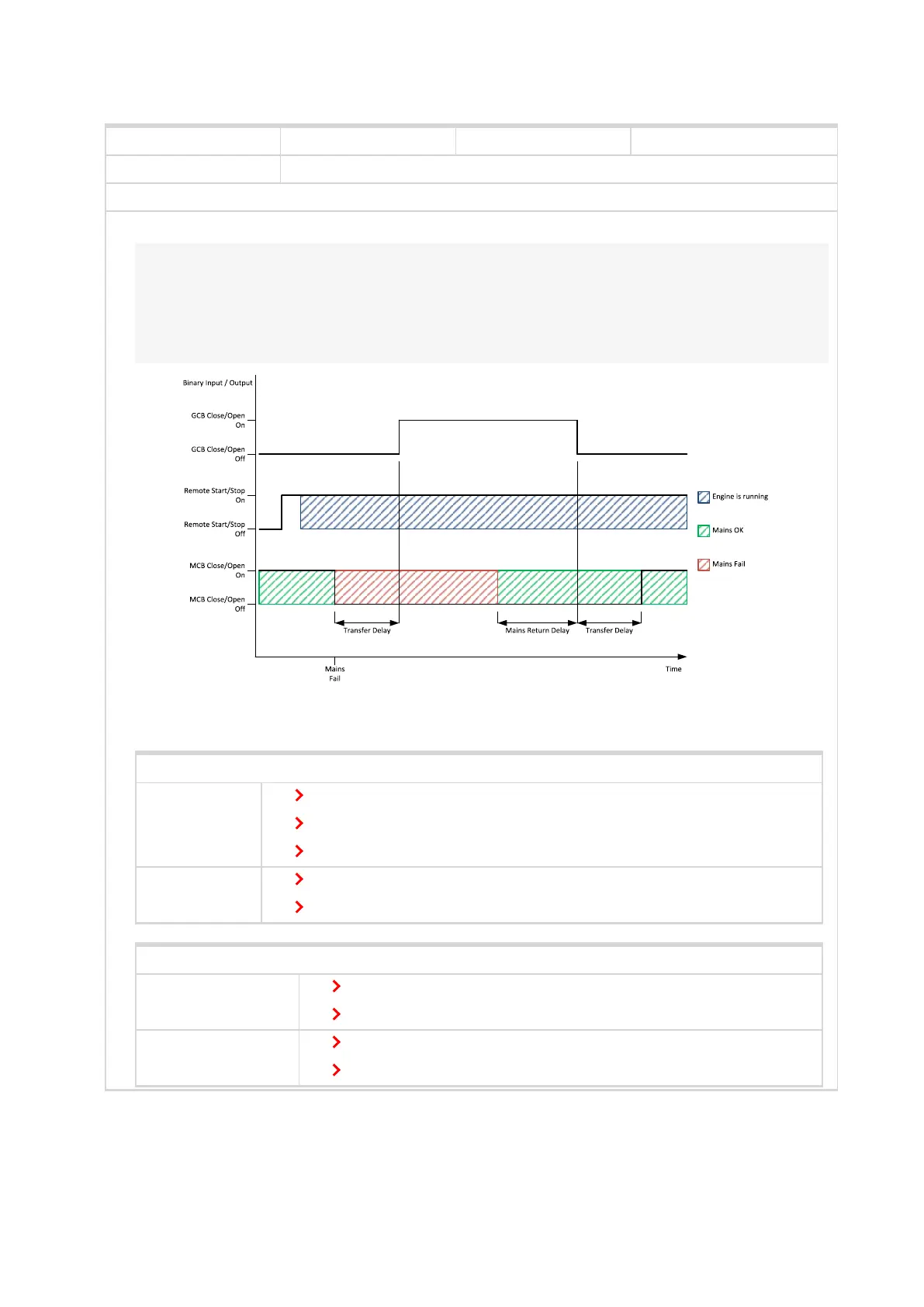

Image 8.29 Remote Start/Stop
Taken action in AMF application (AUTO Mode)
Active
Start the Gen-set and stay running with opened GCB if Mains OK.
Go to Island if Mains fails (due to AMF function).
If Mains is not OK the AMF function starts the Gen-set to Island anyway.
Inactive
Stop the Gen-set if Mains is OK
If Mains not OK the Gen-set stays running due to AMF function anyway.
Taken action in MRS application (AUTO Mode)
Active
Starts the Gen-set – No delay
Close GCB
Inactive
Open GCB
Stop the Gen-set – No delay
Remote Start/Stop
