ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
580

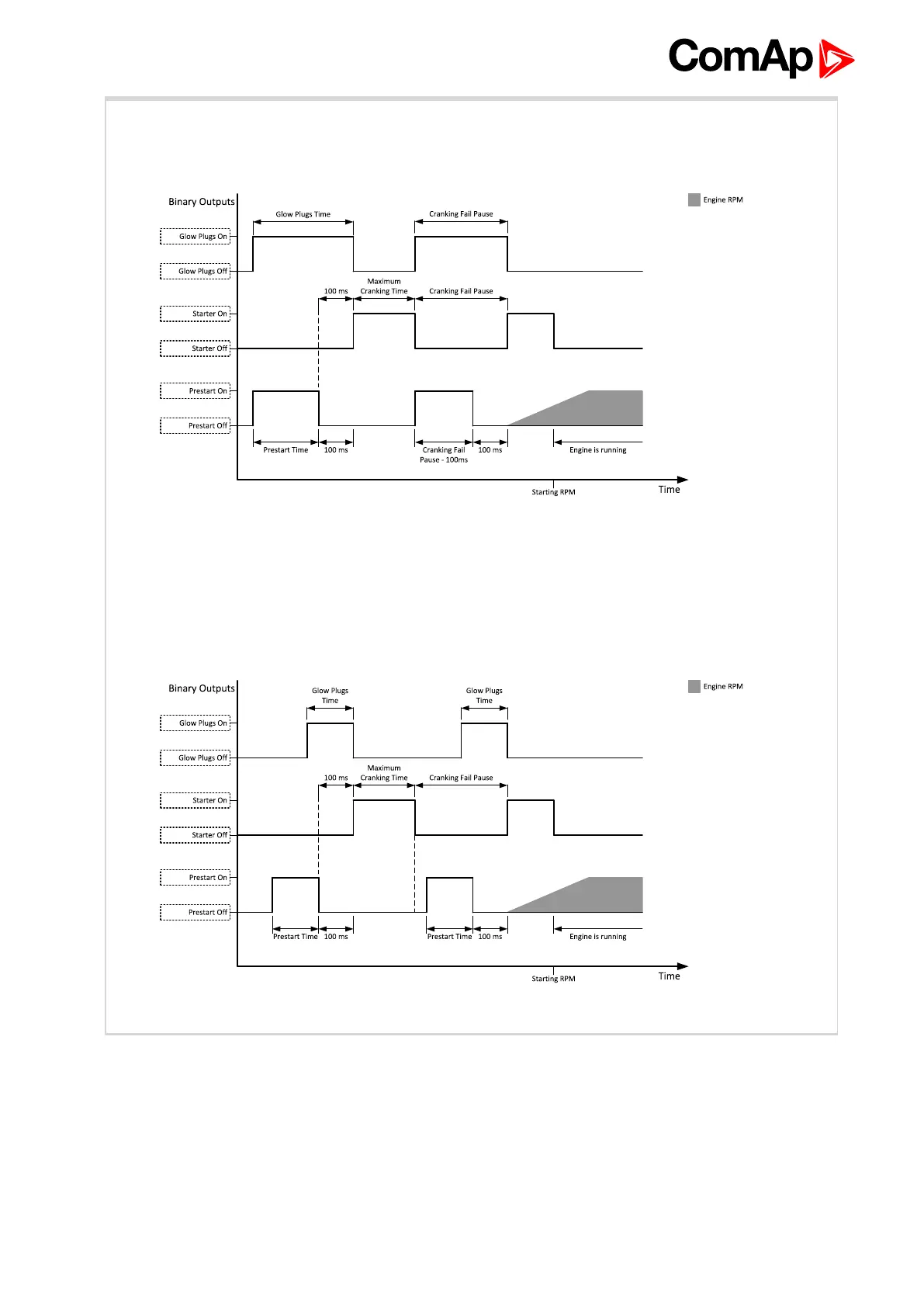

When the Glow Plugs Time (page 192) is longer than Cranking Fail Pause (page 190) then the Glow
Plugs Time (page 192) in Cranking Fail Pause (page 190) is long as Cranking Fail Pause (page 190).
Image 8.175 Glow Plugs in Cranking Fail Pause 1
When the Glow Plugs Time (page 192) is shorter than Cranking Fail Pause (page 190) then the Glow
Plugs Time (page 192) in Cranking Fail Pause (page 190) is long as normal Glow Plugs Time (page
192).
Image 8.176 Glow Plugs in Cranking Fail Pause 2
6 back to Logical binary outputs alphabetically

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
