ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
597
Related FW 1.9.0 Related applications AMF, MRS
Comm object 24
Description
This output is dedicated for starter motor control. The number of cranking attempts is adjusted by setpoint
Cranking Attempts (page 189) in Engine Settings group. Cranking fail pause is adjusted by setpoint
Cranking Fail Pause (page 190).

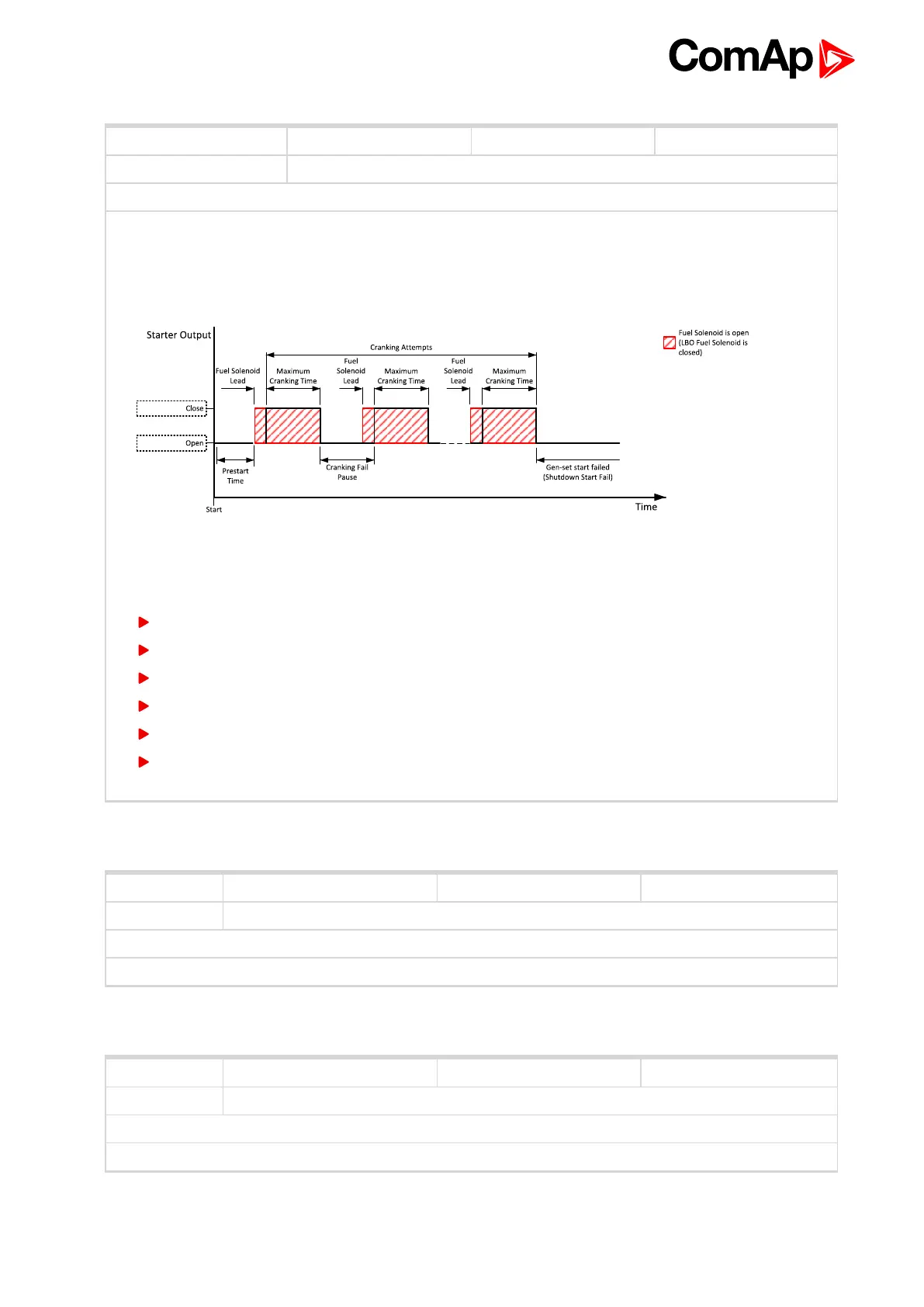

Image 8.185 Starter
The starter output opens when:
the “firing” speed is reached
maximum time of cranking is exceeded
request to stop comes up
D+ value is higher than D+ Treshold (page 206)
Oil pressure value is higher than Starting Oil Pressure (page 192)
Generator voltage > 25% of Nominal Voltage Ph-N (page 179) or Nominal Voltage Ph-Ph (page
179) (any phase)
Starter
6 back to Logical binary outputs alphabetically
Related FW 1.9.0 Related applications AMF, MRS
Comm object 26
Description
Logical binary output which is still in logical 0.
Still Log 0
6 back to Logical binary outputs alphabetically
Related FW 1.9.0 Related applications AMF, MRS
Comm object 27
Description
Logical binary output which is still in logical 1.
Still Log 1
6 back to Logical binary outputs alphabetically

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
