ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
713

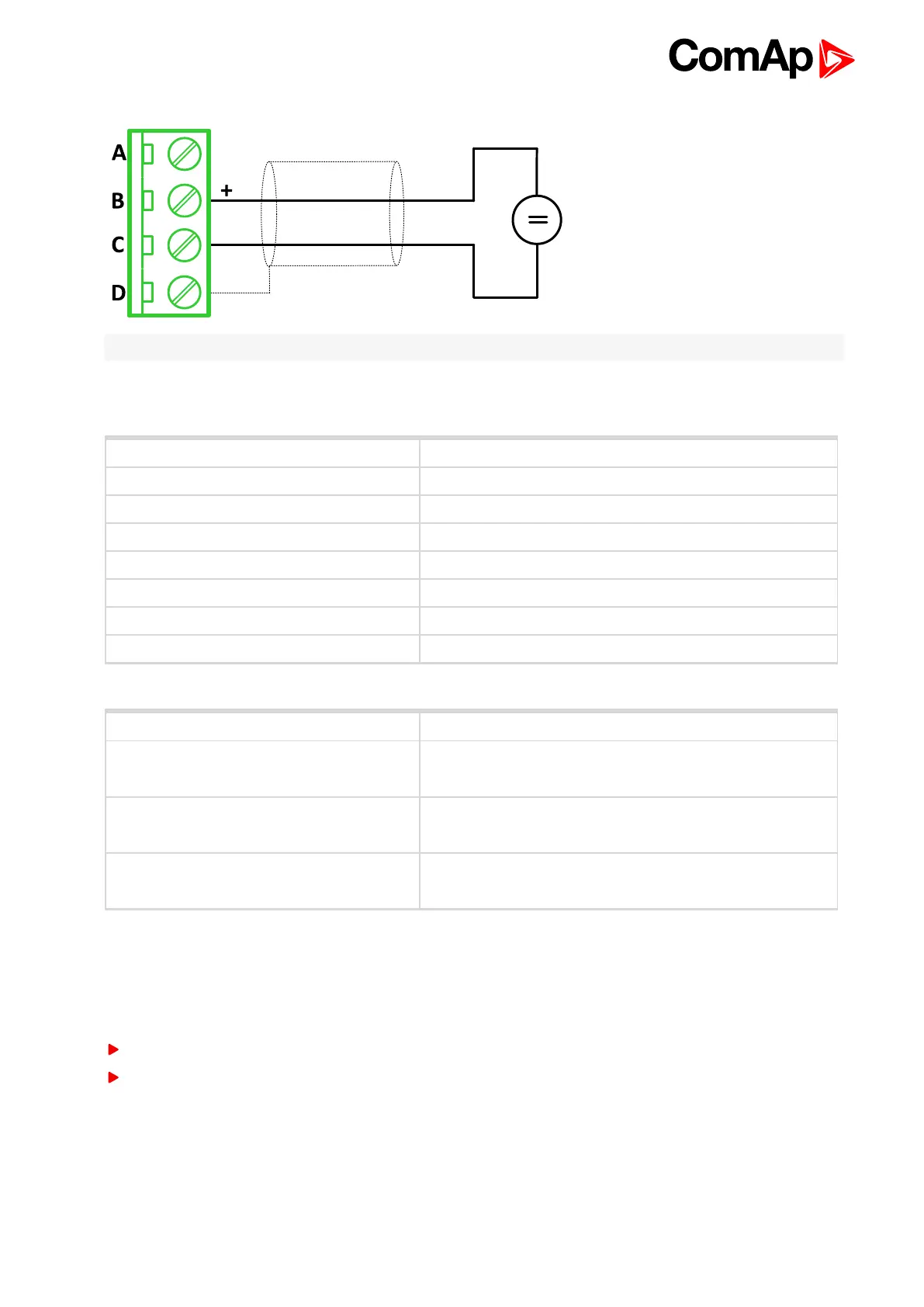

Voltage sensor
Note: Ranges: ±1 V, 0 – 2,5 V, 0 – 5 V, 0 – 10 V
Technical data
Power supply 8 to 36 V DC
Current consumption 35 mA at 24 V ÷ 100 mA at 8 V
Interface to controller CAN1
Protection IP20
Storage temperature - 40 °C to + 80 °C
Operating temperature - 30 °C to + 70 °C
Dimensions (WxHxD) 110x110x46 mm (4,3”x4,3”x1,8”)
Weight 221,5 grams
General data
Number of channels 8
Voltage
Range 0-10 V
Accuracy: ± 0,25 % of actual value + ± 25 mV
Current
Range: ±20 mA
Accuracy: ± 0,25 % of actual value + ± 50 µA
Resistive
Range: 0- 10 kΩ
Accuracy: ± 0,5 % of actual value + ± 2 Ω
Analog inputs
Inteli IO8/8
Inteli IO8/8 module is an extension module equipped with binary inputs, binary outputs and analog outputs.
Inteli IO8/8 is the name of the module, but it is possible to configure the module (by internal switch) to two
configurations:
Inteli IO8/8 - 8 binary inputs, 8 binary outputs and 2 analog outputs
Inteli IO 16/0 - 16 binary inputs, 0 binary outputs and 2 analog outputs
The detection of communication speed is indicated by fast flashing of status LED. Once the speed is detected
the module remains set for the speed even when the communication is lost. Renewal of communication speed
detection is done by reset of the module.

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
