DETAILED TECHNICAL FEATURES OF THE ROBOT
15
Comau Robotics Product Instruction

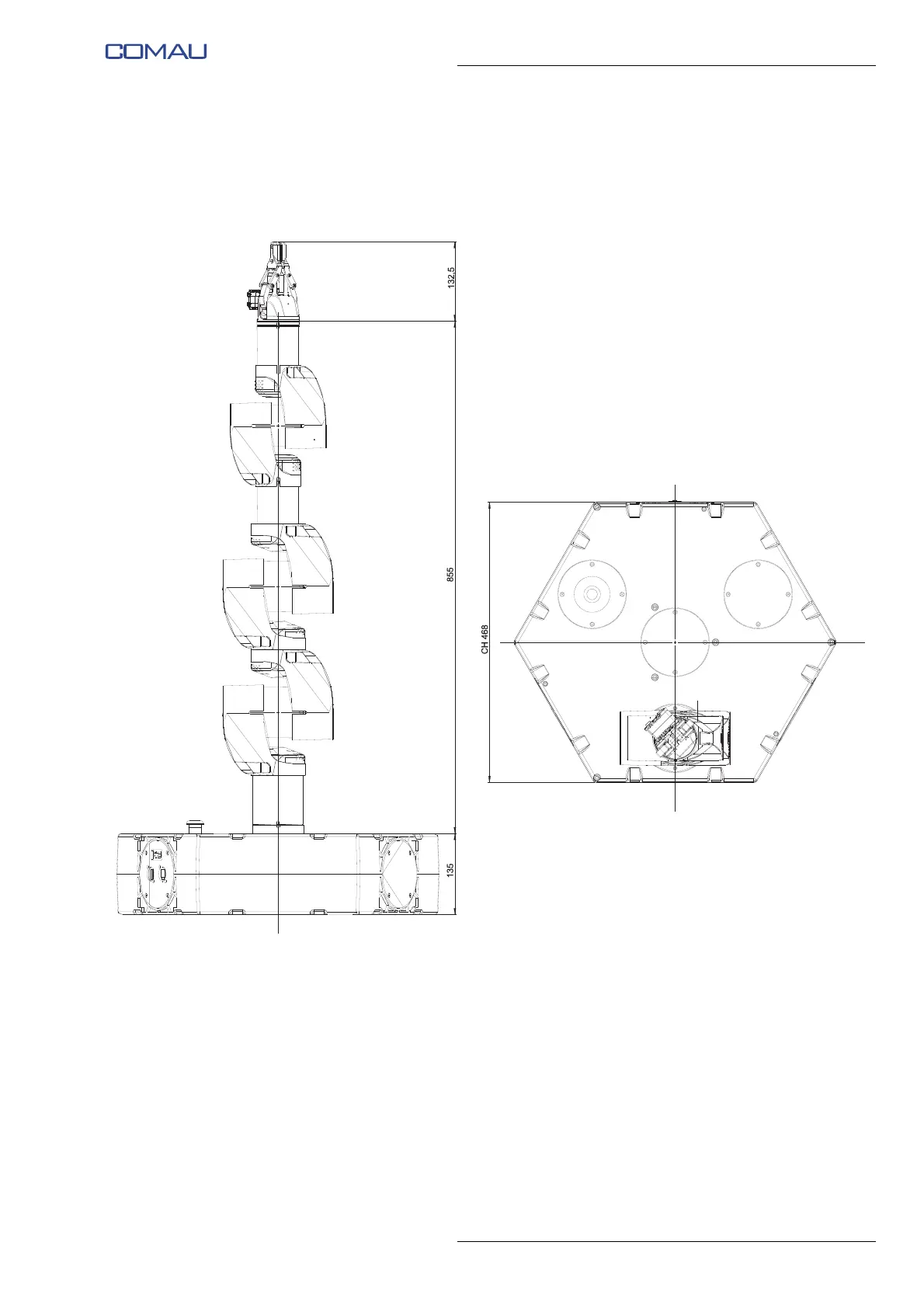

Fig. 2.4 - Robot workspaces in configuration of 6 axes - e.DO Offset
with e.DO Gripper
* = Calibration position
Dimensions in millimetres
