Compac C5000 Service Manual

93.
Incoming Mains
C5000 K-Factor Board
The Compac C5000 K-Factor board is the Main Calculator in the Compac Dispenser. It
communicates to the KG100 meter to get the current mass and returns it to the C5000
Processor board. It also reads the Start and stop buttons for both sides (side A and side
B).
The Compac C5000 K-Factor board also is a user interface enabling the setup operation
of the dispenser .

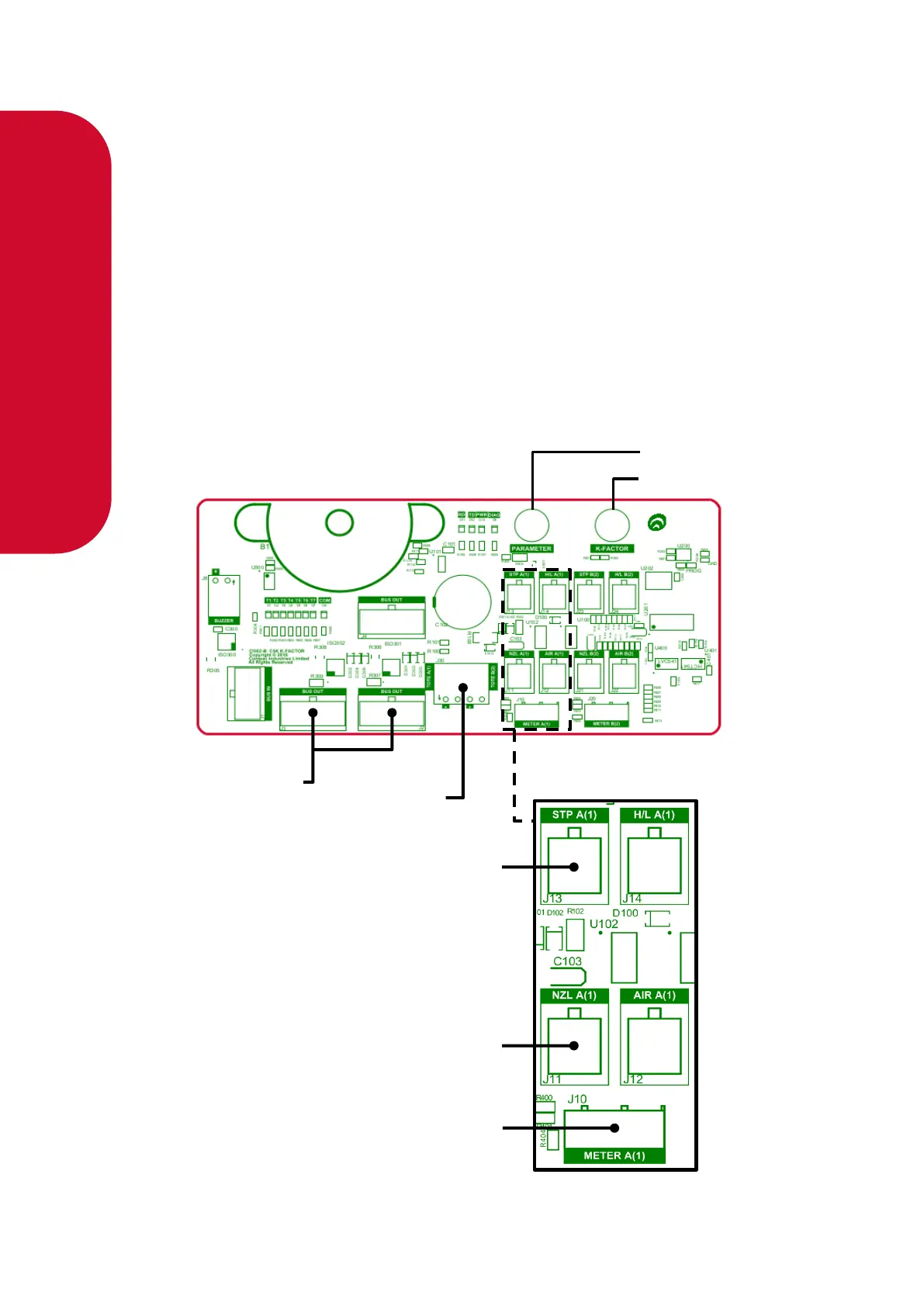

These set-up interfaces (located on the drawing) are:
- The Parameter switch.
- The K-Factor switch.
Side A Connections
Connect
Meter to
here
Start button
to here
Stop button
to here
Connect
optional
mechanical
totes to here
Bus out system
cables
Parameter
Switch
K-Factor Switch
