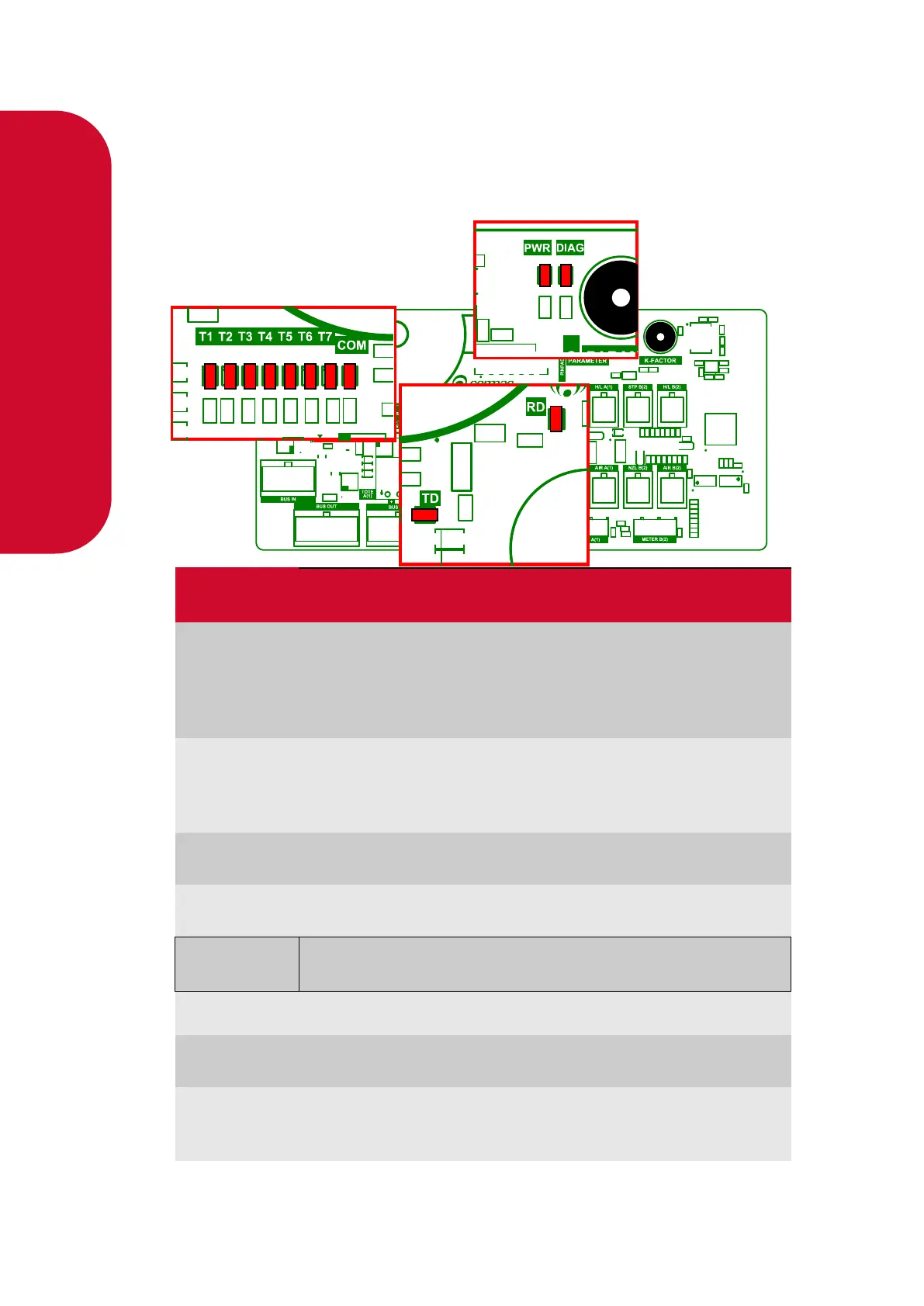

LED indicators are used to provide power, output status, and diagnostic information.
Indicates power is being supplied
to the k-Factor a board. If it is not
lit there could be no power or there
is a problem with the combus
cable
Flashes when receiving Combus
messages. This indicates the
C5000 processor is sending
messages to K-Factor board
Flashes when sending messages
on the Combus
Provides diagnostic information
(see below).
The diagnostic LED D9 flashes in 2 different states when the
processor is working properly, as outlined in the table below.
The hose is idle and in stand-alone
mode.
The start button is being pressed
or the nozzle has been lifted from
its holster.
