Compac C5000 Service Manual

30.
K-Factor Settings
Changing COMMS

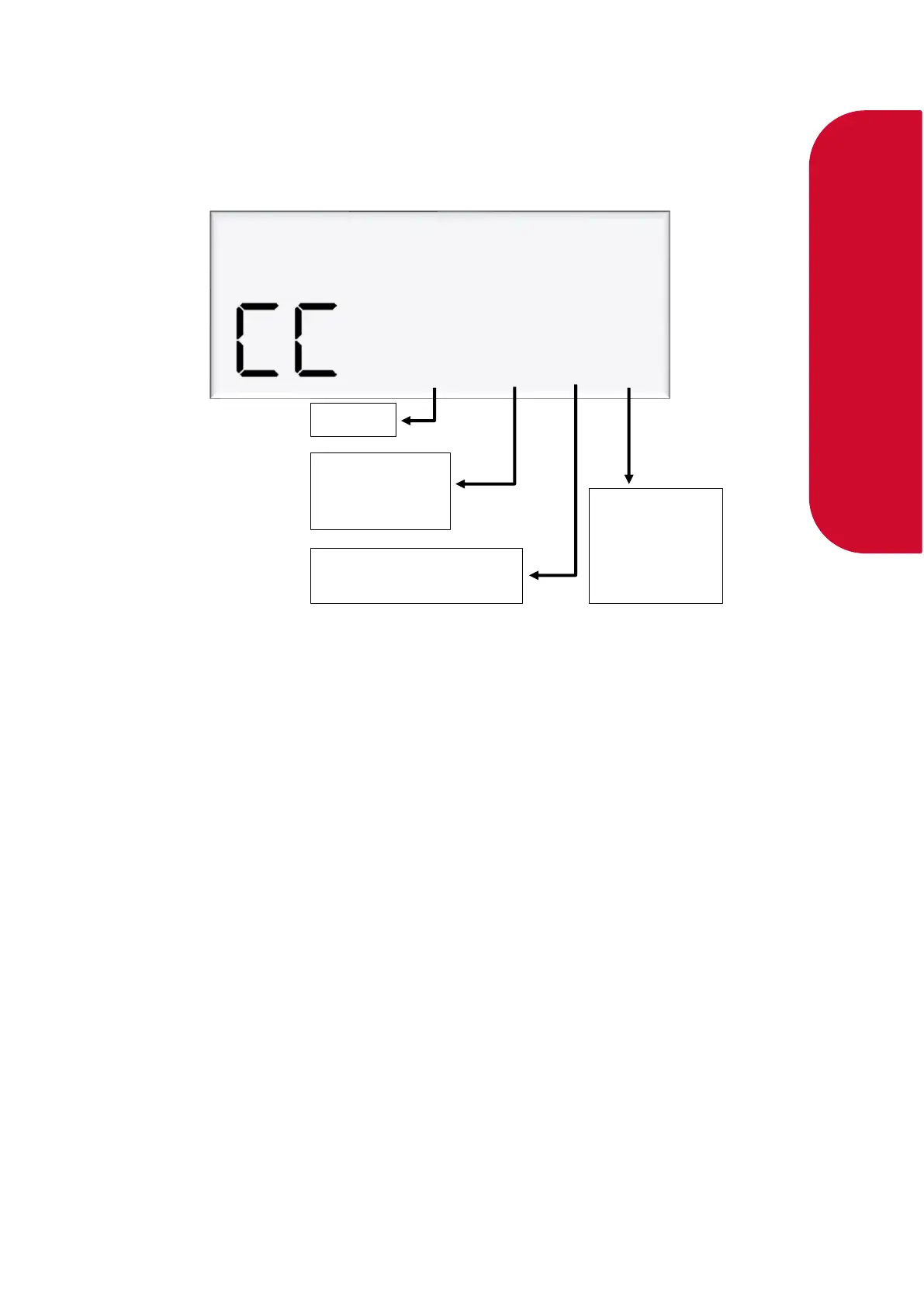

Use the following diagram to setup COMMS as required.
Change the Protocol and the mode to match the controller’s settings. Channel 1 is the default channel
for dispensers (channel number should always match the with the comms board terminal block
used).
E.g. CC = 0113 Gilbarco on Channel 1, 5 Digit mode
GPIO K Factor settings
The GPIO settings in the K factor board is where you set the GPIO specific settings. The below figure
shows details of all the options available for each setting.
0113
Unused
Mode
1 = 5 digit
0 = 6 digit
Channel
0,1 (default) and 2
Pump Protocol
0 = Disabled
1 = Compac
2 = PEC
3 = Gilbarco
