Compac C5000

16.
Dispenser Set
-Up
Slave Display Configuration
Slave displays are the displays that are additional to the K-factor board display. You can have up
to 4 slave displays connected to one C5000. These displays can be configured as one of the
following:
• Clone of the main display. This will display what is on the A side display but not error
check the LCD
• Side A will display what is on the A side display but will error check the LCD
• Side B. will display what is on the B side display but will error check the LCD
• disabled.
Slave display configuration is a two-step process.
1. Assign the correct number to the slave display by changing the slave display board dip
switches.
2. Change D5 setting to assign a side to the slave display
Assigning a number to slave display

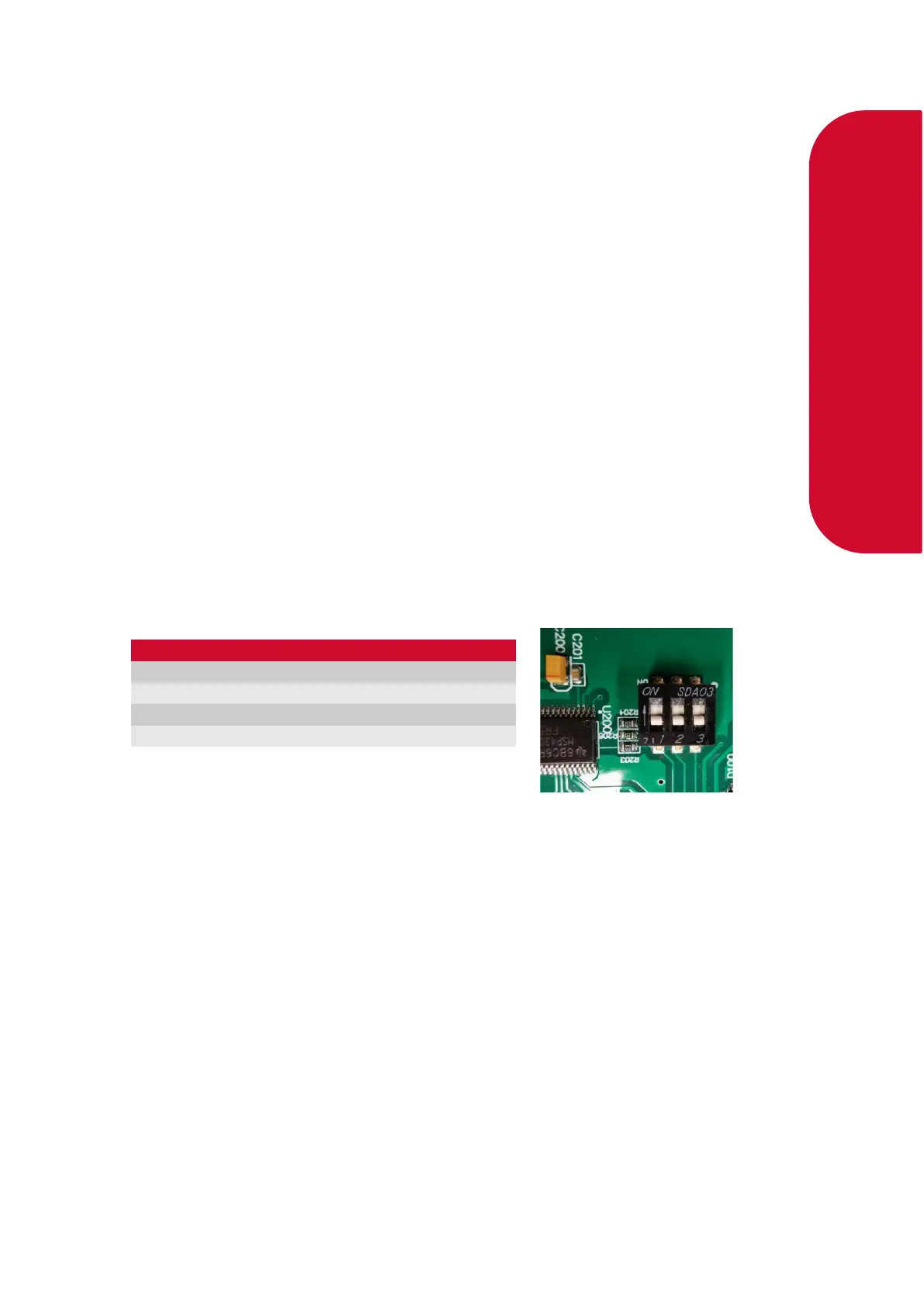

Slave display numbers can be set with dip switch 2 and 3 on the slave display board. Use the
following table as a guide to configure the slave displays
Slave Display
Switch 1
Switch 2
Switch 3
1
OFF
OFF
OFF
2
OFF
OFF
ON
3
OFF
ON
OFF
4
OFF
ON
ON
The first digit from the right correlates to slave display 1, and so on. In this example, slave
display 1 – clone, slave display 2 – disabled, slave display 3 - side A, slave display 4 - side B.
Note: Each digit can have 4 different values, each value has a different meaning.
0 – Disabled
1 – Clone
2 – Side A
3 – Side B
