CAUTION: Follow all safety precautions listed at the front of this manual.
Before doing any work on the valve, ensure that the power is off and the
system pressure is reduced to atmospheric levels. Ensure that the pressure is
removed from both the inlet and outlet ports of the valve and from the air
supply line.
Before you start, obtain the following replacement parts and equipment:
- FC-SK-0029 Oasis Gas Operated Valve Seal Kit
Always quote model and serial number of your dispenser when ordering.
To dissemble the valve:
CAUTION: Take care when disassembling the valve, as a lot of parts look
similar.

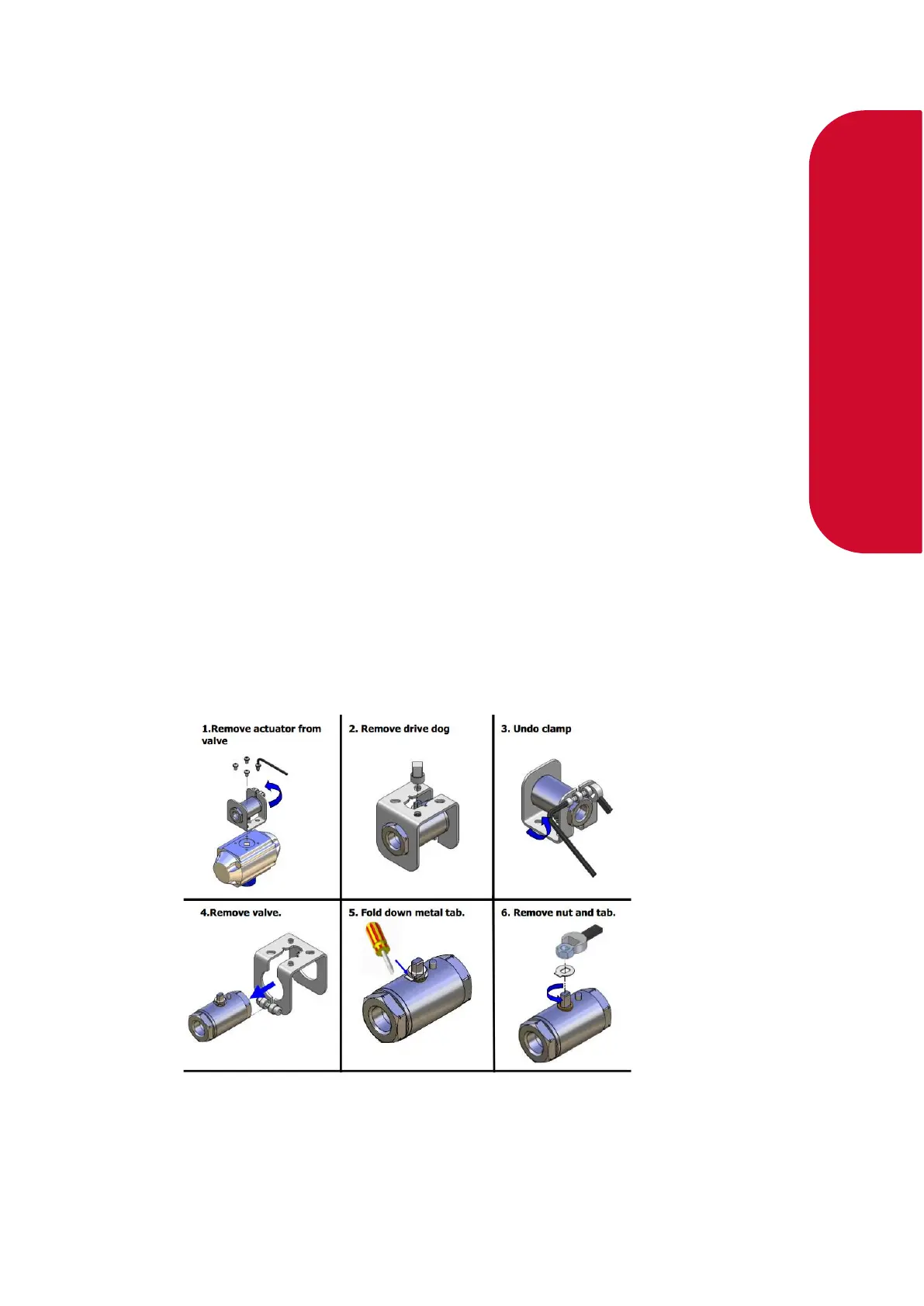

- Undo the pipework and remove the valve and actuator
- Undo the four Allen screws and remove the actuator from the valve
- Remove the drive dog (note orientation)
- Undo clamp (note orientation of clamp in relation to flow direction)
- Remove valve from the clamp
- Fold down metal locking tab
- Remove nut and tab
- Use a pick to pull out the stem seal and discard.
- Undo the end cap, remove the valve seat and discard it.
