Removal and Replacement Procedures 5-29
CAUTION:
Do not use the attached wiring to pull the connectors out of the sockets. This
will damage the wire and render the top cover unusable.
8. Disconnect the speaker1,2, touchpad3, indicator4, and switch5 cables from the
system board. Use the tweezers to release the connectors from the sockets.

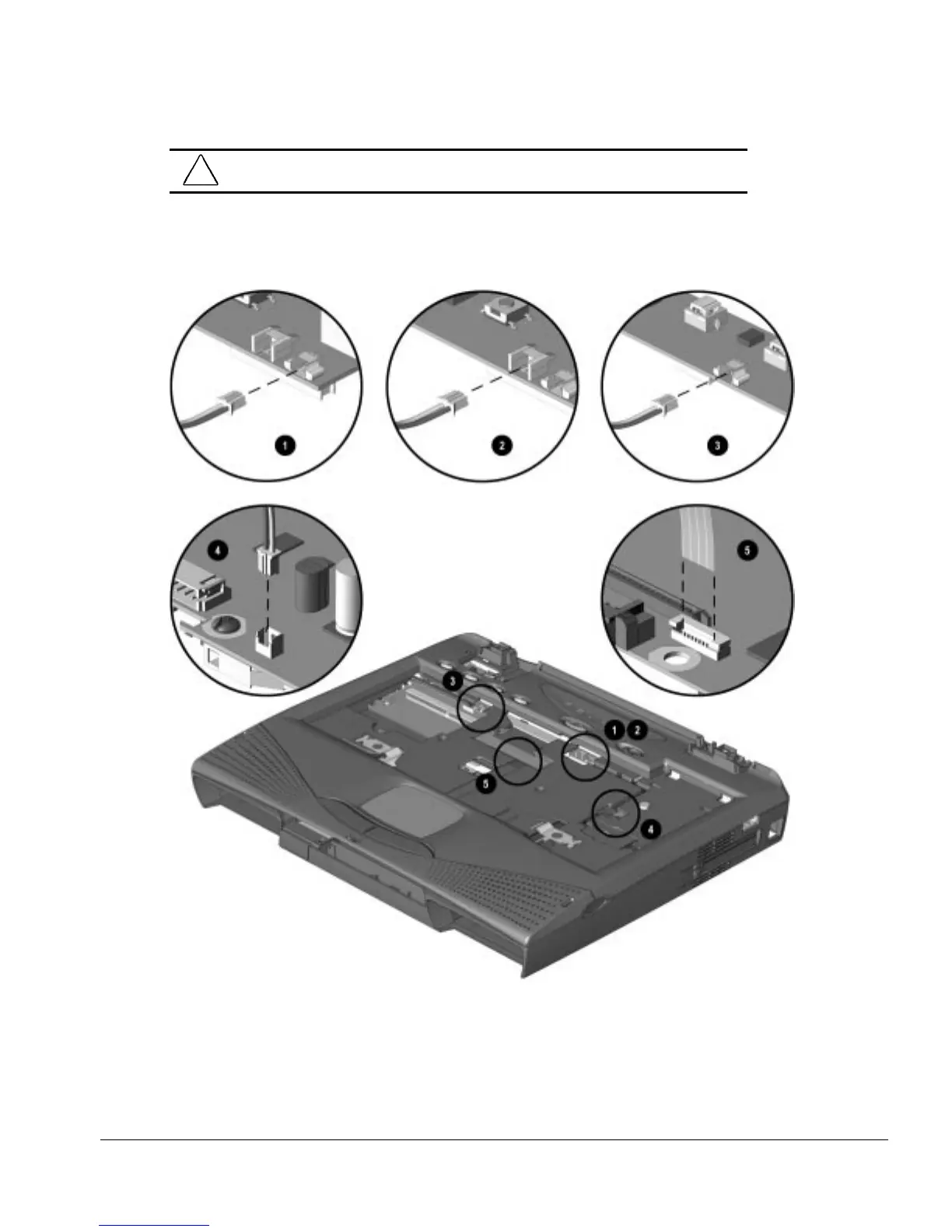

Figure 5-27.
Disconnecting the Cable from the System Board
