Compaq Armada 1700 User Manual

A-4 Connectors
Table A-8

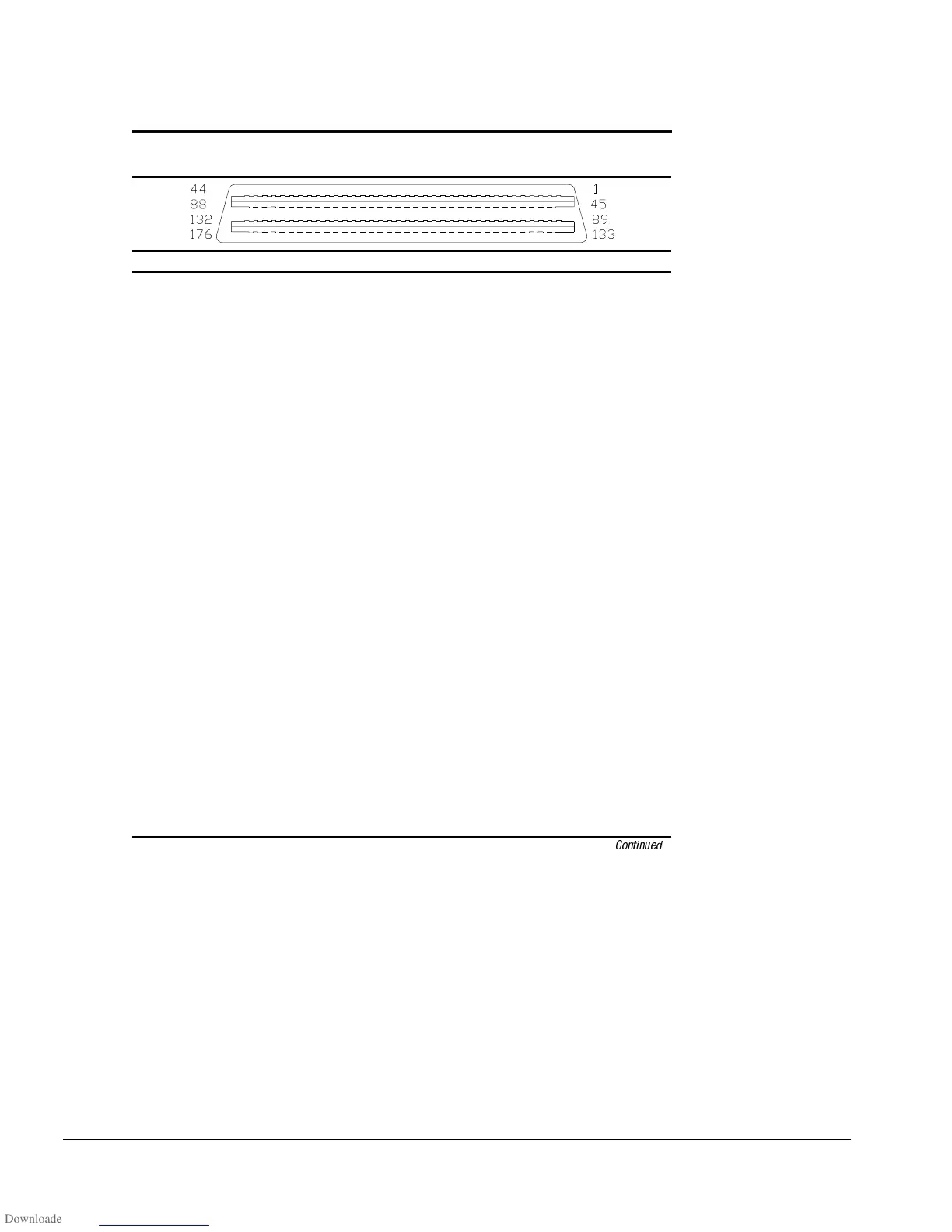

Expansion Connector
Pin Signal Pin Signal
1 GND 31 GREEN
2 GND 32 CRTVSYNC
3 NC 33 RED
4 GND 34 DDCCLK
5 GND 35 PWRLED
6 NC 36 DDCDATA
7 GND 37 DOCK_PWR_EN
8 GND 38 GND
9 AD[31] 39 SPKL
10 DEVSEL 40 LINE_L
11 IRDY 41 SPK_R
12 STOP 42 LINE_R
13 TRDY 43 GND
14 GND 44 DOCK_LG
15 GND 45 GND
16 AD[12] 46 GND
17 AD[13] 47 REQ1
18 GND 48 REQ0
19 GND 49 GNTO
20 CLK1 50 RST
21 AD[0] 51 GND
22 GND 52 AD[23]
23 DOCK_S 53 AD[22]
24 CLK0 54 C/BE2
25 ACVCC 55 AD[20]
26 ACVCC 56 NC
27 ACVCC 57 AD[19]
28 ACVCC 58 FRAME
29 ACVCC 59 AD[17]
30 CRTHSYNC 60 GND
Continued

Compaq Armada 1700 Specifications

General

Brand	Compaq
Model	Armada 1700
Category	Laptop
Language	English
